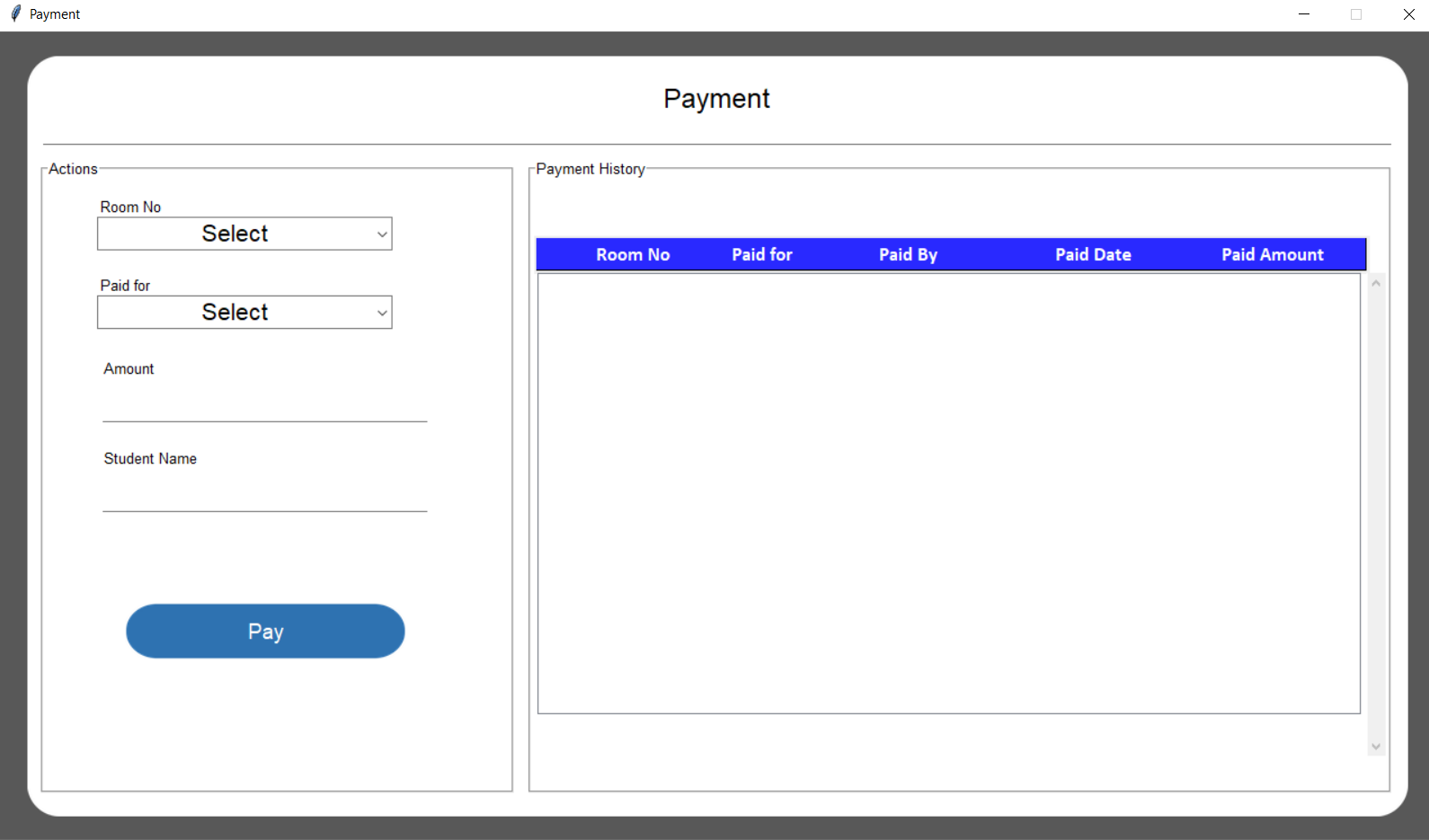

Payment
self.root = tk.Toplevel()
self.root.title("Payment")
self.root.configure(bg="#585858")
self.root.resizable(width=0, height=0)
win_width = 1280
print(1024 * 56.25 / 100)
win_height = int(1280 * 56.25 / 100)
self.root.geometry(str(win_width) + "x" + str(win_height))
# Get screen size
screen_width = self.root.winfo_screenwidth()
screen_height = self.root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
self.width = win_width * 96 / 100
self.height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(self.root, self.width, self.height, padding, cornerradius, self.color,
"#585858")
bg_canvas.place(width=self.width, height=self.height, x=win_width / 2 - self.width / 2,
y=win_height / 2 - self.height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.width = width
self.height = height
self.padding = padding
self.cornerradius = cornerradius
self.color = color
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b, anchor=NW)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(self.root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
# Add Heading Name
add_heading_label(self.base_frame, self.color, 12, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Payment", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size + 6))
label_heading.place(width=width * 90 / 100, height=height * 7 / 100, x=width * 5 / 100, y=height * 0.5 / 100)
# Add line
add_line_border(self.base_frame, self.color, self.height, self.width)
def add_line_border(base_frame, color, height, width):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 10 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
button_font = add_action_frame(self.base_frame, self.color, self.height, self.width)
def add_action_frame(base_frame, color, height, width):
afw = width * 0.35
afh = height * 0.87
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 6)
label_frame_action = LabelFrame(base_frame, text="Actions", font=button_font, pady=afw * 2 / 100,
padx=afw * 2 / 100, bg=color)
label_frame_action.place(width=afw, height=afh, x=0, y=height * 0.12)
return button_font
add_search_frame(self.base_frame, button_font, self.color, self.height, self.width)
def add_search_frame(base_frame, button_font, color, height, width):
sfw = width * 0.638
sfh = height * 0.87
label_frame_search = LabelFrame(base_frame, text="Payment History", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_search.place(width=sfw, height=sfh, x=width * 0.36, y=height * 0.12)
Now we created UI in Action Frame.
self.room_no_var = tk.StringVar()
room_list_no = ["Select"]
db = Util.connect_db()
cursor = db.cursor()
cursor.execute("SELECT * FROM room ")
sql_output = cursor.fetchall()
for data in sql_output:
# room_list_no.append(data[0])
room_list_no.append(data[0])
# print(room_list_no)
self.label_heading = Label(self.base_frame, text="Room No", anchor=CENTER, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 6))
self.label_heading.place(x=50, y=110)
self.room_no = ttk.Combobox(self.base_frame, state="readonly", justify="center",
textvariable=self.room_no_var,
font=("Lucida Grande", AppConstant.FONT_SIZE))
self.room_no.config(values=room_list_no)
self.room_no.place(x=50, y=130)
self.room_no.current(0)
self.room_number = None
self.room_no.bind("<>", self.get_room_data)
self.label_month = Label(self.base_frame, text="Paid for", anchor=CENTER, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 6))
self.label_month.place(x=50, y=180)
self.month_entry_var = tk.StringVar()
self.month_entry = ttk.Combobox(self.base_frame, state="readonly", justify="center",
textvariable=self.month_entry_var,
font=("Lucida Grande", AppConstant.FONT_SIZE))
self.month_entry['values'] = (
"Select", "January", "February", "March", "April", "May", "June", "July",
"August", "September", "October", "November", "December")
self.month_entry.current(0)
self.month_entry.place(x=50, y=200)
self.room_rent = CustomEntrySimple(self.base_frame, 300, 60, ("Lucida Grande", AppConstant.FONT_SIZE - 6),
self.color,
"Amount")
self.room_rent.place(x=50, y=260)
self.std_id = CustomEntrySimple(self.base_frame, 300, 60, ("Lucida Grande", AppConstant.FONT_SIZE - 6),
self.color,
"Student Name")
self.std_id.place(x=50, y=340)
self.std_id.entry.config(state="normal")
self.pay_button = RoundedButton(self.base_frame, 250, 130 / 2.56, self.color, "images/button3.png",
"Pay",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=self.pay_button_click)
self.pay_button.place(x=75, y=self.height * 0.73)
class CustomEntrySimple(tk.Canvas):
def __init__(self, parent, width, height, font, color, text):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=color)
self.width = width
self.height = height
self.color = color
self.create_text(6, 5, anchor=W, font=font, text=text, fill="#000000")
self.create_line(5, height - 8, width - 5, height - 8, fill="#808080")
frame = Frame(parent,width=width * 95 / 100, height=height * 50 / 100, bg=color)
self.entry = Entry(frame, bg=color, bd=0, highlightthickness=0, font=font)
self.entry.place(relwidth=1, relheight=1, x=0, y=0)
self.create_window(6, height / 2 - (height * 50 / 100) / 2, anchor=NW, window=frame)
self.update()
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
Here create UI for History table.
style = ttk.Style()
# style.element_create("Custom.Treeheading.border", "from", "default")
style.layout("Custom.Treeview.Heading", [
("Custom.Treeheading.cell", {'sticky': 'nswe'}),
("Custom.Treeheading.border", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.padding", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.image", {'side': 'right', 'sticky': ''}),
("Custom.Treeheading.text", {'sticky': 'we'})
]})
]}),
])
# style.configure("Custom.Treeview.Heading", background="blue", foreground="red", relief="flat")
style.map("Custom.Treeview.Heading", relief=[('active', 'groove'), ('pressed', 'sunken')])
style.configure("Custom.Treeview", highlightthickness=0, bd=0, font=('Calibri', 11), rowheight=30)
self.table_heading()
self.tree = ttk.Treeview(self.base_frame, height=13, show='tree', style="Custom.Treeview")
self.tree.tag_configure('odd', background='#DFEBF6', foreground="#000000", )
self.tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.tree.place(x=self.width / 2 - 160, y=180)
self.tree["columns"] = "1", "2", "3", "4", "5"
self.tree.column("#1", width=120)
self.tree.column("#0", width=0)
self.tree.column("#2", width=110)
self.tree.column("#3", width=160)
self.tree.column("#4", width=180)
self.tree.column("#5", width=160)
vsb = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.tree.yview)
vsb.place(x=self.width - 24, y=180, height=430)
self.tree.configure(yscrollcommand=vsb.set)
self.tree.column("#1", anchor=tk.CENTER)
self.tree.column("#2", anchor=tk.CENTER)
self.tree.column("#3", anchor=tk.CENTER)
self.tree.column("#4", anchor=tk.CENTER)
self.tree.column("#5", anchor=tk.CENTER)
self.tree.heading("#1", text="Student Id", anchor=tk.CENTER)
self.tree.heading("#2", text="Name")
self.tree.heading("#3", text="Contact No")
self.tree.heading("#4", text="Email Id")
self.tree.heading("#5", text="Address")
# self.tree.bind('<>', self.on_tree_click)
self.root.attributes('-alpha', 0.0)
Util.center(self.root)
self.root.attributes('-alpha', 1.0)
We have created our own heading for table, lets configure it.
def table_heading(self):
heading_y = 150
bg_color = "#2929ff"
canvas = Canvas(self.base_frame, width=740, height=30)
canvas.create_rectangle(0, 0, 740, 30, fill=bg_color)
canvas.place(x=self.width / 2 - 163, y=heading_y - 3)
room_no_label = Label(self.base_frame, text="Room No",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
room_no_label.place(x=self.width / 2 - 130, y=heading_y, width=110)
room_no_label.configure(anchor="center")
paid_for_label = Label(self.base_frame, text="Paid for",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
paid_for_label.place(x=self.width / 2 - 10, y=heading_y, width=100)
paid_for_label.configure(anchor="center")
paid_by_label = Label(self.base_frame, text="Paid By",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
paid_by_label.place(x=self.width / 2 + 100, y=heading_y, width=140)
paid_by_label.configure(anchor="center")
paid_date_label = Label(self.base_frame, text="Paid Date",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
paid_date_label.place(x=self.width / 2 + 265, y=heading_y, width=140)
paid_date_label.configure(anchor="center")
paid_amount_label = Label(self.base_frame, text="Paid Amount",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
paid_amount_label.place(x=self.width / 2 + 425, y=heading_y, width=140)
paid_amount_label.configure(anchor="center")
Here the logic of Pay button click.
def pay_button_click(self):
var = ""
room_no = self.room_no_var.get()
month = self.month_entry_var.get()
paid_amount = self.room_rent.entry.get()
std_id = self.std_id.entry.get()
paid_date_time = datetime.datetime.today().strftime('%Y-%m-%d')
is_month_entered = False
if self.month_entry_var.get() == "Select":
var += "Select Month, "
else:
month = self.month_entry_var.get()
is_month_entered = True
if is_month_entered:
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute(
'INSERT INTO rent_payment(room_number, paid_for, paid_by, paid_date_time, paid_amount) VALUES(?,?,?,?,?)',
(room_no, month, std_id, paid_date_time, paid_amount))
conn.commit()
messagebox.showinfo("Success", "Payment successful")
self.tree.delete(*self.tree.get_children())
cursor.execute(
"SELECT room_number, paid_for, paid_by, paid_date_time, paid_amount FROM rent_payment WHERE room_number = ?",
(self.room_number,))
self.sql_output = cursor.fetchall()
for data in self.sql_output:
self.tree.insert('', 'end', values=data)
self.std_id.entry.delete(0, END)
self.room_rent.entry.delete(0, END)
self.month_entry.current(0)
self.room_no.current(0)
else:
print(var)
messagebox.showerror("showerror", var)
At last we will manage closing of window
def on_closing():
root.destroy()
args[0].deiconify()
root.protocol("WM_DELETE_WINDOW", on_closing)
Programmer Mirta is for learning and training. Projects might be simple to improve learning. Projects are constantly reviewed to avoid errors, but we cannot assure full correctness of all content. While using Programmer Mitra, you agree to have read and accepted our terms of use, cookie and privacy policy.
Copyright 2021 by Programmer Mitra. All Rights Reserved.
