Login Page

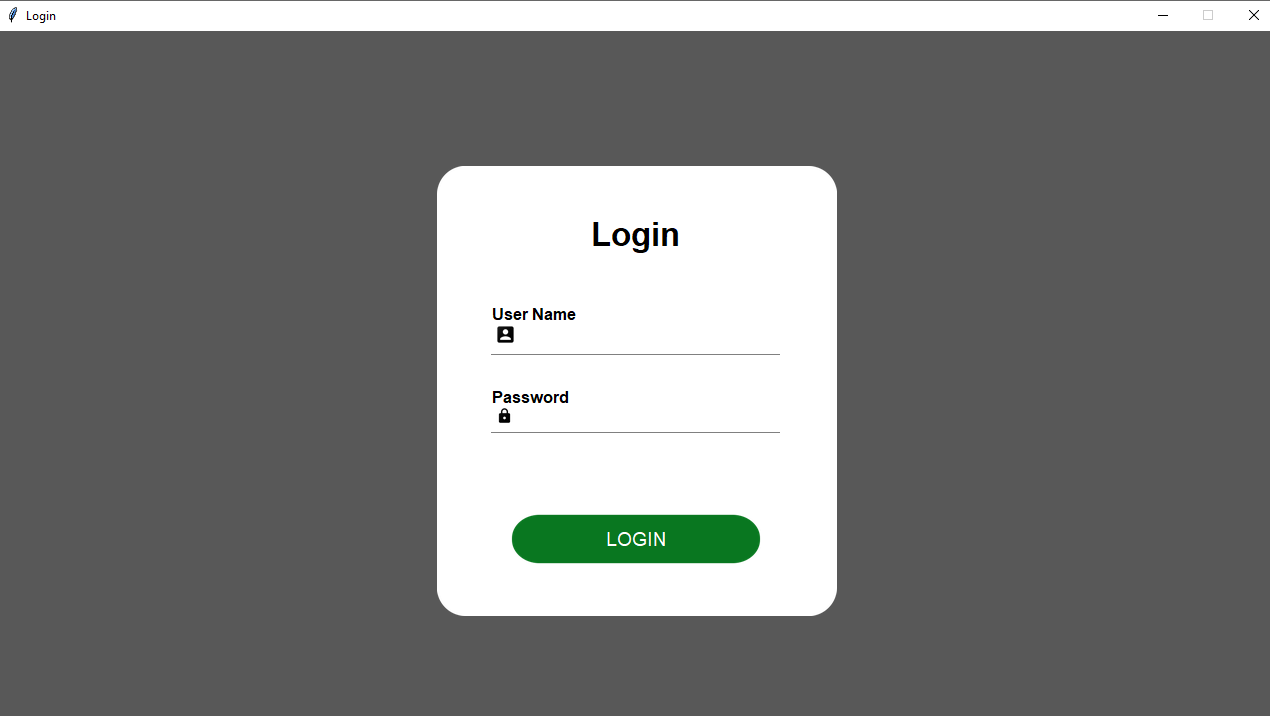

Above UI we are going to create by Tkinter for login Staff in our Hostel Management System desktop application. For that first we create a window and configure its title, size and color. Here we are creating a window at Top Level so we can add this window at the top of any other window.


    root = self.winfo_toplevel()
    root.title("Login")
    root.configure(bg="#585858")
    root.resizable(width=0, height=0)
    win_width = 1280
    print(1280 * 56.25 / 100)
    win_height = int(1280 * 56.25 / 100)
    root.geometry(str(win_width) + "x" + str(win_height))

    root.attributes('-alpha', 0.0)
    Util.center(root)
    root.attributes('-alpha', 1.0)



After creation of window, we will add a canvas background.


    bg_canvas = RoundBackgroundFrame(root, width, height, padding, cornerradius, color, "#585858")
    bg_canvas.place(width=width, height=height, x=win_width / 2 - width / 2, y=win_height / 2 - height / 2)

    class RoundBackgroundFrame(tk.Canvas):

        def __init__(self, parent, width, height, padding, cornerradius, color, bg):
            tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
            self.width = width
            self.height = height
            self.padding = padding
            self.cornerradius = cornerradius
            self.color = color

            original = Image.open("images/corner.png")
            resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
            self.image_r_t = ImageTk.PhotoImage(resized)

            original = original.rotate(90, expand=0)
            resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
            self.image_l_t = ImageTk.PhotoImage(resized)

            original = original.rotate(90, expand=0)
            resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
            self.image_l_b = ImageTk.PhotoImage(resized)

            original = original.rotate(90, expand=0)
            resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
            self.image_r_b = ImageTk.PhotoImage(resized)

            self.shape(width, height, padding, cornerradius, color)
            (x0, y0, x1, y1) = self.bbox("all")
            width = (x1 - x0)
            height = (y1 - y0)
            self.configure(width=width, height=height)

        def shape(self, width, height, padding, cornerradius, color):
            self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
                                padding + cornerradius, padding, width - padding - cornerradius, padding,
                                width - padding, cornerradius + padding, width - padding,
                                height - cornerradius - padding, width - padding - cornerradius, height - padding,
                                padding + cornerradius, height - padding), fill=color, outline=color)

            self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
            self.create_image(0, 0, image=self.image_l_t, anchor=NW)
            self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
            self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b, anchor=NW)



Once your window is created with custom background, we will create a frame with some reduced dimensions.


    width = width * 92 / 100
    height = height * 92 / 100
    base_frame = Frame(width=width, height=height, bg=color)
    bg_canvas.create_window(width*4/100, height * 4/100, anchor=NW, window=base_frame)

    # Add Heading Name

    label_login = Label(base_frame, text="Login", font=font.Font(family="Lucida Grande", size=25, weight='bold'), bg=color)
    label_login.place(width=width - 20, x=10, y=height*0.07)

    self.ce_username = CustomEntry(base_frame, 300, 55, 10, 2, color, "User Name", "images/ic_user_black.png")
    self.ce_username.place(x=width / 2 - 150, y=height*0.30)

    self.ce_pwd = CustomEntryPWD(base_frame, 300, 50, 10, 2, color, "Password", "images/ic_lock_black.png")
    self.ce_pwd.place(x=width / 2 - 150, y=height*0.50)

    button = RoundedButton(base_frame, 250, 130 / 2.56, color, "images/button3.png", "LOGIN", font=("Lucida Grande", 14),
                               command=lambda: self.login_click(root))
    button.place(x=width/2 - 250/2, y=height*0.80)



Functionality of login click.


def login_click(self, root):

    db = Util.connect_db()
    cursor = db.cursor()

    staff_id = self.ce_username.entry.get()
    staff_pass = self.ce_pwd.entry.get()

    key = "admin_id"
    cursor.execute('SELECT value FROM system_setting WHERE key IS ?', (key,))
    rows = cursor.fetchone()

    admin_id = rows[0]

    key = "admin_password"
    cursor.execute('SELECT value FROM system_setting WHERE key IS ?', (key,))
    rows = cursor.fetchone()
    admin_pwd = rows[0]
    # MAX_DAYS_ALLOWED_integer = int(admin_pwd)

    if staff_id == admin_id and staff_pass == admin_pwd:

        # AppConstant.STAFF_ID = staff_id
        AppConstant.STAFF_NAME = staff_id

        key_is_logined = "is_logined"
        cursor.execute("UPDATE system_setting SET value = ? WHERE key = ?",
                       (TRUE, key_is_logined,))

        db.commit()

        navigate_to_dashboard(root)

        self.ce_username.entry.delete(0, 'end')
        self.ce_pwd.entry.delete(0, 'end')

    else:
        messagebox.showerror(title="Error", message="Incorrect Id or Password")
