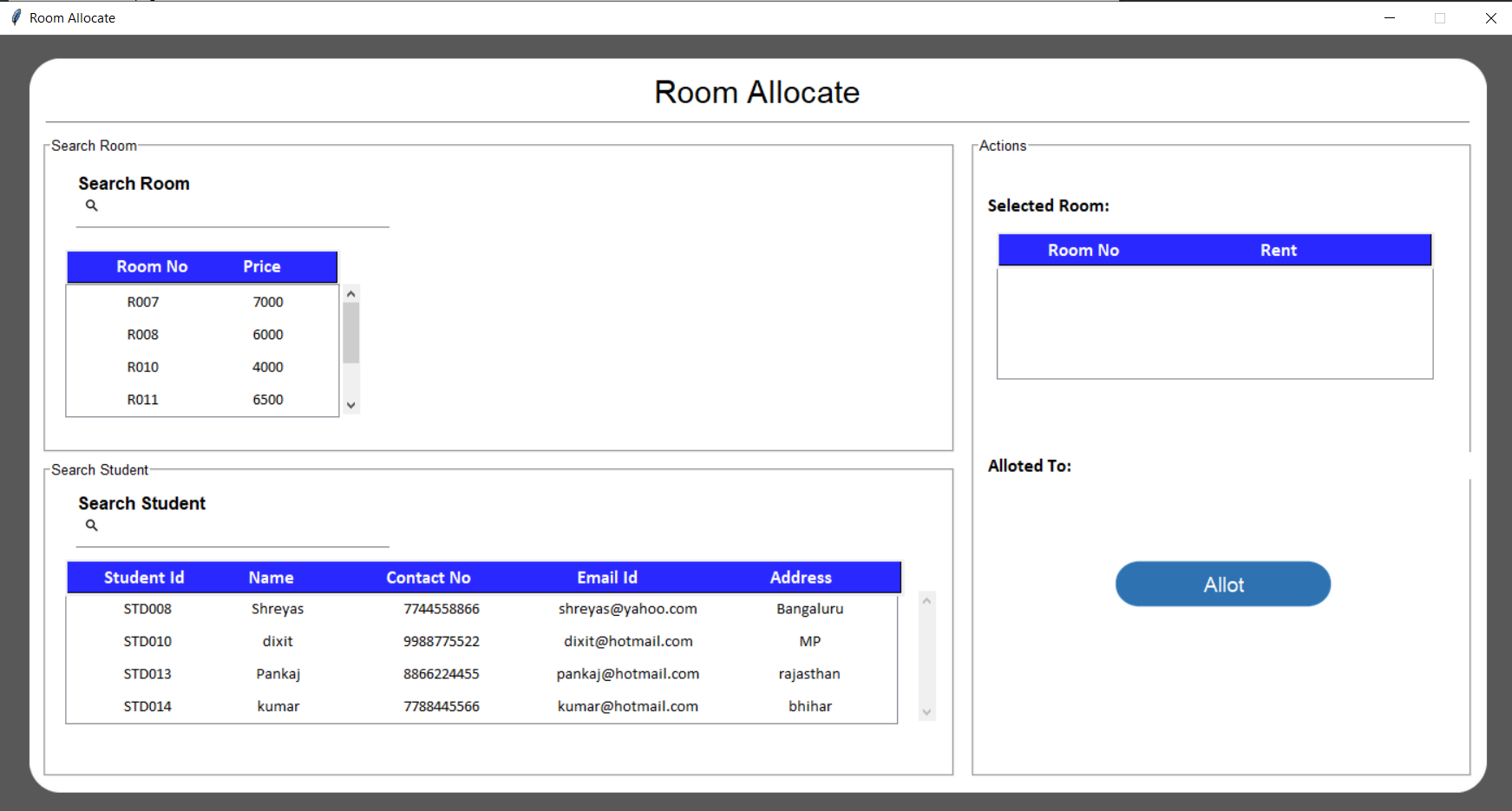

Allot Room
self.root = tk.Toplevel()
self.root.title("Room Allocate")
self.root.configure(bg="#585858")
self.root.resizable(width=0, height=0)
win_width = 1400
print(1280 * 56.25 / 100)
win_height = int(1280 * 56.25 / 100)
self.root.geometry(str(win_width) + "x" + str(win_height))
# Get screen size
screen_width = self.root.winfo_screenwidth()
screen_height = self.root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
self.width = win_width * 96 / 100
self.height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(self.root, self.width, self.height, padding, cornerradius, self.color,
"#585858")
bg_canvas.place(width=self.width, height=self.height, x=win_width / 2 - self.width / 2,
y=win_height / 2 - self.height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.width = width
self.height = height
self.padding = padding
self.cornerradius = cornerradius
self.color = color
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b, anchor=NW)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(self.root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
# Add Heading Name
add_heading_label(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Room Allocate", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size + 6))
label_heading.place(width=width * 90 / 100, height=height * 5 / 100, x=width * 5 / 100, y=height * 0.2 / 100)
# Add line
add_line_border(self.base_frame, self.color, self.height, self.width)
def add_line_border(base_frame, color, height, width):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 7 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
# Add Button Font
button_font = add_action_frame(self.base_frame, self.color, self.height, self.width)
def add_action_frame(base_frame, color, height, width):
afw = width * 0.35
afh = height * 0.91
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 6)
label_frame_action = LabelFrame(base_frame, text="Actions", font=button_font, pady=afw * 2 / 100,
padx=afw * 2 / 100, bg=color)
label_frame_action.place(width=afw, height=afh, x=width * 0.65, y=height * 0.09)
return button_font
# Add room search
add_room_search_frame(self.base_frame, button_font, self.color, self.height, self.width)
def add_room_search_frame(base_frame, button_font, color, height, width):
sfw = width * 0.638
sfh = height * 0.45
label_frame_search = LabelFrame(base_frame, text="Search Room", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_search.place(width=sfw, height=sfh, x=0, y=height * 0.09)
# Add Student search
add_student_search_frame(self.base_frame, button_font, self.color, self.height, self.width)
def add_student_search_frame(base_frame, button_font, color, height, width):
sfw = width * 0.638
sfh = height * 0.45
label_frame_search = LabelFrame(base_frame, text="Search Student", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_search.place(width=sfw, height=sfh, x=0, y=height * 0.55)
self.search_room_var = CustomEntry(self.base_frame, 300, 55, 10, 2, self.color, "Search Room",
"images/ic_search.png")
self.search_room_var.place(x=25, y=95)
self.search_room_var.entry.bind('', self.search_room)
Here's the logic to search Room in table
def search_room(self, *arg):
if self.search_book_var.entry.get() != "":
self.tree.delete(*self.tree.get_children())
conn = Util.connect_db()
cursor = conn.cursor()
status = "vacant"
cursor.execute("SELECT * FROM `room` WHERE status LIKE ? AND (`room_no` LIKE ? OR `room_rent` LIKE ?)",
(status, '%' + str(self.search_book_var.entry.get()) + '%',
'%' + str(self.search_book_var.entry.get()) + '%'))
sql_output = cursor.fetchall()
for data in sql_output:
self.tree.insert('', 'end', values=data, tags=('even',))
else:
self.tree.delete(*self.tree.get_children())
self.reset_room()
def reset_room(self):
self.get_room_data()
class Util:
@staticmethod
def connect_db():
db = None
try:
db = sql.connect("hostelmanagement.db")
return db
except sql.Error as error:
print("Failed to insert data into sqlite table", error)
Fetch data from database and show it in table form with the use of "Treeview" of Tkinter.
style = ttk.Style()
# style.element_create("Custom.Treeheading.border", "from", "default")
style.layout("Custom.Treeview.Heading", [
("Custom.Treeheading.cell", {'sticky': 'nswe'}),
("Custom.Treeheading.border", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.padding", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.image", {'side': 'right', 'sticky': ''}),
("Custom.Treeheading.text", {'sticky': 'we'})
]})
]}),
])
style.configure("Custom.Treeview", highlightthickness=0, bd=0, font=('Calibri', 11), rowheight=30)
self.room_table_heading()
self.tree = ttk.Treeview(self.base_frame, height=4, columns=("c1", "c2"),
selectmode="extended", show='tree', style="Custom.Treeview")
self.tree.tag_configure('odd', background='#DFEBF6', foreground="#000000", )
self.tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.tree.place(x=20, y=195)
self.room_selected = False
self.selected_room_no = None
self.tree.bind('<>', self.on_select_room)
vsby = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.tree.yview)
vsby.place(x=275, y=195, height=120)
self.tree.configure(yscrollcommand=vsby.set)
self.tree.column("#0", width=0)
self.tree.column("#1", width=100)
self.tree.column("#2", width=150)
self.tree.column("#1", anchor=tk.CENTER)
self.tree.column("#2", anchor=tk.CENTER)
self.tree.heading("#1", text="Room Number", anchor=tk.CENTER)
self.tree.heading("#2", text="Price")
# ============Selected Room=======================
selected_room_label = ttk.Label(self.base_frame, text="Selected Room:", width=15,
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background='white',
foreground="black")
selected_room_label.place(x=self.width / 2 + 210, y=110)
self.selected_room_tree = ttk.Treeview(self.base_frame, height=5, show="tree")
self.selected_room_tree.place(x=self.width / 2 + 220, y=180)
self.selected_room_tree["columns"] = "1", "2"
self.selected_room_tree.column("#0", width=0)
self.selected_room_tree.column("#1", width=100)
self.selected_room_tree.column("#2", width=300)
self.selected_room_tree.column("#1", anchor=tk.CENTER)
self.selected_room_tree.column("#2", anchor=tk.CENTER)
self.selected_room_table_heading()
We have created our own heading for Room table, lets configure it.
def room_table_heading(self):
heading_y = 165
bg_color = "#2929ff"
canvas = Canvas(self.base_frame, width=250, height=30)
canvas.create_rectangle(0, 0, 250, 30, fill=bg_color)
canvas.place(x=20, y=heading_y - 2)
room_no_label = Label(self.base_frame, text="Room No",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
room_no_label.place(x=50, y=heading_y, width=100)
room_no_label.configure(anchor="center")
room_price_label = Label(self.base_frame, text="Price",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
room_price_label.place(x=152, y=heading_y, width=100)
room_price_label.configure(anchor="center")
Here's the logic to get room data and show in table
self.get_room_data()
def get_room_data(self):
db = Util.connect_db()
cursor = db.cursor()
status = "vacant"
cursor.execute("SELECT room_no, room_rent FROM room WHERE status = ?", (status,))
sql_output = cursor.fetchall()
self.search_student_var = CustomEntry(self.base_frame, 300, 55, 10, 2, self.color, "Search Student",
"images/ic_search.png")
self.search_student_var.place(x=25, y=self.height * 0.60)
self.search_student_var.entry.bind('', self.search_student)
Here's the logic to search data in table
def search_student(self, *arg):
if self.search_student_var.entry.get() != "":
self.student_tree.delete(*self.student_tree.get_children())
conn = Util.connect_db()
cursor = conn.cursor()
room_alloted = False
cursor.execute(
"SELECT * FROM `student` WHERE room_alloted LIKE ? AND (`student_id` LIKE ? OR `student_name` LIKE ?)",
(room_alloted, '%' + str(self.search_student_var.entry.get()) + '%',
'%' + str(self.search_student_var.entry.get()) + '%'))
sql_output = cursor.fetchall()
for data in sql_output:
self.student_tree.insert('', 'end', values=data)
else:
self.student_tree.delete(*self.student_tree.get_children())
self.reset_student()
def reset_student(self):
self.get_student_data()
Fetch data from database and show it in table form with the use of "Treeview" of Tkinter.
self.student_tree = ttk.Treeview(self.base_frame, height=4, columns=("c1", "c2", "c3", "c4", "c5"),
show='tree', style="Custom.Treeview")
self.student_tree.tag_configure('odd', background='#DFEBF6', foreground="#000000", )
self.student_tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.student_tree.place(x=20, y=self.height * 0.735)
vsb = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.student_tree.yview)
vsb.place(x=self.width / 2 + 147, y=self.height * 0.735, height=120)
self.student_tree.configure(yscrollcommand=vsb.set)
self.student_tree.column("#0", width=0)
self.student_tree.column("#1", width=110)
self.student_tree.column("#2", width=130)
self.student_tree.column("#3", width=170)
self.student_tree.column("#4", width=175)
self.student_tree.column("#5", width=180)
self.student_tree.column("#1", anchor=tk.CENTER)
self.student_tree.column("#2", anchor=tk.CENTER)
self.student_tree.column("#3", anchor=tk.CENTER)
self.student_tree.column("#4", anchor=tk.CENTER)
self.student_tree.column("#5", anchor=tk.CENTER)
self.student_table_heading()
self.student_tree.bind('<>', self.on_select_student)
We have created our own heading for Student table, lets configure it.
def student_table_heading(self):
heading_y = self.height * 0.695
bg_color = "#2929ff"
canvas = Canvas(self.base_frame, width=770, height=30)
canvas.create_rectangle(0, 0, 770, 30, fill=bg_color)
canvas.place(x=20, y=heading_y - 3)
student_id_label = Label(self.base_frame, text="Student Id",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
student_id_label.place(x=38, y=heading_y, width=110)
student_id_label.configure(anchor="center")
student_name_label = Label(self.base_frame, text="Name",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
student_name_label.place(x=160, y=heading_y, width=100)
student_name_label.configure(anchor="center")
student_contactno_label = Label(self.base_frame, text="Contact No",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
student_contactno_label.place(x=265, y=heading_y, width=180)
student_contactno_label.configure(anchor="center")
student_email = Label(self.base_frame, text="Email Id",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
student_email.place(x=440, y=heading_y, width=160)
student_email.configure(anchor="center")
student_adds_label = Label(self.base_frame, text="Address",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
student_adds_label.place(x=570, y=heading_y, width=160)
student_adds_label.configure(anchor=tk.E)
Here's the logic to get student data and show in table
self.get_student_data()
def get_student_data(self):
db = Util.connect_db()
cursor = db.cursor()
is_room_alloted = False
cursor.execute('SELECT * FROM student where room_alloted = ?',(is_room_alloted,))
sql_output = cursor.fetchall()
for data in sql_output:
self.student_tree.insert('', 'end', values=data)
selected_room_label = ttk.Label(self.base_frame, text="Selected Room:", width=15,
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background='white',
foreground="black")
selected_room_label.place(x=self.width / 2 + 210, y=110)
self.selected_room_tree = ttk.Treeview(self.base_frame, height=5, show="tree")
self.selected_room_tree.place(x=self.width / 2 + 220, y=180)
self.selected_room_tree["columns"] = "1", "2"
self.selected_room_tree.column("#0", width=0)
self.selected_room_tree.column("#1", width=100)
self.selected_room_tree.column("#2", width=300)
self.selected_room_tree.column("#1", anchor=tk.CENTER)
self.selected_room_tree.column("#2", anchor=tk.CENTER)
self.selected_room_table_heading()
selected_room_label = ttk.Label(self.base_frame, text="Alloted To:", width=15,
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background='white',
foreground="black")
selected_room_label.place(x=self.width / 2 + 210, y=350)
We have created our own heading for Selected Room Table, lets configure it.
def selected_room_table_heading(self):
heading_y = 150
bg_color = "#2929ff"
canvas = Canvas(self.base_frame, width=400, height=30)
canvas.create_rectangle(0, 0, 400, 30, fill=bg_color)
canvas.place(x=self.width / 2 + 220, y=heading_y - 3)
room_no_label = Label(self.base_frame, text="Room No",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
room_no_label.place(x=self.width / 2 + 250, y=heading_y, width=100)
room_no_label.configure(anchor="center")
room_rent_label = Label(self.base_frame, text="Rent",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
room_rent_label.place(x=self.width / 2 + 430, y=heading_y, width=100)
room_rent_label.configure(anchor="center")
Now Create a "ALLOT" Button for Alloting the Room to the student.
self.submit_button = RoundedButton(self.base_frame, 200, 130 / 3.0, self.color, "images/button3.png",
"Allot",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=self.on_room_allot_click)
self.submit_button.place(x=self.width * 0.75, y=450)
class RoundedButton(tk.Canvas):
def __init__(self, parent, width, height, bg, icon_path, text, font, command=None):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.command = command
self.width = width
self.height = height
self.text = text
self.font = font
original = Image.open(icon_path)
resized = original.resize((int(width), int(height)), Image.ANTIALIAS)
self.image = ImageTk.PhotoImage(resized)
self.shape(width, height)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
self.bind("", self._on_press)
self.bind("", self._on_release)
def shape(self, width, height):
self.create_image(0, 0, image=self.image, anchor=NW)
self.create_text(width / 2, height / 2, anchor=CENTER, font=self.font, text=self.text, fill="#FFFFFF")
def shape_press(self, width, height):
self.create_image(0, 0, image=self.image, anchor=NW)
self.create_text(width / 2, height / 2, anchor=CENTER, font=self.font, text=self.text, fill="#000000")
def _on_press(self, event):
self.configure(relief="sunken")
self.delete("all")
# self.update()
self.shape_press(self.width, self.height)
def _on_release(self, event):
self.configure(relief="raised")
self.delete("all")
self.shape(self.width, self.height)
if self.command is not None:
self.command()
Here the logic on Click "ALLOT" button
def on_room_allot_click(self):
var = "Select Student and Room, "
if self.selected_student_id is not None and self.room_selected:
self.insert_into_allotment_table(self.selected_student_id, self.selected_room_no)
else:
print(var)
messagebox.showerror("showerror", var)
def insert_into_allotment_table(self, student_id, room_no):
status = "allotted"
s_no = None
room_number = room_no
allotted_to = student_id
allotment_date = datetime.datetime.today().strftime('%Y-%m-%d')
vacant_date = None
db = Util.connect_db()
cursor = db.cursor()
cursor.execute("INSERT INTO room_alloted VALUES (?,?,?,?,?)", (
s_no, room_number, allotted_to, allotment_date, vacant_date))
db.commit()
messagebox.showinfo("Success", "Room has been Allotted successfully")
cursor.execute(
"UPDATE room SET status = ? WHERE room_no = ?",
(status, room_number,))
db.commit()
cursor.execute(
"UPDATE student SET room_alloted = ? WHERE student_id = ?",
(True, allotted_to,))
db.commit()
self.tree.delete(*self.tree.get_children())
self.student_tree.delete(*self.student_tree.get_children())
self.selected_room_tree.delete(*self.selected_room_tree.get_children())
self.selected_student_label.config(text="")
self.selected_student_id = None
self.get_room_data()
self.get_student_data()
At last we will manage closing of window
def on_closing():
self.root.destroy()
args[0].deiconify()
self.root.protocol("WM_DELETE_WINDOW", on_closing)
Programmer Mirta is for learning and training. Projects might be simple to improve learning. Projects are constantly reviewed to avoid errors, but we cannot assure full correctness of all content. While using Programmer Mitra, you agree to have read and accepted our terms of use, cookie and privacy policy.
Copyright 2021 by Programmer Mitra. All Rights Reserved.
