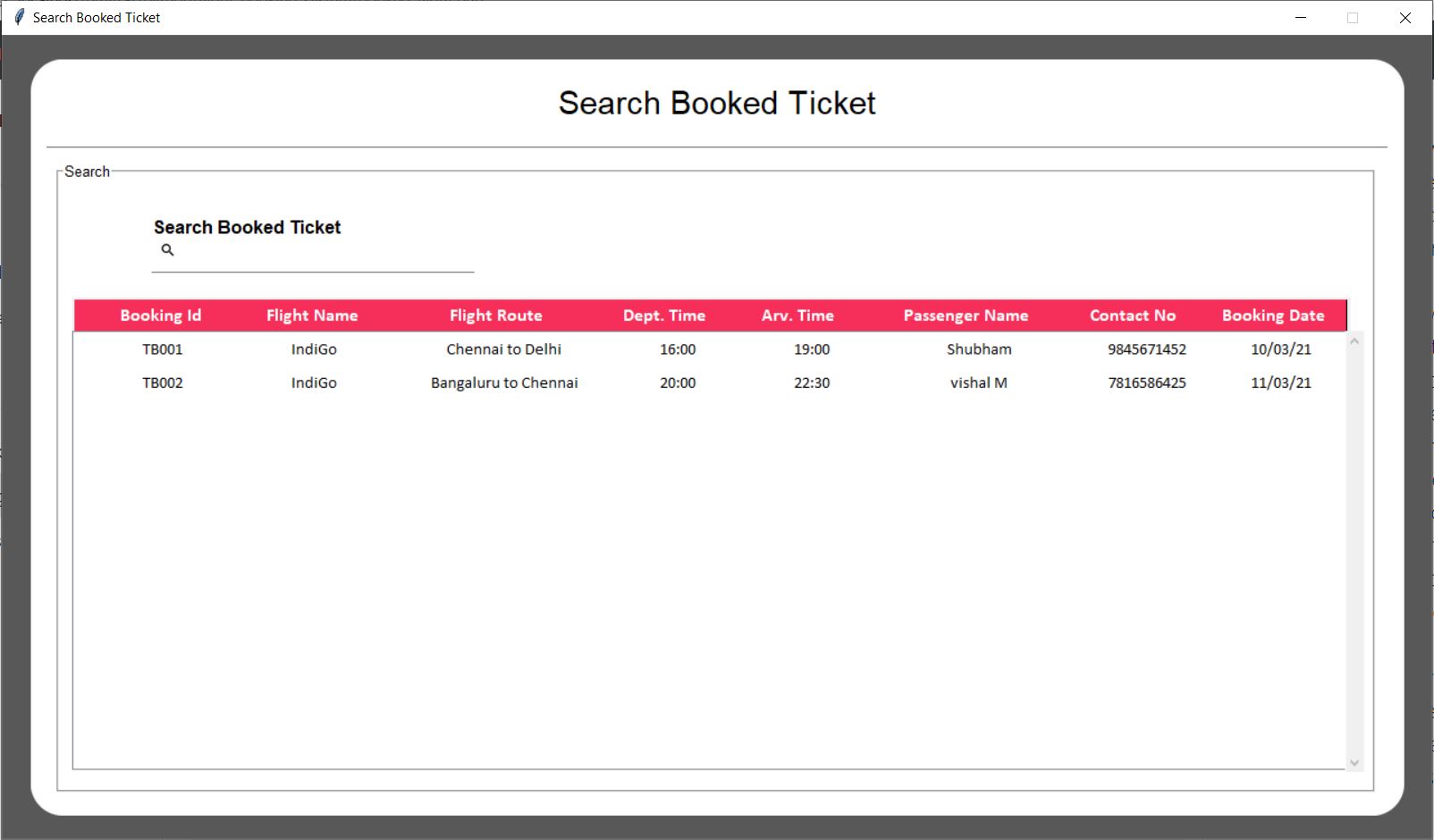

Search Booked Ticket
root = tk.Toplevel()
# root = tk.Tk()
root.title("Search Booked Ticket")
root.configure(bg="#585858")
root.resizable(width=0, height=0)
win_width = 1280
win_height = int(1280 * 56.25 / 100)
root.geometry(str(win_width) + "x" + str(win_height))
# Get screen size
screen_width = root.winfo_screenwidth()
screen_height = root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
self.width = win_width * 96 / 100
self.height = win_height * 94 / 100
cornerradius = 40
padding = 0
self.color = "#FFFFFF"
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(self.root, self.width, self.height, padding, cornerradius, self.color,"#585858")
bg_canvas.place(width=self.width, height=self.height, x=win_width / 2 - self.width / 2, y=win_height / 2 - self.height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b,anchor=NW)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(self.root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
# Add Heading Name
add_heading_label(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Booked Ticket", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size + 4))
label_heading.place(width=width * 90 / 100, height=height * 5 / 100, x=width * 5 / 100, y=height * 0.3 / 100)
# Add line
add_line_border(self.base_frame, self.color, self.height, self.width)
def add_line_border(base_frame, color, height, width):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 10 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
add_search_frame(self.base_frame, ("Lucida Grande", AppConstant.FONT_SIZE - 6), self.color, self.height,self.width)
def add_search_frame(base_frame, button_font, color, height, width):
sfw = width * 0.98
sfh = height * 0.87
label_frame_search = LabelFrame(base_frame, text="Search", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_search.place(width=sfw, height=sfh, x=11, y=height * 0.12)
So we are done with all frame and background UI. Now we will add all the serach box.
# Search table
self.ce_booking_var = CustomEntry(self.base_frame, 300, 55, 10, 2, self.color, "Search Booked Ticket",
"images/ic_search.png")
self.ce_booking_var.place(x=91, y=self.height * 0.20)
self.booking_var = tk.StringVar
self.ce_booking_var.entry.bind('', self.search_booking)
def search_booking(self, *arg):
# self.hide_edit_button()
if self.ce_booking_var.entry.get() != "":
self.tree.delete(*self.tree.get_children())
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute("SELECT * FROM `booking` WHERE `passenger_id` LIKE ? OR `booking_id` LIKE ? OR `flight_no` LIKE ?",
('%' + str(self.ce_booking_var.entry.get()) + '%',
'%' + str(self.ce_booking_var.entry.get()) + '%', '%' + str(self.ce_booking_var.entry.get()) + '%'))
fetch = cursor.fetchall()
count = 0
booked_ticket_data_list = []
for data in fetch:
cursor.execute(
'SELECT flight_name, route, departure_timing, arrival_timing FROM flight_detail where flight_no IS ?',
(data[1],))
sql_output_two = cursor.fetchall()
print(sql_output_two)
cursor.execute(
'SELECT passenger_name, contact_number FROM passenger_detail where passenger_id IS ?',
(data[2],))
sql_output_three = cursor.fetchall()
print(sql_output_three)
flight_tuple = (data[0],)
passenger_tuple = (data[3],)
# booked_ticket_data_list.append((flight_tuple))
self.tree.insert('', 'end',
values=flight_tuple + sql_output_two[0] + sql_output_three[0] + passenger_tuple)
print(flight_tuple + sql_output_two[0] + sql_output_three[0] + passenger_tuple)
count += 1
# for data in fetch:
# if count % 2 == 0:
# self.tree.insert('', 'end', values=data, tags=('even',))
# else:
# self.tree.insert('', 'end', values=data, tags=('odd',))
# count = count + 1
# for data in fetch:
# self.tree.insert('', 'end', values=data)
cursor.close()
conn.close()
else:
self.reset_booked_ticket()
def reset_booked_ticket(self):
self.tree.delete(*self.tree.get_children())
self.update_table_data()
class Util:
@staticmethod
def connect_db():
db = None
try:
db = sql.connect("inventry.db")
return db
except sql.Error as error:
print("Failed to insert data into sqlite table", error)
Here is our class CustomEntrySimple:
class CustomEntry(tk.Canvas):
def __init__(self, parent, width, height, cornerradius, padding, color, text, icon_path):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=color)
self.width = width
self.height = height
self.cornerradius = cornerradius
self.padding = padding
self.color = color
original = Image.open(icon_path)
resized = original.resize((int(height * 35 / 100), int(height * 35 / 100)), Image.ANTIALIAS)
self.image = ImageTk.PhotoImage(resized) # Keep a reference, prevent GC
# self.color_text = "white"
self.create_text(6, 7, anchor=W, font=font.Font(family="Lucida Grande", size=12, weight='bold'),
text=text, fill="#000000")
self.create_image(10, height / 2 - self.image.width() / 2, image=self.image, anchor=NW)
self.create_line(5, height - 8, width - 5, height - 8, fill="#808080")
frame = Frame(parent,width=width * 86 / 100, height=height * 50 / 100, bg=color)
# frame.place(x=0, y=0, width=100, height=50)
self.entry = Entry(frame, bg=color, bd=0, highlightthickness=0,
font=font.Font(family="Lucida Grande", size=13, weight='normal'))
self.entry.place(relwidth=1, relheight=1, x=0, y=0)
self.create_window(width - width * 86 / 100 - 5, height / 2 - (height * 50 / 100) / 2, anchor=NW, window=frame)
self.update()
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
# ===========Flight Tree ==============
style = ttk.Style()
# style.element_create("Custom.Treeheading.border", "from", "default")
style.layout("Custom.Treeview.Heading", [
("Custom.Treeheading.cell", {'sticky': 'nswe'}),
("Custom.Treeheading.border", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.padding", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.image", {'side': 'right', 'sticky': ''}),
("Custom.Treeheading.text", {'sticky': 'we'})
]})
]}),
])
# style.configure("Custom.Treeview.Heading", background="blue", foreground="red", relief="flat")
style.map("Custom.Treeview.Heading", relief=[('active', 'groove'), ('pressed', 'sunken')])
style.configure("Custom.Treeview", highlightthickness=0, bd=0, font=('Calibri', 11), rowheight=30)
self.table_heading()
self.tree = ttk.Treeview(self.base_frame, height=13, show='tree', style="Custom.Treeview")
self.tree.tag_configure('odd', background='#fcd9e1', foreground="#000000", )
self.tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.tree.place(x=25, y=230)
self.tree["columns"] = "1", "2", "3", "4", "5", "6", "7", "8"
self.tree.column("#0", width=0)
self.tree.column("#1", width=120)
self.tree.column("#2", width=150)
self.tree.column("#3", width=190)
self.tree.column("#4", width=120)
self.tree.column("#5", width=120)
self.tree.column("#6", width=180)
self.tree.column("#7", width=120)
self.tree.column("#8", width=140)
# count = 0
# for data in self.sql_output:
# if count % 2 == 0:
# self.tree.insert('', 'end', values=data, tags=('even',))
# else:
# self.tree.insert('', 'end', values=data, tags=('odd',))
# count = count + 1
self.get_table_data()
vsb = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.tree.yview)
vsb.place(x=self.width - 40, y=230, height=395)
self.tree.configure(yscrollcommand=vsb.set)
self.tree.column("#1", anchor=tk.CENTER)
self.tree.column("#2", anchor=tk.CENTER)
self.tree.column("#3", anchor=tk.CENTER)
self.tree.column("#4", anchor=tk.CENTER)
self.tree.column("#5", anchor=tk.CENTER)
self.tree.column("#6", anchor=tk.CENTER)
self.tree.column("#7", anchor=tk.CENTER)
self.tree.column("#8", anchor=tk.CENTER)
root.attributes('-alpha', 0.0)
Util.center(root)
root.attributes('-alpha', 1.0)
def get_table_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute('SELECT * FROM booking')
sql_output = cursor.fetchall()
print(sql_output)
count = 0
booked_ticket_data_list = []
booked_ticket_data_list2 = []
for data in sql_output:
cursor.execute(
'SELECT flight_name, route, departure_timing, arrival_timing FROM flight_detail where flight_no IS ?', (data[1],))
sql_output_two = cursor.fetchall()
print(sql_output_two)
cursor.execute(
'SELECT passenger_name, contact_number FROM passenger_detail where passenger_id IS ?',
(data[2],))
sql_output_three = cursor.fetchall()
print(sql_output_three)
flight_tuple = (data[0],)
passenger_tuple = (data[3],)
# booked_ticket_data_list.append((flight_tuple))
self.tree.insert('', 'end', values=flight_tuple + sql_output_two[0] + sql_output_three[0]+passenger_tuple)
print(flight_tuple + sql_output_two[0] + sql_output_three[0]+ passenger_tuple)
count += 1
def update_table_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute('SELECT * FROM booking')
sql_output = cursor.fetchall()
print(sql_output)
count = 0
booked_ticket_data_list = []
booked_ticket_data_list2 = []
for data in sql_output:
cursor.execute(
'SELECT flight_name, route, departure_timing, arrival_timing FROM flight_detail where flight_no IS ?',
(data[1],))
sql_output_two = cursor.fetchall()
print(sql_output_two)
cursor.execute(
'SELECT passenger_name, contact_number FROM passenger_detail where passenger_id IS ?',
(data[2],))
sql_output_three = cursor.fetchall()
print(sql_output_three)
flight_tuple = (data[0],)
passenger_tuple = (data[3],)
# booked_ticket_data_list.append((flight_tuple))
self.tree.insert('', 'end', values=flight_tuple + sql_output_two[0] + sql_output_three[0] + passenger_tuple)
print(flight_tuple + sql_output_two[0] + sql_output_three[0] + passenger_tuple)
count += 1
We have created our own heading for table, lets configure it.
def table_heading(self):
heading_y = 203
bg_color = "#f52f59"
text_color = "#ffffff"
canvas = Canvas(self.base_frame, width=1140, height=30)
canvas.create_rectangle(0, 0, 1140, 30, fill=bg_color)
canvas.place(x=25, y=heading_y - 3)
booking_id_label = Label(self.base_frame, text="Booking Id",
font=('Calibri', AppConstant.FONT_SIZE - 4, 'bold'), background=bg_color,
foreground=text_color)
booking_id_label.place(x=45, y=heading_y, width=120)
booking_id_label.configure(anchor="center")
flight_name_label = Label(self.base_frame, text="Flight Name",
font=('Calibri', AppConstant.FONT_SIZE - 4, 'bold'), background=bg_color,
foreground=text_color)
flight_name_label.place(x=165, y=heading_y, width=150)
flight_name_label.configure(anchor="center")
flight_route_label = Label(self.base_frame, text="Flight Route",
font=('Calibri', AppConstant.FONT_SIZE - 4, 'bold'), background=bg_color,
foreground=text_color)
flight_route_label.place(x=315, y=heading_y, width=180)
flight_route_label.configure(anchor="center")
dept_time_label = Label(self.base_frame, text="Dept. Time",
font=('Calibri', AppConstant.FONT_SIZE - 4, 'bold'), background=bg_color,
foreground=text_color)
dept_time_label.place(x=495, y=heading_y, width=120)
dept_time_label.configure(anchor="center")
ara_time_label = Label(self.base_frame, text="Arv. Time",
font=('Calibri', AppConstant.FONT_SIZE - 4, 'bold'), background=bg_color,
foreground=text_color)
ara_time_label.place(x=615, y=heading_y, width=120)
ara_time_label.configure(anchor="center")
passenger_name_label = Label(self.base_frame, text="Passenger Name",
font=('Calibri', AppConstant.FONT_SIZE - 4, 'bold'), background=bg_color,
foreground=text_color)
passenger_name_label.place(x=735, y=heading_y, width=180)
passenger_name_label.configure(anchor="center")
passenger_contact_label = Label(self.base_frame, text="Contact No",
font=('Calibri', AppConstant.FONT_SIZE - 4, 'bold'), background=bg_color,
foreground=text_color)
passenger_contact_label.place(x=915, y=heading_y, width=120)
passenger_contact_label.configure(anchor="center")
booking_date_label = Label(self.base_frame, text="Booking Date",
font=('Calibri', AppConstant.FONT_SIZE - 4, 'bold'), background=bg_color,
foreground=text_color)
booking_date_label.place(x=1035, y=heading_y, width=130)
booking_date_label.configure(anchor="center")
At last we will manage closing of window
def on_closing():
root.destroy()
args[0].deiconify()
root.protocol("WM_DELETE_WINDOW", on_closing)
Programmer Mirta is for learning and training. Projects might be simple to improve learning. Projects are constantly reviewed to avoid errors, but we cannot assure full correctness of all content. While using Programmer Mitra, you agree to have read and accepted our terms of use, cookie and privacy policy.
Copyright 2021 by Programmer Mitra. All Rights Reserved.
