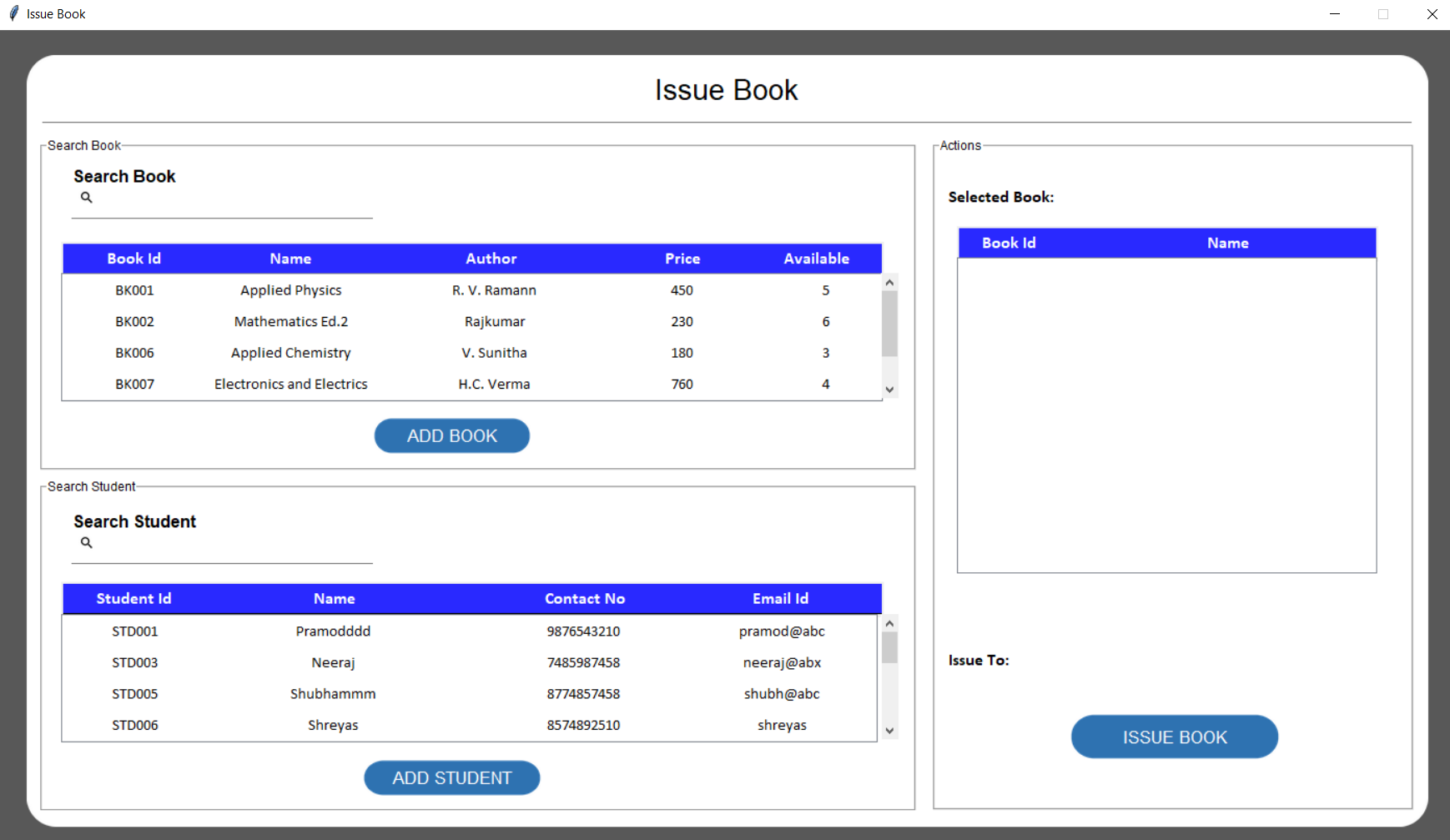

Issue Book
self.root = tk.Toplevel(self)
self.root.title("Issue Book")
self.root.configure(bg="#585858")
self.root.resizable(width=0, height=0)
win_width = 1400
print(1280 * 56.25 / 100)
win_height = int(1400 * 56.25 / 100)
self.root.geometry(str(win_width) + "x" + str(win_height))
Util.center(self.root)
# Get screen size
screen_width = self.root.winfo_screenwidth()
screen_height = self.root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
self.width = win_width * 96 / 100
self.height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(root, self.width, self.height, padding, cornerradius, self.color, "#585858")
bg_canvas.place(width=self.width, height=self.height, x=win_width / 2 - self.width / 2,y=win_height / 2 - self.height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b,anchor=NW)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(self.root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
# Add Heading Name
add_heading_label(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Issue Book", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size + 6))
label_heading.place(width=width * 90 / 100, height=height * 5 / 100, x=width * 5 / 100, y=height * 0.2 / 100)
# Add line
add_line_border(self.base_frame, self.color, self.height, self.width)
def add_line_border(base_frame, color, height, width):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 7 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
# Add Button Font
button_font = add_action_frame(self.base_frame, self.color, self.height, self.width)
def add_action_frame(base_frame, color, height, width):
afw = width * 0.35
afh = height * 0.91
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 6)
label_frame_action = LabelFrame(base_frame, text="Actions", font=button_font, pady=afw * 2 / 100,
padx=afw * 2 / 100, bg=color)
label_frame_action.place(width=afw, height=afh, x=width * 0.65, y=height * 0.09)
return button_font
add_book_search_frame(self.base_frame, button_font, self.color, self.height, self.width)
def add_book_search_frame(base_frame, button_font, color, height, width):
sfw = width * 0.638
sfh = height * 0.45
label_frame_search = LabelFrame(base_frame, text="Search Book", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_search.place(width=sfw, height=sfh, x=0, y=height * 0.09)
add_student_search_frame(self.base_frame, button_font, self.color, self.height, self.width)
def add_student_search_frame(base_frame, button_font, color, height, width):
sfw = width * 0.638
sfh = height * 0.45
label_frame_search = LabelFrame(base_frame, text="Search Student", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_search.place(width=sfw, height=sfh, x=0, y=height * 0.55)
self.search_book_var = CustomEntry(self.base_frame, 300, 55, 10, 2, self.color, "Search Book",
"images/ic_search.png")
self.search_book_var.place(x=25, y=95)
self.search_book_var.entry.bind('', self.search_book)
Here's the logic to search Book in table
def search_book(self, *arg):
if self.search_book_var.entry.get() != "":
self.tree.delete(*self.tree.get_children())
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute(
"SELECT book_number, book_name, book_authorname,book_cost, book_available_count FROM `book` WHERE `book_number` LIKE ? OR `book_name` LIKE ?",
('%' + str(self.search_book_var.entry.get()) + '%',
'%' + str(self.search_book_var.entry.get()) + '%'))
sql_output = cursor.fetchall()
count = 0
for data in sql_output:
if count % 2 == 0:
self.tree.insert('', 'end', values=data, tags=('even',))
else:
self.tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
else:
self.reset_book()
def reset_book(self):
self.tree.delete(*self.tree.get_children())
self.get_book_data()
class Util:
@staticmethod
def connect_db():
db = None
try:
db = sql.connect("library.db")
return db
except sql.Error as error:
print("Failed to insert data into sqlite table", error)
Fetch data from database and show it in table form with the use of "Treeview" of Tkinter.
style = ttk.Style()
# style.element_create("Custom.Treeheading.border", "from", "default")
style.layout("Custom.Treeview.Heading", [
("Custom.Treeheading.cell", {'sticky': 'nswe'}),
("Custom.Treeheading.border", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.padding", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.image", {'side': 'right', 'sticky': ''}),
("Custom.Treeheading.text", {'sticky': 'we'})
]})
]}),
])
style.configure("Custom.Treeview", highlightthickness=0, bd=0, font=('Calibri', 11), rowheight=30)
self.book_table_heading()
self.tree = ttk.Treeview(self.base_frame, height=4, columns=("c1", "c2", "c3", "c4", "c5"),
selectmode="extended", show='tree', style="Custom.Treeview")
self.tree.tag_configure('odd', background='#DFEBF6', foreground="#000000", )
self.tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.tree.place(x=20, y=195)
self.tree.bind('<>', self.on_select_book)
self.get_book_data()
def get_book_data(self):
db = Util.connect_db()
cursor = db.cursor()
cursor.execute(
'SELECT book_number, book_name, book_authorname,book_cost, book_available_count FROM book WHERE book_available_count > 0')
sql_output = cursor.fetchall()
vsby = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.tree.yview)
vsby.place(x=self.width / 2 + 147, y=195, height=120)
self.tree.configure(yscrollcommand=vsby.set)
self.tree.column("#1", anchor=tk.CENTER)
self.tree.column("#2", anchor=tk.CENTER)
self.tree.column("#3", anchor=tk.CENTER)
self.tree.column("#4", anchor=tk.CENTER)
self.tree.column("#5", anchor=tk.CENTER)
self.tree.heading("#1", text="Book Number", anchor=tk.CENTER)
self.tree.heading("#2", text="Book Name")
self.tree.heading("#3", text="Book Author")
self.tree.heading("#4", text="Available Copy")
self.tree.heading("#5", text="Book Price")
self.tree.column("#0", width=0)
self.tree.column("#1", width=100)
self.tree.column("#3", width=190)
self.tree.column("#4", width=170)
self.tree.column("#5", width=125)
We have created our own heading for Book table, lets configure it.
def book_table_heading(self):
heading_y = 168
bg_color = "#2929ff"
text_color = "#ffffff"
canvas = Canvas(self.base_frame, width=785, height=30)
canvas.create_rectangle(0, 0, 1000, 30, fill=bg_color)
canvas.place(x=20, y=heading_y - 3)
book_id_label = Label(self.base_frame, text="Book Id", width=9,
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
book_id_label.place(x=30, y=heading_y, width=120)
book_id_label.configure(anchor="center")
book_name_label = Label(self.base_frame, text="Name",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
book_name_label.place(x=180, y=heading_y, width=120)
book_name_label.configure(anchor="center")
book_authorname_label = Label(self.base_frame, text="Author",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
book_authorname_label.place(x=373, y=heading_y, width=120)
book_authorname_label.configure(anchor="center")
book_price = Label(self.base_frame, text="Price",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
book_price.place(x=556, y=heading_y, width=120)
book_price.configure(anchor="center")
book_total_count = Label(self.base_frame, text="Available",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
book_total_count.place(x=695, y=heading_y, width=100)
book_total_count.configure(anchor="center")
Now Create a "ADD BOOK" Button for adding the book to the Selected book table.
self.show_add_book_button()
def show_add_book_button(self):
self.add_button = RoundedButton(self.base_frame, 150, 130 / 3.75, self.color, "images/button3.png",
"ADD BOOK",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=self.on_add_book_click)
self.add_button.place(x=320, y=self.height * 0.471)
self.search_student_var = CustomEntry(self.base_frame, 300, 55, 10, 2, self.color, "Search Student",
"images/ic_search.png")
self.search_student_var.place(x=25, y=self.height * 0.60)
self.search_student_var.entry.bind('', self.search_student)
Here's the logic to search data in table
def search_student(self, *arg):
if self.search_student_var.entry.get() != "":
self.student_tree.delete(*self.student_tree.get_children())
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute("SELECT * FROM `student` WHERE `student_id` LIKE ? OR `name` LIKE ?",
('%' + str(self.search_student_var.entry.get()) + '%',
'%' + str(self.search_student_var.entry.get()) + '%'))
sql_output = cursor.fetchall()
count = 0
for data in sql_output:
if count % 2 == 0:
self.student_tree.insert('', 'end', values=data, tags=('even',))
else:
self.student_tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
else:
self.reset_student()
def reset_student(self):
conn = Util.connect_db()
cursor = conn.cursor()
self.student_tree.delete(*self.tree.get_children())
cursor.execute("SELECT * FROM `student` ORDER BY `student_id` ASC")
sql_output = cursor.fetchall()
count = 0
for data in sql_output:
if count % 2 == 0:
self.student_tree.insert('', 'end', values=data, tags=('even',))
else:
self.student_tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
cursor.close()
conn.close()
Fetch data from database and show it in table form with the use of "Treeview" of Tkinter.
self.student_table_heading()
self.student_tree = ttk.Treeview(self.base_frame, height=4, columns=("c1", "c2", "c3", "c4"),
show='tree', style="Custom.Treeview")
self.student_tree.tag_configure('odd', background='#DFEBF6', foreground="#000000", )
self.student_tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.student_tree.place(x=20, y=self.height * 0.735)
vsb = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.student_tree.yview)
vsb.place(x=self.width / 2 + 147, y=self.height * 0.735, height=120)
self.student_tree.configure(yscrollcommand=vsb.set)
self.student_tree.column("#0", width=0)
self.student_tree.column("#1", width=100)
self.student_tree.column("#2", width=280)
self.student_tree.column("#1", anchor=tk.CENTER)
self.student_tree.column("#2", anchor=tk.CENTER)
self.student_tree.column("#3", anchor=tk.CENTER)
self.student_tree.column("#4", anchor=tk.CENTER)
self.get_student_data()
def get_student_data(self):
db = Util.connect_db()
cursor = db.cursor()
cursor.execute('SELECT * FROM student')
sql_output = cursor.fetchall()
self.student_tree.bind('<>', self.on_select_student)
We have created our own heading for Student table, lets configure it.
def student_table_heading(self):
heading_y = self.height * 0.695
bg_color = "#2929ff"
text_color = "#ffffff"
canvas = Canvas(self.base_frame, width=785, height=30)
canvas.create_rectangle(0, 0, 1000, 30, fill=bg_color)
canvas.place(x=20, y=heading_y - 3)
student_id_label = Label(self.base_frame, text="Student Id",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
student_id_label.place(x=30, y=heading_y, width=120)
student_id_label.configure(anchor="center")
student_name_label = Label(self.base_frame, text="Name",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
student_name_label.place(x=222, y=heading_y, width=120)
student_name_label.configure(anchor="center")
student_contactno_label = Label(self.base_frame, text="Contact No",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
student_contactno_label.place(x=463, y=heading_y, width=120)
student_contactno_label.configure(anchor="center")
student_email = Label(self.base_frame, text="Email Id",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
student_email.place(x=650, y=heading_y, width=120)
student_email.configure(anchor="center")
Now Create a "ADD STUDENT" Button for add the Student to the Issue to Label.
self.show_add_student_button()
def show_add_student_button(self):
self.add_button = RoundedButton(self.base_frame, 170, 130 / 3.75, self.color, "images/button3.png",
"ADD STUDENT",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=self.add_student_button)
self.add_button.place(x=310, y=self.height * 0.932)
self.selected_book_table_heading()
selected_book_label = ttk.Label(self.base_frame, text="Selected Book:", width=15,
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background='white',
foreground="black")
selected_book_label.place(x=self.width / 2 + 210, y=110)
self.selected_row = []
self.book_list = []
self.selected_book_tree = ttk.Treeview(self.base_frame, height=15, show="tree")
self.selected_book_tree.place(x=self.width / 2 + 220, y=180)
self.selected_book_tree["columns"] = "1", "2"
self.selected_book_tree.column("#0", width=0)
self.selected_book_tree.column("#1", width=100)
self.selected_book_tree.column("#2", width=300)
self.selected_book_tree.column("#1", anchor=tk.CENTER)
self.selected_book_tree.column("#2", anchor=tk.CENTER)
self.selected_book_tree.bind('<>', self.on_remove)
selected_book_label = ttk.Label(self.base_frame, text="Issue To:", width=15,
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background='white',
foreground="black")
selected_book_label.place(x=self.width / 2 + 210, y=self.height * 0.78)
Now Create a "ISSUE BOOK" Button for Issuing the book to the student.
self.submit_button = RoundedButton(self.base_frame, 200, 130 / 3.0, self.color, "images/button3.png",
"ISSUE BOOK",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=self.on_issue_book_click)
self.submit_button.place(x=self.width * 0.75, y=self.height * 0.87)
class RoundedButton(tk.Canvas):
def __init__(self, parent, width, height, bg, icon_path, text, font, command=None):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.command = command
self.width = width
self.height = height
self.text = text
self.font = font
original = Image.open(icon_path)
resized = original.resize((int(width), int(height)), Image.ANTIALIAS)
self.image = ImageTk.PhotoImage(resized)
self.shape(width, height)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
self.bind("", self._on_press)
self.bind("", self._on_release)
def shape(self, width, height):
self.create_image(0, 0, image=self.image, anchor=NW)
self.create_text(width / 2, height / 2, anchor=CENTER, font=self.font, text=self.text, fill="#FFFFFF")
def shape_press(self, width, height):
self.create_image(0, 0, image=self.image, anchor=NW)
self.create_text(width / 2, height / 2, anchor=CENTER, font=self.font, text=self.text, fill="#000000")
def _on_press(self, event):
self.configure(relief="sunken")
self.delete("all")
# self.update()
self.shape_press(self.width, self.height)
def _on_release(self, event):
self.configure(relief="raised")
self.delete("all")
self.shape(self.width, self.height)
if self.command is not None:
self.command()
Here the logic on Click "ISSUE BOOK" button
def on_issue_book_click(self):
self.insert_into_reader_table(self.selected_student_id, self.book_list)
def insert_into_reader_table(self, student_id, book_number_list):
db = Util.connect_db()
cursor = db.cursor()
s_no = None
current_date = datetime.datetime.today().strftime('%Y-%m-%d')
print(current_date)
return_date = None
fine_paid = None
assigned_staff_id = AppConstant.STAFF_ID
return_staff_id = ""
for book_number in book_number_list:
cursor.execute("INSERT INTO readers VALUES (?,?,?,?,?,?,?,?)", (
s_no, student_id, book_number, current_date, return_date, fine_paid, assigned_staff_id, return_staff_id,
))
cursor.execute("SELECT book_available_count FROM book WHERE book_number IS ?", (book_number,))
rows = cursor.fetchone()
print(rows[0])
id_count = Util.convert_string_to_int(rows[0]) - 1
cursor.execute("UPDATE book SET book_available_count = ? WHERE book_number = ?",
(id_count, book_number,))
db.commit()
messagebox.showinfo(title="Success", message="Book Issued")
self.book_list.clear()
self.selected_student_id = None
self.selected_student_label.config(text="")
self.tree.delete(*self.tree.get_children())
self.get_book_data()
self.selected_book_tree.delete(*self.selected_book_tree.get_children())
At last we will manage closing of window
def on_closing():
root.destroy()
args[0].deiconify()
root.protocol("WM_DELETE_WINDOW", on_closing)
Programmer Mirta is for learning and training. Projects might be simple to improve learning. Projects are constantly reviewed to avoid errors, but we cannot assure full correctness of all content. While using Programmer Mitra, you agree to have read and accepted our terms of use, cookie and privacy policy.
Copyright 2021 by Programmer Mitra. All Rights Reserved.
