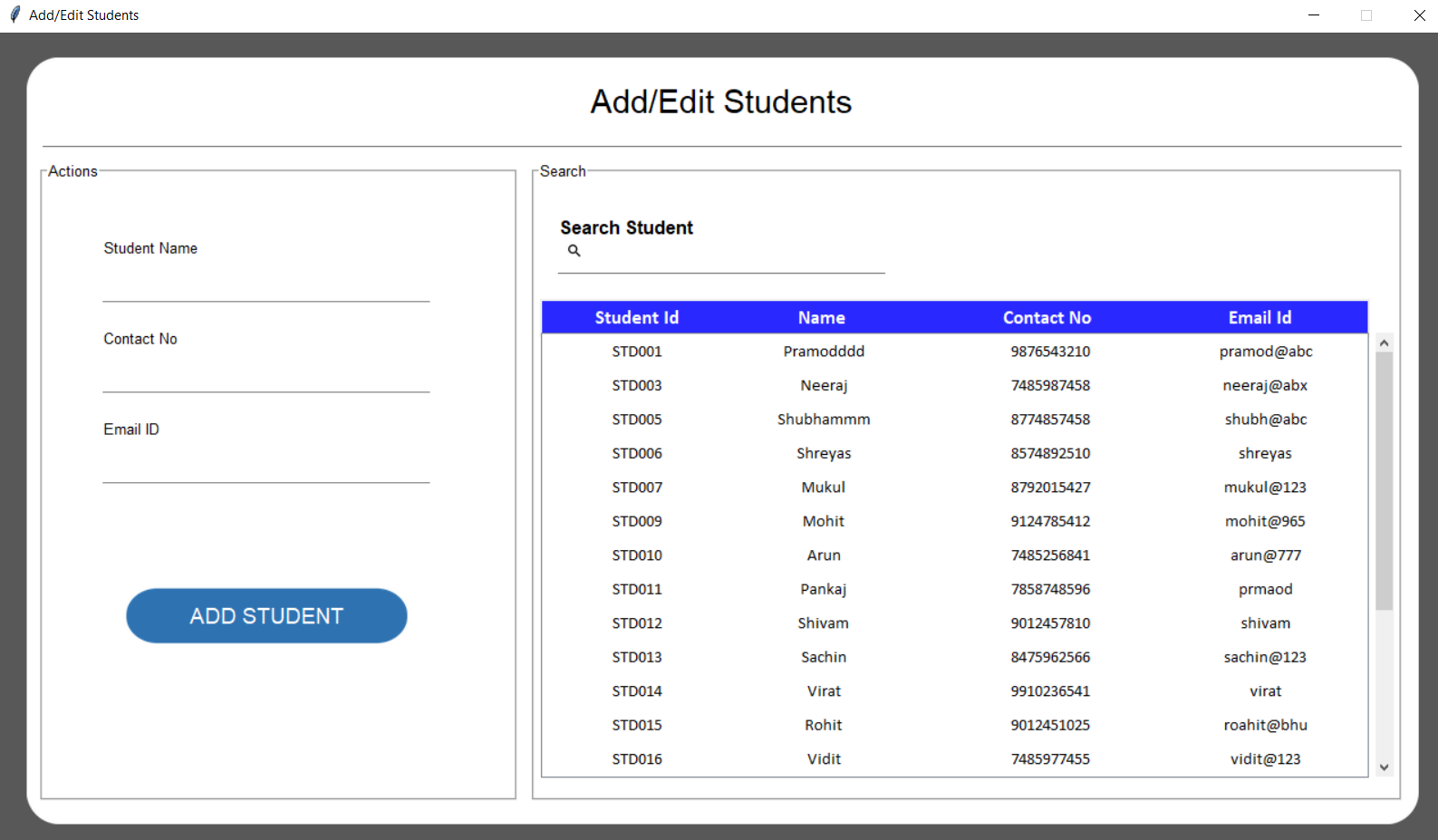

Add/Edit Student
root = tk.Toplevel() #Create window at top level
root.title("Add/Edit Students") #Give title to window
root.configure(bg="#585858") #Set Background Color
root.resizable(width=0, height=0)
win_width = 1280
print(1280 * 56.25 / 100)
win_height = int(1280 * 56.25 / 100)
root.geometry(str(win_width) + "x" + str(win_height))
Util.center(root)
# Get screen size
screen_width = root.winfo_screenwidth()
screen_height = root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
self.width = win_width * 96 / 100
self.height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(root, self.width, self.height, padding, cornerradius, self.color, "#585858")
bg_canvas.place(width=self.width, height=self.height, x=win_width / 2 - self.width / 2,y=win_height / 2 - self.height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b,anchor=NW)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
# Add Heading Name
add_heading_label(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Add/Edit Students", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size + 6))
label_heading.place(width=width * 90 / 100, height=height * 7 / 100, x=width * 5 / 100, y=height * 0.5 / 100)
# Add line
add_line_border(self.base_frame, self.color, self.height, self.width)
def add_line_border(base_frame, color, height, width):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 10 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
button_font = add_action_frame(self.base_frame, self.color, self.height, self.width)
def add_action_frame(base_frame, color, height, width):
afw = width * 0.35
afh = height * 0.87
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 6)
label_frame_action = LabelFrame(base_frame, text="Actions", font=button_font, pady=afw * 2 / 100,
padx=afw * 2 / 100, bg=color)
label_frame_action.place(width=afw, height=afh, x=0, y=height * 0.12)
return button_font
add_search_frame(self.base_frame, button_font, self.color, self.height, self.width)
(base_frame, button_font, color, height, width):
sfw = width * 0.638
sfh = height * 0.87
label_frame_search = LabelFrame(base_frame, text="Search", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_search.place(width=sfw, height=sfh, x=width * 0.36, y=height * 0.12)
# Add Student UI
self.std_name = CustomEntrySimple(self.base_frame, 300, 60, ("Lucida Grande", AppConstant.FONT_SIZE - 6),self.color,"Student Name")
self.std_name.place(x=50, y=150)
self.std_contact = CustomEntrySimple(self.base_frame, 300, 60, ("Lucida Grande", AppConstant.FONT_SIZE - 6),self.color,"Contact No")
self.std_contact.place(x=50, y=230)
self.std_email = CustomEntrySimple(self.base_frame, 300, 60, ("Lucida Grande", AppConstant.FONT_SIZE - 6),self.color,"Email ID")
self.std_email.place(x=50, y=310)
Here is our class CustomEntrySimple:
class CustomEntrySimple(tk.Canvas):
def __init__(self, parent, width, height, font, color, text):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=color)
self.width = width
self.height = height
self.color = color
self.create_text(6, 5, anchor=W, font=font, text=text, fill="#000000")
self.create_line(5, height - 8, width - 5, height - 8, fill="#808080")
frame = Frame(parent,width=width * 95 / 100, height=height * 50 / 100)
self.entry = Entry(frame, bg=color, bd=0, highlightthickness=0, font=font)
self.entry.place(relwidth=1, relheight=1, x=0, y=0)
self.create_window(6, height / 2 - (height * 50 / 100) / 2, anchor=NW, window=frame)
self.update()
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
Create a "Submit" button and show it.
def show_add_student_button(self):
self.add_button = RoundedButton(self.base_frame, 250, 130 / 2.56, self.color, "images/button3.png",
"ADD STUDENT",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=self.add_student_click)
self.add_button.place(x=75, y=self.height * 0.70)
self.ce_student_var = CustomEntry(self.base_frame, 300, 55, 10, 2, self.color, "Search Student",
"images/ic_search.png")
self.ce_student_var.place(x=self.width / 2 - 150, y=self.height * 0.20)
self.ce_student_var.entry.bind('', self.search_student)
Here's the logic to search data in table
def search_student(self, *arg):
if self.ce_student_var.entry.get() != "":
self.tree.delete(*self.tree.get_children())
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute("SELECT * FROM `student` WHERE `name` LIKE ? OR `student_id` LIKE ?",
('%' + str(self.ce_student_var.entry.get()) + '%',
'%' + str(self.ce_student_var.entry.get()) + '%'))
fetch = cursor.fetchall()
count = 0
for data in fetch:
if count % 2 == 0:
self.tree.insert('', 'end', values=data, tags=('even',))
else:
self.tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
# for data in fetch:
# self.tree.insert('', 'end', values=data)
cursor.close()
conn.close()
else:
self.reset_book()
def reset_book(self):
self.tree.delete(*self.tree.get_children())
self.update_table_data()
class Util:
@staticmethod
def connect_db():
db = None
try:
db = sql.connect("library.db")
return db
except sql.Error as error:
print("Failed to insert data into sqlite table", error)
Fetch data from database and show it in table form with the use of "Treeview" of Tkinter.
db = Util.connect_db()
cursor = db.cursor()
cursor.execute('SELECT * FROM student')
self.sql_output = cursor.fetchall()
style = ttk.Style()
# style.element_create("Custom.Treeheading.border", "from", "default")
style.layout("Custom.Treeview.Heading", [
("Custom.Treeheading.cell", {'sticky': 'nswe'}),
("Custom.Treeheading.border", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.padding", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.image", {'side': 'right', 'sticky': ''}),
("Custom.Treeheading.text", {'sticky': 'we'})
]})
]}),
])
# style.configure("Custom.Treeview.Heading", background="blue", foreground="red", relief="flat")
style.map("Custom.Treeview.Heading", relief=[('active', 'groove'), ('pressed', 'sunken')])
style.configure("Custom.Treeview", highlightthickness=0, bd=0, font=('Calibri', 11), rowheight=30)
self.table_heading()
self.tree = ttk.Treeview(self.base_frame, height=13, show='tree', style="Custom.Treeview")
self.tree.tag_configure('odd', background='#DFEBF6', foreground="#000000", )
self.tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.tree.place(x=self.width / 2 - 160, y=230)
self.tree["columns"] = "1", "2", "3", "4"
self.tree.column("#1", width=128)
self.tree.column("#0", width=0)
count = 0
for data in self.sql_output:
if count % 2 == 0:
self.tree.insert('', 'end', values=data, tags=('even',))
else:
self.tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
vsb = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.tree.yview)
vsb.place(x=self.width - 26, y=230, height=392)
self.tree.configure(yscrollcommand=vsb.set)
self.tree.column("#1", anchor=tk.CENTER)
self.tree.column("#2", anchor=tk.CENTER)
self.tree.column("#3", anchor=tk.CENTER)
self.tree.column("#4", anchor=tk.CENTER)
self.tree.heading("#1", text="Student Id", anchor=tk.CENTER)
self.tree.heading("#2", text="Name")
self.tree.heading("#3", text="Contact No")
self.tree.heading("#4", text="Email Id")
self.tree.bind('<>', self.on_tree_click)
root.attributes('-alpha', 0.0)
root.attributes('-alpha', 1.0)
We have created our own heading for table, lets configure it.
def table_heading(self):
heading_y = 203
bg_color = "#2929ff"
text_color = "#ffffff"
canvas = Canvas(self.base_frame, width=729, height=30)
canvas.create_rectangle(0, 0, 790, 30, fill=bg_color)
canvas.place(x=self.width / 2 - 161, y=heading_y - 3)
student_id_label = Label(self.base_frame, text="Student Id",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
student_id_label.place(x=self.width / 2 - 135, y=heading_y, width=120)
student_id_label.configure(anchor="center")
student_name_label = Label(self.base_frame, text="Name",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
student_name_label.place(x=self.width / 2 + 28, y=heading_y, width=120)
student_name_label.configure(anchor="center")
student_contact_label = Label(self.base_frame, text="Contact No",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
student_contact_label.place(x=self.width / 2 + 227, y=heading_y, width=120)
student_contact_label.configure(anchor="center")
student_email_label = Label(self.base_frame, text="Email Id",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
student_email_label.place(x=self.width / 2 + 415, y=heading_y, width=120)
student_email_label.configure(anchor="center")
UI part is completed, lets move to funtionality. First we need to add click on "Add Student" button.
def add_student_click(self):
var = ""
student_email = ""
student_name = ""
student_contact = ""
is_name_entered = False
is_contact_number_entered = False
is_email_id_entered = False
if self.std_email.entry.get() == "" or self.std_email.entry.get() == " ":
var += "Email Should not be empty, "
else:
student_email = self.std_email.entry.get()
is_email_id_entered = True
if self.std_name.entry.get() == "" or self.std_name.entry.get() == " ":
var += "Name Should not be empty, "
else:
student_name = self.std_name.entry.get()
is_name_entered = True
if self.std_contact.entry.get() == "" or self.std_contact.entry.get() == " ":
var += "Contact Should not be empty, "
else:
student_contact = self.std_contact.entry.get()
is_contact_number_entered = True
print(student_email, student_contact, student_name)
if is_name_entered and is_email_id_entered and is_contact_number_entered:
conn = Util.connect_db()
cursor = conn.cursor()
key = "STUDENT_LAST_COUNT"
cursor.execute('SELECT value FROM system_setting WHERE key IS ?', (key,))
rows = cursor.fetchone()
print(rows[0])
id_count = Util.convert_string_to_int(rows[0]) + 1
student_id = get_student_id(id_count) + str(id_count)
cursor.execute('INSERT INTO student(student_id, name, contact_no, email_id) VALUES(?,?,?,?)',
(student_id, student_name, student_contact, student_email))
conn.commit()
messagebox.showinfo("Success", "Student has been added successfully")
self.std_email.entry.delete(0, 'end')
self.std_contact.entry.delete(0, 'end')
self.std_name.entry.delete(0, 'end')
self.std_name.entry.focus()
cursor.execute("UPDATE system_setting SET value = ? WHERE key = ?",
(id_count, key,))
conn.commit()
cursor.execute('SELECT * FROM student')
self.sql_output = cursor.fetchall()
self.tree.delete(*self.tree.get_children())
for data in self.sql_output:
self.tree.insert('', 'end', values=data)
else:
print(var)
messagebox.showerror("showerror", var)
def update_table_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute('SELECT * FROM student')
self.sql_output = cursor.fetchall()
count = 0
for data in self.sql_output:
if count % 2 == 0:
self.tree.insert('', 'end', values=data, tags=('even',))
else:
self.tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
To edit and delete student on click on table row, we need to show Edit And Delete Button.
def on_tree_click(self, *args):
self.show_edit_button()
self.show_delete_button()
def show_edit_button(self, *args):
self.edit_button = RoundedButton(self.base_frame, 110, 130 / 3.75, self.color, "images/button3.png",
"EDIT",
font=("Lucida Grande", AppConstant.FONT_SIZE - 4),
command=lambda: self.edit_student(self.height, self.color))
self.edit_button.place(x=self.width / 2 + 240, y=self.height * 0.20)
def show_delete_button(self, *args):
self.delete_button = RoundedButton(self.base_frame, 110, 130 / 3.75, self.color, "images/button3.png",
"DELETE",
font=("Lucida Grande", AppConstant.FONT_SIZE - 4),
command=self.delete_student)
self.delete_button.place(x=self.width / 2 + 420, y=self.height * 0.20)
def edit_student(self, height, color):
cur_item = self.tree.focus()
self.std_name.entry.delete(0, END)
self.std_contact.entry.delete(0, END)
self.std_email.entry.delete(0, END)
self.std_name.entry.insert(0, self.tree.item(cur_item)["values"][1])
self.std_contact.entry.insert(0, self.tree.item(cur_item)["values"][2])
self.std_email.entry.insert(0, self.tree.item(cur_item)["values"][3])
self.add_button.place_forget()
student_id = self.tree.item(cur_item)["values"][0]
self.hide_edit_button()
self.update_button = RoundedButton(self.base_frame, 170, 130 / 2.56, color, "images/button3.png", "UPDATE",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=lambda: self.update_student_click(student_id))
self.update_button.place(x=25, y=height * 0.70)
self.cancel_button = RoundedButton(self.base_frame, 170, 130 / 2.56, color, "images/button3.png", "CANCEL",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=self.cancel_button_click)
self.cancel_button.place(x=220, y=height * 0.70)
Implement Update And Cancel Button functionality
def update_student_click(self, student_id):
var = ""
student_email = ""
student_name = ""
student_contact = ""
is_name_entered = False
is_contact_number_entered = False
is_email_id_entered = False
if self.std_email.entry.get() == "" or self.std_email.entry.get() == " ":
var += "Email Should not be empty, "
else:
student_email = self.std_email.entry.get()
is_email_id_entered = True
if self.std_name.entry.get() == "" or self.std_name.entry.get() == " ":
var += "Name Should not be empty, "
else:
student_name = self.std_name.entry.get()
is_name_entered = True
if self.std_contact.entry.get() == "" or self.std_contact.entry.get() == " ":
var += "Contact Should not be empty, "
else:
student_contact = self.std_contact.entry.get()
is_contact_number_entered = True
print(student_email, student_contact, student_name)
if is_name_entered and is_email_id_entered and is_contact_number_entered:
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute("UPDATE student SET name = ?, contact_no = ?, email_id = ? WHERE student_id = ?",
(student_name, student_contact, student_email, student_id,))
conn.commit()
self.std_email.entry.delete(0, 'end')
self.std_contact.entry.delete(0, 'end')
self.std_name.entry.delete(0, 'end')
messagebox.showinfo("Success", "Student detail has been updated successfully")
self.tree.delete(*self.tree.get_children())
self.update_table_data()
self.add_button = RoundedButton(self.base_frame, 250, 130 / 2.56, self.color, "images/button3.png",
"ADD STUDENT",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=self.add_student_click)
self.add_button.place(x=75, y=self.height * 0.70)
self.hide_edit_button()
self.cancel_button.place_forget()
self.update_button.place_forget()
def cancel_button_click(self):
self.std_email.entry.delete(0, 'end')
self.std_contact.entry.delete(0, 'end')
self.std_name.entry.delete(0, 'end')
self.show_add_student_button()
# self.hide_edit_button()
self.show_edit_button()
self.cancel_button.place_forget()
self.update_button.place_forget()
At last we will manage closing of window
def on_closing():
root.destroy()
args[0].deiconify()
root.protocol("WM_DELETE_WINDOW", on_closing)
Programmer Mirta is for learning and training. Projects might be simple to improve learning. Projects are constantly reviewed to avoid errors, but we cannot assure full correctness of all content. While using Programmer Mitra, you agree to have read and accepted our terms of use, cookie and privacy policy.
Copyright 2021 by Programmer Mitra. All Rights Reserved.
