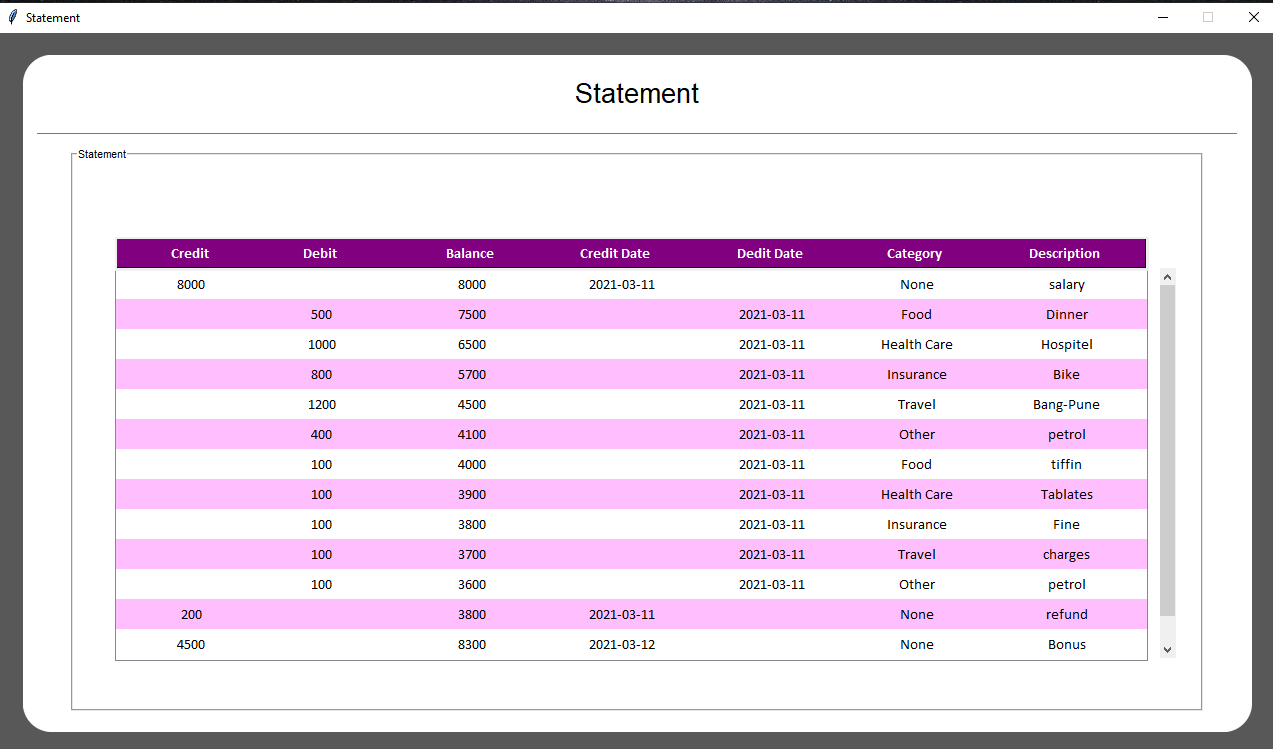

Statement
root.title("Statement")
root.configure(bg="#585858")
root.resizable(width=0, height=0)
win_width = 1280
win_height = int(1280 * 56.25 / 100)
root.geometry(str(win_width) + "x" + str(win_height))
Util.center(root)
# Get screen size
screen_width = root.winfo_screenwidth()
screen_height = root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
self.width = win_width * 96 / 100
self.height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(root, self.width, self.height, padding, cornerradius, self.color, "#585858")
bg_canvas.place(width=self.width, height=self.height, x=win_width / 2 - self.width / 2,y=win_height / 2 - self.height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.width = width
self.height = height
self.padding = padding
self.cornerradius = cornerradius
self.color = color
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b, anchor=NW)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
#Add Heading
add_heading_label(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Statement", anchor=CENTER, bg=color,font=("Lucida Grande", font_size + 6))
label_heading.place(width=width * 90 / 100, height=height * 7 / 100, x=width * 5 / 100, y=height * 0.5 / 100)
#Add Line
add_line_border(self.base_frame, self.color, self.height, self.width)
def add_line_border(base_frame, color, height, width):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 10 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
#Add Statement Frame
add_statement_frame(self.base_frame, self.color, self.height, self.width)
def add_statement_frame(base_frame, color, height, width):
sfw = width * 0.94
sfh = height * 0.87
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 6)
label_frame_statement = LabelFrame(base_frame, text="Statement", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_statement.place(width=sfw, height=sfh, x=width * 0.03, y=height * 0.12)
Fetch data from database and show in table form with the use of "Treeview" of Tkinter
conn = Util.connect_db()
cursor = conn.cursor()
style = ttk.Style()
style.layout("Custom.Treeview.Heading", [
("Custom.Treeheading.cell", {'sticky': 'nswe'}),
("Custom.Treeheading.border", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.padding", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.image", {'side': 'right', 'sticky': ''}),
("Custom.Treeheading.text", {'sticky': 'we'})
]})
]}),
])
style.map("Custom.Treeview", background=[('selected', '#ad51ad')])
style.configure("Custom.Treeview", highlightthickness=0, bd=0, font=('Calibri', 11), rowheight=30)
self.tree = ttk.Treeview(self.base_frame, height=13, show='tree', style="Custom.Treeview")
self.tree.tag_configure('odd', background='#ffbfff', foreground="#000000", )
self.tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.tree.place(x=80, y=200)
self.tree["columns"] = "1", "2", "3", "4", "5", "6", "7"
self.tree.column("#0", width=0)
self.tree.column("#1", width=110)
self.tree.column("#2", width=150)
self.tree.column("#3", width=150)
self.tree.column("#4", width=150)
self.tree.column("#5", width=150)
self.tree.column("#6", width=140)
self.tree.column("#7", width=180)
self.table_heading()
vsby = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.tree.yview)
vsby.place(x=self.width - 80, y=200, height=390)
self.tree.configure(yscrollcommand=vsby.set)
self.get_table_data()
self.tree.column("#1", anchor=tk.CENTER)
self.tree.column("#2", anchor=tk.CENTER)
self.tree.column("#3", anchor=tk.CENTER)
self.tree.column("#4", anchor=tk.CENTER)
self.tree.column("#5", anchor=tk.CENTER)
self.tree.column("#6", anchor=tk.CENTER)
self.tree.column("#7", anchor=tk.CENTER)
root.attributes('-alpha', 0.0)
root.attributes('-alpha', 1.0)
We have created our own heading for History table, lets configure it.
def table_heading(self):
heading_y = 173
bg_color = "#800080"
text_color = "#ffffff"
canvas = Canvas(self.base_frame, width=1030, height=30)
canvas.create_rectangle(0, 0, 1030, 30, fill=bg_color)
canvas.place(x=80, y=heading_y - 4)
credit_label = Label(self.base_frame, text="Credit",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
credit_label.place(x=90, y=heading_y, width=130)
credit_label.configure(anchor="center")
debit_label = Label(self.base_frame, text="Debit",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
debit_label.place(x=225, y=heading_y, width=120)
debit_label.configure(anchor="center")
balance_label = Label(self.base_frame, text="Balance",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
balance_label.place(x=380, y=heading_y, width=110)
balance_label.configure(anchor="center")
credit_date_label = Label(self.base_frame, text="Credit Date",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
credit_date_label.place(x=505, y=heading_y, width=150)
credit_date_label.configure(anchor="center")
dedit_date_label = Label(self.base_frame, text="Dedit Date",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
dedit_date_label.place(x=660, y=heading_y, width=150)
dedit_date_label.configure(anchor="center")
category = Label(self.base_frame, text="Category",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
category.place(x=815, y=heading_y, width=130)
category.configure(anchor="center")
description = Label(self.base_frame, text="Description",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
description.place(x=960, y=heading_y, width=140)
description.configure(anchor="center")
UI part complete, here's logic of add data in history table fetch from database
def get_table_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute('SELECT credit, debit, balance, credit_date, debit_date, category, description FROM statement where user_id IS ?',
(AppConstant.USER_ID,))
sql_output = cursor.fetchall()
count = 0
for data in sql_output:
if count % 2 == 0:
self.tree.insert('', 'end', values=data, tags=('even',))
else:
self.tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
At last we will manage closing of window
def on_closing():
root.destroy()
args[0].deiconify()
root.protocol("WM_DELETE_WINDOW", on_closing)
