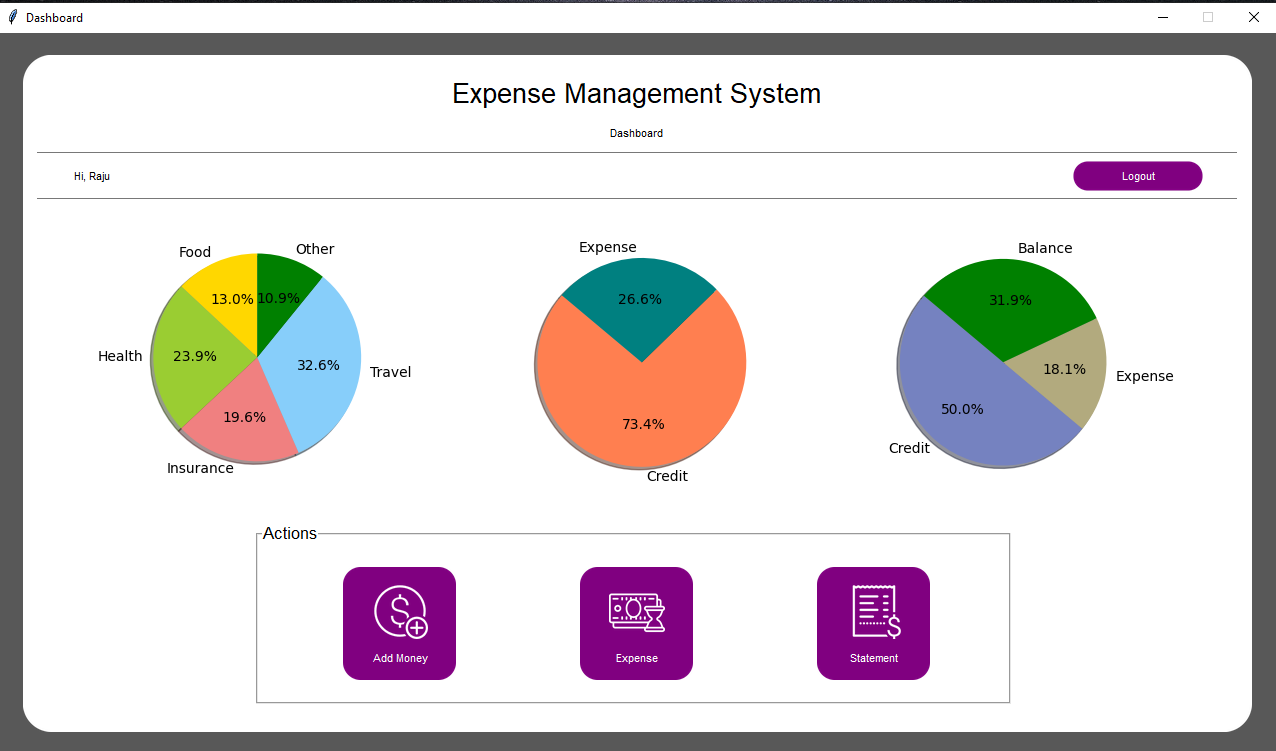

Dashboard
root = tk.Toplevel()
self.root = tk.Toplevel()
self.root.title("Dashboard")
self.root.configure(bg="#585858")
self.root.resizable(width=0, height=0)
win_width = 1280
print(1280 * 56.25 / 100)
win_height = int(1280 * 56.25 / 100)
self.root.geometry(str(win_width) + "x" + str(win_height))
Util.center(self.root)
login_root = None
if args.__sizeof__() > 0:
login_root = args[0]
# Get screen size
screen_width = self.root.winfo_screenwidth()
screen_height = self.root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
width = win_width * 96 / 100
height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(self.root, width, height, padding, cornerradius, color, "#585858")
bg_canvas.place(width=width, height=height, x=win_width / 2 - width / 2, y=win_height / 2 - height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.width = width
self.height = height
self.padding = padding
self.cornerradius = cornerradius
self.color = color
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b, anchor=NW)
width = width * 98 / 100
height = height * 96 / 100
base_frame = Frame(self.root, width=width, height=height, bg=color)
bg_canvas.create_window(width / 100, height * 2 / 100, anchor=NW, window=base_frame)
add_heading_label(base_frame, color, AppConstant.FONT_SIZE, height, width)
#Add Heading
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Expense Management System", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size + 6))
label_heading.place(width=width * 90 / 100, height=height * 7 / 100, x=width * 5 / 100, y=height * 0.5 / 100)
label_dashboard = Label(base_frame, text="Dashboard", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size - 6))
label_dashboard.place(width=width * 90 / 100, height=height * 4 / 100, x=width * 5 / 100, y=height * 8 / 100)
#Line
add_line_border(base_frame, color, AppConstant.FONT_SIZE, height, width, self.root, login_root)
def add_line_border(base_frame, color, font_size, height, width, root, login_root):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 13 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
line_canvas2 = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas2.place(width=width - 4, height=5, x=2, y=height * 20 / 100)
line_canvas2.create_line(0, 0, width, 0, fill="#787878")
frame_name = Frame(base_frame, bg=color)
frame_name.place(width=width * 94 / 100, x=width * 3 / 100, y=height * 14.3 / 100)
frame_name.grid_propagate(False)
label_name = Label(frame_name, font=("Lucida Grande", font_size - 6), text="Hi, " + AppConstant.STAFF_NAME,
anchor=CENTER,bg=color)
label_name.pack(side="left", fill=None, expand=False)
button_logout = RoundedButton(frame_name, 130, 130 / 4.2, color, "images/button37.png", "Logout",font=("Lucida Grande",
font_size - 6),command=lambda: logout_click(root, login_root))
button_logout.pack(side="right", fill=None, expand=False)
#Add Action Frame
add_action_frame(base_frame, color, AppConstant.FONT_SIZE, height, width, self.root)
def add_action_frame(base_frame, color, font_size, height, width, root):
lfw = width * 94 / 100
lfbw = lfw * 10 / 100
button_font = ("Lucida Grande", font_size - 6)
labelframe = LabelFrame(base_frame, text="Actions",
font=font.Font(family="Lucida Grande", size=13, weight='normal'),
pady=lfw * 2 / 100, padx=lfw * 2 / 100, bg=color)
labelframe.place(width=lfw - lfw / 3, height=lfbw + lfw * 6 / 100, x=width / 5 - 20, y=height * 70 / 100)
button_vacant_room = AddActionFrame(labelframe, lfbw, lfbw, color, "Add Money",
button_font, "images/add_money.png",
command=lambda: credit_click(root))
button_allote_room = AddActionFrame(labelframe, lfbw, lfbw, color, "Expense",
button_font, "images/transaction.png", command=lambda: expense_click(root))
button_add_money = AddActionFrame(labelframe, lfbw, lfbw, color, "Statement",
button_font, "images/statement.png", command=lambda: statement_click(root))
button_add_money.grid(row=0, column=3, padx=(lfbw * 55 / 100))
button_allote_room.grid(row=0, column=2, padx=(lfbw * 55 / 100))
button_vacant_room.grid(row=0, column=1, padx=(lfbw * 55 / 100))
self.root.attributes('-alpha', 0.0)
Util.center(self.root)
self.root.attributes('-alpha', 1.0)
class RoundedButton(tk.Canvas):
def __init__(self, parent, width, height, bg, icon_path, text, font, command=None):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.command = command
self.width = width
self.height = height
self.text = text
self.font = font
original = Image.open(icon_path)
resized = original.resize((int(width), int(height)), Image.ANTIALIAS)
self.image = ImageTk.PhotoImage(resized)
self.shape(width, height)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
self.bind("", self._on_press)
self.bind("", self._on_release)
def shape(self, width, height):
self.create_image(0, 0, image=self.image, anchor=NW)
self.create_text(width / 2, height / 2, anchor=CENTER, font=self.font, text=self.text, fill="#FFFFFF")
def shape_press(self, width, height):
self.create_image(0, 0, image=self.image, anchor=NW)
self.create_text(width / 2, height / 2, anchor=CENTER, font=self.font, text=self.text, fill="#000000")
def _on_press(self, event):
self.configure(relief="sunken")
self.delete("all")
# self.update()
self.shape_press(self.width, self.height)
def _on_release(self, event):
self.configure(relief="raised")
self.delete("all")
self.shape(self.width, self.height)
if self.command is not None:
self.command()
class Util:
@staticmethod
def connect_db():
db = None
try:
db = sql.connect("expense.db")
return db
except sql.Error as error:
print("Failed to insert data into sqlite table", error)
So we are done with all frame and connect from database now draw Deskframe UI .
self.total_bal = 0
self.total_expense = 0
self.total_credit = 0
self.food_expense = 200
self.health_expense = 400
self.insurance_expense = 500
self.travel_expense = 200
self.other_expense = 400
#Account data
self.get_account_table_data()
#Food data
self.get_food_data()
#Insurance data
self.get_insurance_data()
#Travle Data
self.get_travel_data()
#Health data
self.get_health_data()
#Other data
self.get_other_data()
Here is logic for get Account data from database .
def get_account_table_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
old_balance = 0
old_credit = 0
old_debit = 0
cursor.execute('SELECT balance FROM statement where user_id IS ?', (AppConstant.USER_ID,))
sql_outputTwo = cursor.fetchall()
count = 0
for amountdata in sql_outputTwo:
if count == len(sql_outputTwo) - 1:
for items in amountdata:
old_balance = old_balance + items
count += 1
self.total_bal = old_balance
cursor.execute(
'SELECT debit FROM statement where user_id IS ?', (AppConstant.USER_ID,))
sql_output = cursor.fetchall()
for data in sql_output:
for items in data:
if items != "":
old_debit = old_debit + items
self.total_expense = old_debit
cursor.execute('SELECT credit FROM statement where user_id IS ?', (AppConstant.USER_ID,))
sql_outputTwo = cursor.fetchall()
for data in sql_outputTwo:
for items in data:
if items != "":
old_credit = old_credit + items
self.total_credit = old_credit
Here is logic for get Food data from database.
def get_food_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
old_data = 0
category = "Food"
cursor.execute('SELECT debit FROM statement where user_id IS ? and category IS ?', (AppConstant.USER_ID, category))
sql_output = cursor.fetchall()
for data in sql_output:
for items in data:
if items != "":
old_data = old_data + items
self.food_expense = old_data
def get_health_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
old_data = 0
category = "Health Care"
cursor.execute('SELECT debit FROM statement where user_id IS ? and category IS ?', (AppConstant.USER_ID, category))
sql_output = cursor.fetchall()
for data in sql_output:
for items in data:
if items != "":
old_data = old_data + items
self.health_expense = old_data
Here is logic for get Insurance data from database.
def get_insurance_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
old_data = 0
category = "Insurance"
cursor.execute('SELECT debit FROM statement where user_id IS ? and category IS ?', (AppConstant.USER_ID, category))
sql_output = cursor.fetchall()
for data in sql_output:
for items in data:
if items != "":
old_data = old_data + items
self.insurance_expense = old_data
Here is logic for get Travel data from database.
def get_travel_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
old_data = 0
category = "Travel"
cursor.execute('SELECT debit FROM statement where user_id IS ? and category IS ?', (AppConstant.USER_ID, category))
sql_output = cursor.fetchall()
for data in sql_output:
for items in data:
if items != "":
old_data = old_data + items
self.travel_expense = old_data
Here is logic for get Othere data from database.
def get_other_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
old_data = 0
category = "Other"
cursor.execute('SELECT debit FROM statement where user_id IS ? and category IS ?', (AppConstant.USER_ID, category))
sql_output = cursor.fetchall()
for data in sql_output:
for items in data:
if items != "":
old_data = old_data + items
self.other_expense = old_data
Here's logic for Added data frame is plot into pie chart .
my_dpi = 100
fig = plt.figure(figsize=(6, 6), dpi=my_dpi)
fig.set_size_inches(4, 3)
labels = 'Food', 'Health', 'Insurance', 'Travel', 'Other'
sizes = [self.food_expense, self.health_expense, self.insurance_expense,
self.travel_expense, self.other_expense]
colors = ['gold', 'yellowgreen', 'lightcoral', 'lightskyblue', 'green']
explode = (0, 0, 0, 0, 0) # explode 1st slice (Ireland), makes it more prominent
# Plot pie chart
plt.pie(sizes, explode=explode, labels=labels, colors=colors, autopct='%1.1f%%', shadow=True, startangle=90)
plt.axis('equal') # creates the pie chart like a circle
canvasbar = FigureCanvasTkAgg(fig, master=self.root)
canvasbar.draw()
canvasbar.get_tk_widget().place(relx=0.2, rely=0.45, anchor=CENTER) # show the barchart on the ouput window
fig2 = plt.figure(figsize=(6, 6), dpi=my_dpi)
fig2.set_size_inches(4, 3)
labelstwo = 'Credit', 'Expense'
sizestwo = [self.total_credit, self.total_expense]
colorstwo = ['coral', 'teal']
explodetwo = (0, 0) # explode 1st slice (Ireland), makes it more prominent
# Plot pie chart
plt.pie(sizestwo, explode=explodetwo, labels=labelstwo, colors=colorstwo, autopct='%1.1f%%', shadow=True, startangle=140)
plt.axis('equal') # creates the pie chart like a circle
canvasbar = FigureCanvasTkAgg(fig2, master=base_frame)
canvasbar.draw()
canvasbar.get_tk_widget().place(relx=0.5, rely=0.45, anchor=CENTER) # show the barchart on the ouput window
fig3 = plt.figure(figsize=(6, 6), dpi=my_dpi)
fig3.set_size_inches(4, 3)
labelsthree = 'Credit', 'Expense', 'Balance'
sizesthree = [self.total_credit, self.total_expense, self.total_bal]
colorsthree = ['#7582c0', '#b2aa7e', 'green']
explodethree = (0, 0, 0) # explode 1st slice (Ireland), makes it more prominent
# Plot pie chart
plt.pie(sizesthree, explode=explodethree, labels=labelsthree, colors=colorsthree, autopct='%1.1f%%', shadow=True,startangle=140)
plt.axis('equal') # creates the pie chart like a circle
canvasbar = FigureCanvasTkAgg(fig3, master=base_frame)
canvasbar.draw()
canvasbar.get_tk_widget().place(relx=0.8, rely=0.45, anchor=CENTER) # show the barchart on the ouput window
When Click Action UI to perform Tasks.
def statement_click(root):
root.withdraw()
Statement(root)
def expense_click(root):
root.withdraw()
Expense(root)
def credit_click(root):
root.withdraw()
Credit(root)
At last here is logic for logout from Application when Click "LOGOUT" Button
def logout_click(root, login_root):
db = Util.connect_db()
cursor = db.cursor()
key_is_logined = "IS_LOGIN"
cursor.execute("UPDATE system_setting SET value = ? WHERE key = ?",
(False, key_is_logined,))
db.commit()
root.destroy()
Util.center(login_root)
login_root.deiconify()
Programmer Mirta is for learning and training. Projects might be simple to improve learning. Projects are constantly reviewed to avoid errors, but we cannot assure full correctness of all content. While using Programmer Mitra, you agree to have read and accepted our terms of use, cookie and privacy policy.
Copyright 2021 by Programmer Mitra. All Rights Reserved.
