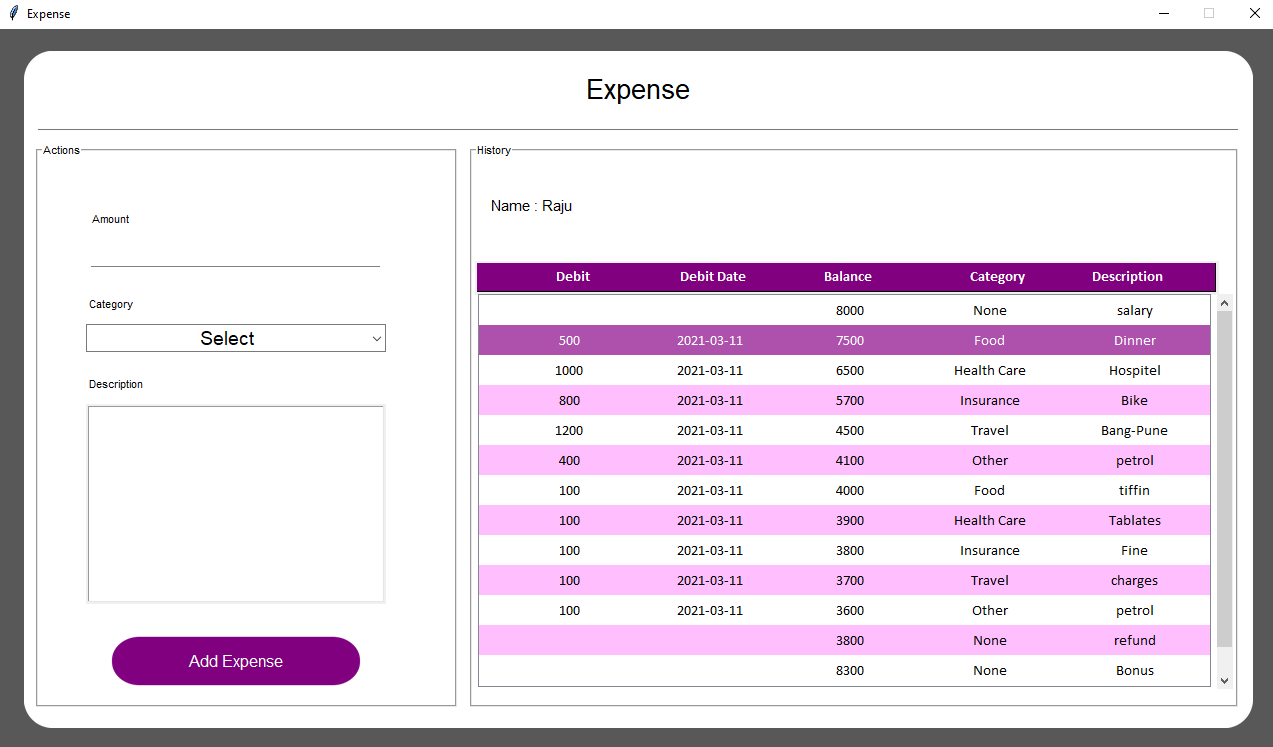

Expense
root = tk.Toplevel()
root.title("Expense")
root.configure(bg="#585858")
root.resizable(width=0, height=0)
win_width = 1280
win_height = int(1280 * 56.25 / 100)
root.geometry(str(win_width) + "x" + str(win_height))
# Get screen size
screen_width = root.winfo_screenwidth()
screen_height = root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
self.width = win_width * 96 / 100
self.height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(root, self.width, self.height, padding, cornerradius, self.color, "#585858")
bg_canvas.place(width=self.width, height=self.height, x=win_width / 2 - self.width / 2,y=win_height / 2 - self.height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.width = width
self.height = height
self.padding = padding
self.cornerradius = cornerradius
self.color = color
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b, anchor=NW)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(root,width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
#Add Heading
add_heading_label(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width, root)
def add_heading_label(base_frame, color, font_size, height, width, root):
label_heading = Label(base_frame, text="Expense", anchor=CENTER, bg=color,font=("Lucida Grande", font_size + 6))
label_heading.place(width=width * 90 / 100, height=height * 7 / 100, x=width * 5 / 100, y=height * 0.5 / 100)
#Add Line
add_line_border(self.base_frame, self.color, self.height, self.width)
def add_line_border(base_frame, color, height, width):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 10 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
button_font = add_action_frame(self.base_frame, self.color, self.height, self.width)
#Add Action Frame
def add_action_frame(base_frame, color, height, width):
afw = width * 0.35
afh = height * 0.87
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 6)
label_frame_action = LabelFrame(base_frame, text="Actions", font=button_font, pady=afw * 2 / 100,
padx=afw * 2 / 100, bg=color)
label_frame_action.place(width=afw, height=afh, x=0, y=height * 0.12)
return button_font
#ADD History
add_history_frame(self.base_frame, button_font, self.color, self.height, self.width)
def add_history_frame(base_frame, button_font, color, height, width):
sfw = width * 0.638
sfh = height * 0.87
label_frame_search = LabelFrame(base_frame, text="History", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_search.place(width=sfw, height=sfh, x=width * 0.36, y=height * 0.12)
So we are done with all frame and Now we will draw Expanse UI.
# Add Expense UI
self.amount_entrylable = CustomEntrySimple(self.base_frame, 300, 60, ("Lucida Grande", AppConstant.FONT_SIZE - 6),
self.color,"Amount")
self.amount_entrylable.place(x=50, y=150)
self.cat_label = Label(self.base_frame, text="Category", font=('Lucida Grande', AppConstant.FONT_SIZE - 6),
background=self.color, foreground="black", anchor=W)
self.cat_label.place(width=300, height=20, x=50, y=230)
self.category_entry_var = tk.StringVar()
self.category_entry = Combobox(self.base_frame, state="readonly", justify="center",textvariable=self.category_entry_var,
font=("Lucida Grande", AppConstant.FONT_SIZE))
self.category_entry['values'] = ("Select", "Food", "Health Care", "Insurance", "Travel", "Other")
self.category_entry.current(0)
self.category_entry.place(x=50, y=260, width=300)
self.des_label = Label(self.base_frame, text="Description", font=('Lucida Grande', AppConstant.FONT_SIZE - 6),
background=self.color, foreground="black", anchor=W)
self.des_label.place(width=300, height=20, x=50, y=310)
self.inputtxt = Text(self.base_frame, highlightthickness=2, bg="white", fg="black",
font=('Lucida Grande', AppConstant.FONT_SIZE - 6))
self.inputtxt.place(x=50, y=340, height=200, width=300)
self.add_expanse_button()
Here is our class CustomEntrySimple:
class CustomEntrySimple(tk.Canvas):
def __init__(self, parent, width, height, font, color, text):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=color)
self.width = width
self.height = height
self.color = color
self.create_text(6, 5, anchor=W, font=font, text=text, fill="#000000")
self.create_line(5, height - 8, width - 5, height - 8, fill="#808080")
frame = Frame(parent,width=width * 95 / 100, height=height * 50 / 100, bg=color)
self.entry = Entry(frame, bg=color, bd=0, highlightthickness=0, font=font)
self.entry.place(relwidth=1, relheight=1, x=0, y=0)
self.create_window(6, height / 2 - (height * 50 / 100) / 2, anchor=NW, window=frame)
self.update()
Create a "Add Expense" button and show it.
def add_expanse_button(self):
self.add_button = RoundedButton(self.base_frame, 250, 130 / 2.56, self.color, "images/button33.png",
"Add Expense",
font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=self.payment_click)
self.add_button.place(x=75, y=self.height * 0.88)
Now draw History UI with table use of "Treeview" of Tkinter
#user Name
self.label_name = Label(self.base_frame, font=("Lucida Grande", AppConstant.FONT_SIZE - 3), text="Name :
" + AppConstant.USER_NAME,anchor=CENTER,bg=self.color)
self.label_name.place(x=self.width / 2 - 150, y=self.height * 0.20)
#Table
style = ttk.Style()
style.layout("Custom.Treeview.Heading", [("Custom.Treeheading.cell", {'sticky': 'nswe'}),
("Custom.Treeheading.border", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.padding", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.image", {'side': 'right', 'sticky': ''}),
("Custom.Treeheading.text", {'sticky': 'we'})
]})
]}),
])
style.map("Custom.Treeview", background=[('selected', '#ad51ad')])
style.configure("Custom.Treeview", highlightthickness=0, bd=0, font=('Calibri', 11), rowheight=30)
self.table_heading()
self.tree = ttk.Treeview(self.base_frame, height=13, show='tree', style="Custom.Treeview")
self.tree.tag_configure('odd', background='#ffbfff', foreground="#000000", )
self.tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.tree.place(x=self.width / 2 - 160, y=230)
self.tree["columns"] = "1", "2", "3", "4", "5"
self.tree.column("#1", width=140)
self.tree.column("#0", width=0)
self.tree.column("#2", width=140)
self.tree.column("#3", width=140)
self.tree.column("#4", width=140)
self.tree.column("#5", width=170)
self.update_table_data()
vsb = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.tree.yview)
vsb.place(x=self.width - 24, y=230, height=395)
self.tree.configure(yscrollcommand=vsb.set)
self.tree.column("#1", anchor=tk.CENTER)
self.tree.column("#2", anchor=tk.CENTER)
self.tree.column("#3", anchor=tk.CENTER)
self.tree.column("#4", anchor=tk.CENTER)
self.tree.column("#5", anchor=tk.CENTER)
self.tree.heading("#1", text="User Id", anchor=tk.CENTER)
self.tree.heading("#2", text="Name")
self.tree.heading("#3", text="Contact No")
self.tree.heading("#4", text="Email Id")
self.tree.heading("#5", text="address")
root.attributes('-alpha', 0.0)
Util.center(root)
root.attributes('-alpha', 1.0)
We have created our own heading for History table, lets configure it.
def table_heading(self):
heading_y = 200
bg_color = "#800080"
canvas = Canvas(self.base_frame, width=740, height=30)
canvas.create_rectangle(0, 0, 740, 30, fill=bg_color)
canvas.place(x=self.width / 2 - 163, y=heading_y - 3)
user_name_label = Label(self.base_frame, text="Debit",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
user_name_label.place(x=self.width / 2 - 125, y=heading_y, width=120)
user_name_label.configure(anchor="center")
user_email_label = Label(self.base_frame, text="Debit Date",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
user_email_label.place(x=self.width / 2 + 10, y=heading_y, width=130)
user_email_label.configure(anchor="center")
user_contact_label = Label(self.base_frame, text="Balance",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
user_contact_label.place(x=self.width / 2 + 150, y=heading_y, width=120)
user_contact_label.configure(anchor="center")
user_adds_label = Label(self.base_frame, text="Category",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
user_adds_label.place(x=self.width / 2 + 290, y=heading_y, width=140)
user_adds_label.configure(anchor="center")
user_id_label = Label(self.base_frame, text="Description",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground="white")
user_id_label.place(x=self.width / 2 + 430, y=heading_y, width=120)
user_id_label.configure(anchor="center")
UI part complete, Here is logic of fetch data from database and update table.
def update_table_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute('SELECT debit, debit_date, balance, category, description FROM statement where user_id IS ?', (AppConstant.USER_ID,))
self.sql_output = cursor.fetchall()
count = 0
for data in self.sql_output:
if count % 2 == 0:
self.tree.insert('', 'end', values=data, tags=('even',))
else:
self.tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
Here is logic of add expense money add in expense sheet when click "Add Expense".
def payment_click(self):
conn = Util.connect_db()
cursor = conn.cursor()
var = ""
amount = ""
category = ""
description = ""
credit_date = datetime.today().strftime('%Y-%m-%d')
debit_date = datetime.today().strftime('%Y-%m-%d')
acc_no = AppConstant.USER_ID
balance = 0
old_credit = 0
old_debit = 0
is_amount_entered = False
is_category_entered = False
is_descrip_entered = False
if self.amount_entrylable.entry.get() == "" or self.amount_entrylable.entry.get() == " ":
var += " Amount Should not be empty, "
else:
amount = self.amount_entrylable.entry.get()
is_amount_entered = True
if self.category_entry_var.get() == "Select":
var += " Category Should not be empty, "
else:
category = self.category_entry_var.get()
is_category_entered = True
if self.inputtxt.get(1.0, "end-1c") == "" or self.inputtxt.get(1.0, "end-1c") == " ":
var += " Description Should not be empty, "
else:
description = self.inputtxt.get(1.0, "end-1c")
is_descrip_entered = True
if is_amount_entered and is_descrip_entered and is_category_entered:
cursor.execute('SELECT credit FROM statement where user_id IS ?', (acc_no,))
sql_output = cursor.fetchall()
for data in sql_output:
for items in data:
if items != "":
old_credit = old_credit + items
cursor.execute('SELECT debit FROM statement where user_id IS ?', (acc_no,))
sql_output = cursor.fetchall()
for data in sql_output:
for items in data:
if items != "":
old_debit = old_debit + items
entered_amount = int(amount)
old_balance = (old_credit - old_debit)
print(old_balance)
if old_balance >= entered_amount:
balance = old_balance - entered_amount
credit = ""
credit_date = ""
cursor.execute('INSERT INTO statement(user_id, credit, debit, balance, credit_date, debit_date, description, category) VALUES(?,?,?,?,?,?,?,?)',
(acc_no, credit, amount, balance, credit_date, debit_date, description, category))
conn.commit()
messagebox.showinfo("Success", "Success debited successfully, ")
self.amount_entrylable.entry.delete(0, 'end')
self.category_entry.current(0)
self.inputtxt.delete('1.0', END)
self.tree.delete(*self.tree.get_children())
self.update_table_data()
else:
print(var)
messagebox.showerror("showerror", "Insufficient Balance.")
else:
print(var)
messagebox.showerror("showerror", var)
At last we will manage closing of window
def on_closing():
root.destroy()
args[0].deiconify()
root.protocol("WM_DELETE_WINDOW", on_closing)
Programmer Mirta is for learning and training. Projects might be simple to improve learning. Projects are constantly reviewed to avoid errors, but we cannot assure full correctness of all content. While using Programmer Mitra, you agree to have read and accepted our terms of use, cookie and privacy policy.
Copyright 2021 by Programmer Mitra. All Rights Reserved.
