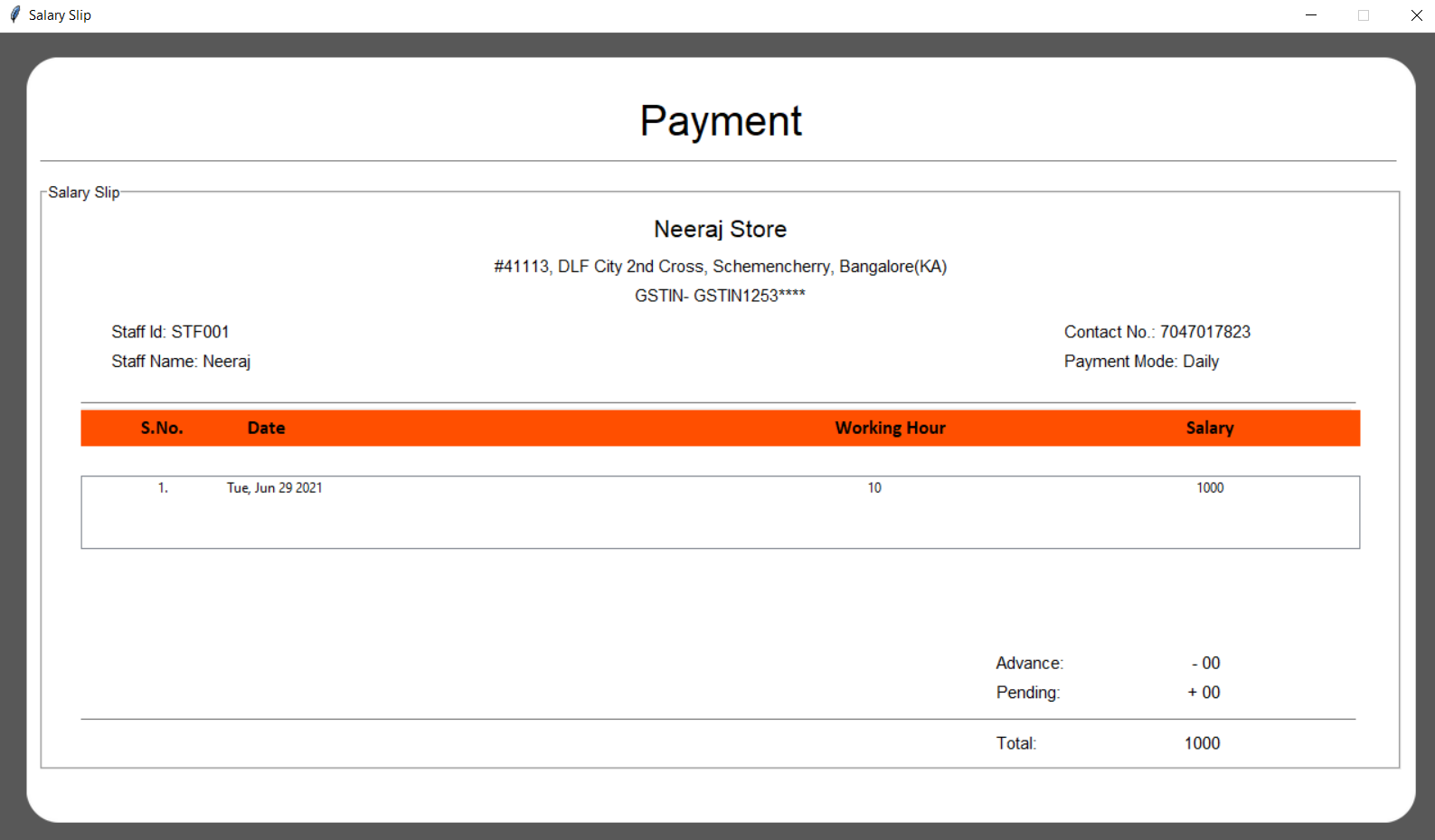

Payment
tk.Frame.__init__(self, *args, **kwargs)
self.root = tk.Toplevel()
self.root.title("Salary Slip")
color = "#FFFFFF"
self.root.configure(bg="#585858")
self.root.resizable(width=0, height=0)
win_width = 1280
win_height = int(1280 * 56.25 / 100)
self.root.geometry(str(win_width) + "x" + str(win_height))
Util.center(self.root)
# Get screen size
screen_width = self.root.winfo_screenwidth()
screen_height = self.root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
self.width = win_width * 96 / 100
self.height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(self.root, self.width, self.height, padding, corner_radius, self.color,
"#585858")
bg_canvas.place(width=self.width, height=self.height, x=win_width / 2 - self.width / 2,
y=win_height / 2 - self.height / 2)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(self.root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
# Add Heading Label
add_heading_label(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Payment", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size + 12))
label_heading.place(width=width * 90 / 100, height=60, x=width * 5 / 100, y=height * 2 / 100)
# Add Line Border
add_line_border(self.base_frame, self.color, self.height, self.width)
def add_line_border(base_frame, color, width, pos_x, pos_y):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=4, x=pos_x, y=pos_y)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
# Add Action frame
add_action_frame(self.base_frame, self.color, self.height, self.width)
def add_action_frame(base_frame, color, height, width):
afw = width * 1.0
afh = height * 0.80
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 6)
label_frame_action = LabelFrame(base_frame, text="Salary Slip", font=button_font, pady=afw * 2 / 100,
padx=afw * 2 / 100, bg=color)
label_frame_action.place(width=afw, height=afh, x=0, y=height * 0.15)
return button_font
# Shop Name Label
label_shop_name = Label(self.base_frame, text="Neeraj Store", anchor=CENTER, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE))
label_shop_name.place(width=self.width * 90 / 100, height=self.height * 7 / 100,
x=self.width * 5 / 100, y=self.height * 18 / 100)
# shop address label
shop_address = "#41113, DLF City 2nd Cross, Schemencherry, Bangalore(KA)"
label_shop_address = Label(self.base_frame, text=shop_address, anchor=CENTER, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
label_shop_address.place(width=self.width * 90 / 100, height=self.height * 7 / 100,
x=self.width * 5 / 100, y=self.height * 23 / 100)
# Shop gst label
shop_gst = "GSTIN1253****"
label_shop_gst = Label(self.base_frame, text="GSTIN- " + shop_gst, anchor=CENTER, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
label_shop_gst.place(width=self.width * 90 / 100, height=self.height * 5 / 100,
x=self.width * 5 / 100, y=self.height * 28 / 100)
# staff id label
self.label_staff_id = Label(self.base_frame, text="Staff Id : ", anchor=W, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
self.label_staff_id.place(width=self.width * 20 / 100, height=self.height * 5 / 100,
x=self.width * 5 / 100, y=self.height * 33 / 100)
# Staff contact no label
self.label_staff_phone_no = Label(self.base_frame, text="Contact No : ", anchor=W, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
self.label_staff_phone_no.place(width=self.width * 20 / 100, height=self.height * 5 / 100,
x=self.width * 75 / 100, y=self.height * 33 / 100)
# Staff name label
self.label_staff_name = Label(self.base_frame, text="Staff Name: ", anchor=W, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
self.label_staff_name.place(width=self.width * 20 / 100, height=self.height * 5 / 100,
x=self.width * 5 / 100, y=self.height * 37 / 100)
# Staff payment_mode label
self.label_staff_payment_mode = Label(self.base_frame, text="Payment Mode: ", anchor=W, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
self.label_staff_payment_mode.place(width=self.width * 20 / 100, height=self.height * 5 / 100,
x=self.width * 75 / 100, y=self.height * 37 / 100)
# Add Line Border
add_line_border(self.base_frame, self.color, self.width * 94 / 100, self.width * 3 / 100,
self.height * 45 / 100)
# Add Advance label
label_advance_text = Label(self.base_frame, text="Advance: ", anchor=W, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
label_advance_text.place(width=self.width * 15 / 100, height=self.height * 5 / 100,
x=self.width * 70 / 100, y=self.height * 78 / 100)
#Add Pending label
label_pending_text = Label(self.base_frame, text="Pending: ", anchor=W, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
label_pending_text.place(width=self.width * 15 / 100, height=self.height * 5 / 100,
x=self.width * 70 / 100, y=self.height * 82 / 100)
#Add Total label
label_total_text = Label(self.base_frame, text="Total: ", anchor=W, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
label_total_text.place(width=self.width * 15 / 100, height=self.height * 5 / 100,
x=self.width * 70 / 100, y=self.height * 89 / 100)
self.calculate_salary()
self.show_salary_table()
#Add Line Border
add_line_border(self.base_frame, self.color, self.width * 94 / 100, self.width * 3 / 100,
self.height * 88 / 100)
def show_salary_table(self):
self.tree = ttk.Treeview(self.base_frame, columns=("c1", "c2", "c3", "c4", "c5"),
selectmode="extended", show='tree')
self.tree.place(width=self.width * 94 / 100, height=self.height * 10 / 100,
x=self.width * 3 / 100, y=self.height * 55 / 100)
self.tree.heading("#1", text="S.No.", anchor=tk.CENTER)
self.tree.heading("#2", text="Date", anchor=tk.W)
self.tree.heading("#3", text="Working Hours", anchor=tk.CENTER)
self.tree.heading("#4", text="Salary", anchor=tk.E)
self.tree.column("#0", width=0, anchor=tk.CENTER)
self.tree.column("#1", width=int(self.width * 8 / 100), anchor=tk.CENTER)
self.tree.column("#2", width=int(self.width * 42 / 100), anchor=tk.W)
self.tree.column("#3", width=int(self.width * 10 / 100), anchor=tk.CENTER)
self.tree.column("#4", width=int(self.width * 20 / 100), anchor=tk.E)
self.tree.column("#5", width=int(self.width * 10 / 100), anchor=tk.E)
self.get_table_data(AppConstant.STAFF_ID)
self.product_table_heading()
We have created our own heading for table, lets configure it.
def product_table_heading(self):
heading_y = self.height * 46 / 100
bg_color = "#FF4F00"
text_color = "#000000"
canvas = Canvas(self.base_frame, width=self.width * 93 / 100, height=self.height * 5 / 100)
canvas.create_rectangle(0, 0, self.width * 94 / 100, self.height * 5 / 100, fill=bg_color)
canvas.place(height=self.height * 5 / 100,
x=self.width * 3 / 100, y=heading_y - 2)
label_sno = ttk.Label(self.base_frame, text="S.No.", anchor="center",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'),
background=bg_color, foreground=text_color)
label_sno.place(width=self.width * 12 / 100, height=self.height * 5 / 100,
x=self.width * 3 / 100, y=heading_y)
label_date = ttk.Label(self.base_frame, text="Date", anchor="w",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
label_date.place(width=self.width * 35 / 100, height=self.height * 5 / 100,
x=self.width * 15 / 100, y=heading_y)
label_working_hour = ttk.Label(self.base_frame, text="Working Hour", anchor="center",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
label_working_hour.place(width=self.width * 25 / 100, height=self.height * 5 / 100,
x=self.width * 50 / 100, y=heading_y)
label_salary = ttk.Label(self.base_frame, text="Salary", anchor="center",
font=('Calibri', AppConstant.FONT_SIZE - 3, 'bold'), background=bg_color,
foreground=text_color)
label_salary.place(width=self.width * 22 / 100, height=self.height * 5 / 100,
x=self.width * 75 / 100, y=heading_y)
Here we retrieve data from database
def get_table_data(self, staff_id):
db = Util.connect_db()
cursor = db.cursor()
cursor.execute('SELECT * FROM staff_data WHERE staff_id =?', (staff_id,))
sql_output = cursor.fetchall()
date = dt.datetime.now()
format_date = f"{date:%a, %b %d %Y}"
total_amount = sql_output[0][5] * 100
total_advance = 0
total_pending = 0
total_salary = total_amount + total_pending - total_advance
self.label_total.config(text=str(total_amount))
self.tree.insert("", 'end', values=("1.", format_date, sql_output[0][5], total_amount))
self.label_staff_id.config(text="Staff Id: " + str(sql_output[0][0]))
self.label_staff_name.config(text="Staff Name: " + str(sql_output[0][1]))
self.label_staff_phone_no.config(text="Contact No.: " + str(sql_output[0][2]))
self.label_staff_payment_mode.config(text="Payment Mode: " + str(sql_output[0][4]))
Here we calculate the salry of the employee
def calculate_salary(self):
self.label_advance = Label(self.base_frame, text="- " + "00", anchor=E, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
self.label_advance.place(width=self.width * 10 / 100, height=self.height * 5 / 100,
x=self.width * 77 / 100, y=self.height * 78 / 100)
self.label_pending = Label(self.base_frame, text="+ " + "00", anchor=E, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
self.label_pending.place(width=self.width * 10 / 100, height=self.height * 5 / 100,
x=self.width * 77 / 100, y=self.height * 82 / 100)
self.label_total = Label(self.base_frame, text="=10000", anchor=E, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE - 5))
self.label_total.place(width=self.width * 10 / 100, height=self.height * 5 / 100,
x=self.width * 77 / 100, y=self.height * 89 / 100)
At last we will manage closing of window
def on_closing():
self.root.destroy()
args[0].deiconify()
self.root.protocol("WM_DELETE_WINDOW", on_closing)
