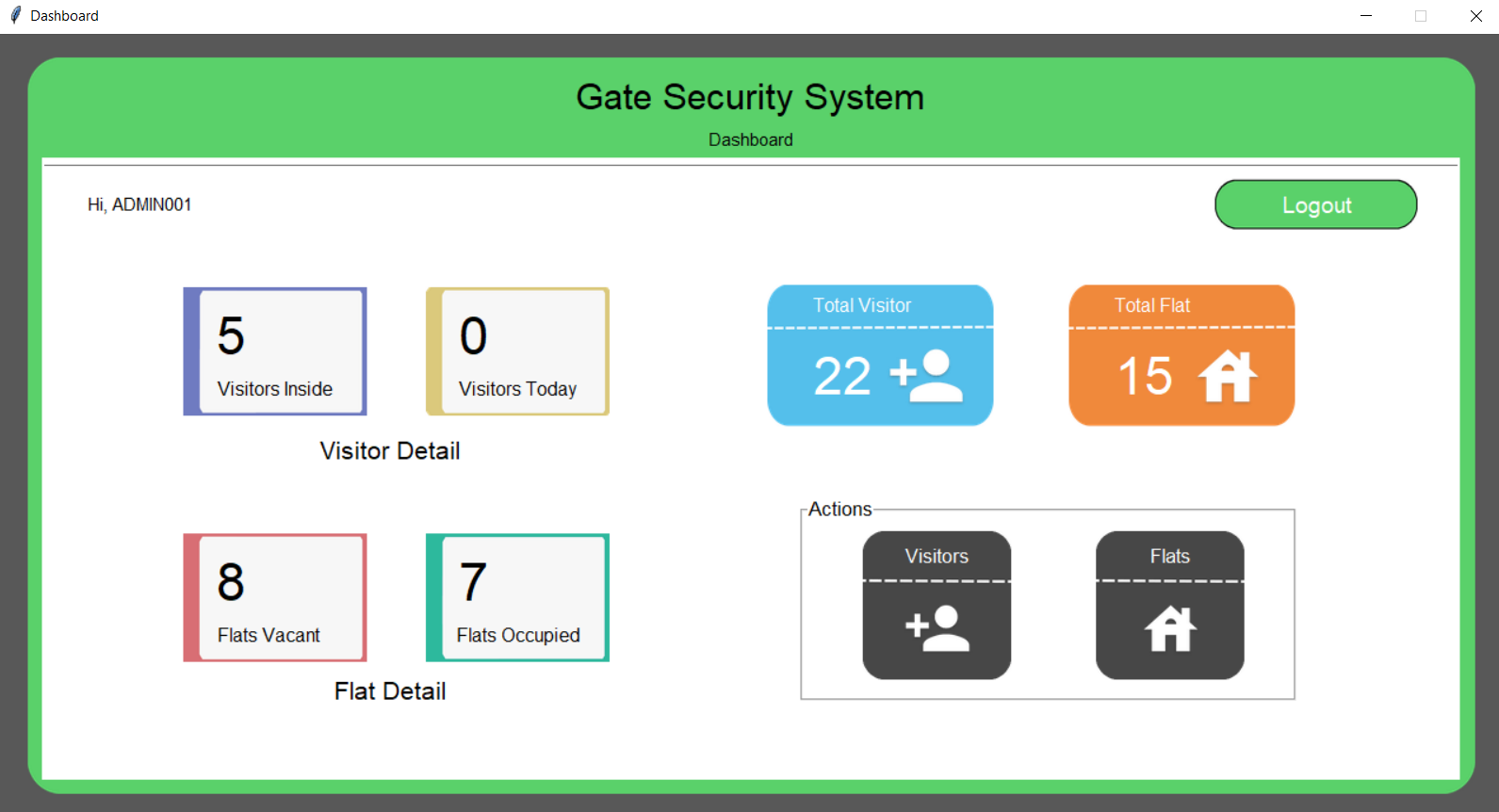

Dashboard
self.root = tk.Toplevel()
self.root.title("Dashboard")
self.root.configure(bg="#585858")
self.root.resizable(width=0, height=0)
win_width = 1280
print(1280 * 56.25 / 100)
win_height = int(1280 * 52 / 100)
self.root.geometry(str(win_width) + "x" + str(win_height))
Util.center(self.root)
login_root = None
if args.__sizeof__() > 0:
login_root = args[0]
# Get screen size
screen_width = self.root.winfo_screenwidth()
screen_height = self.root.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
width = win_width * 96 / 100
height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(self.root, width, height, padding, cornerradius, color_2, "#585858")
bg_canvas.place(width=width, height=height, x=win_width / 2 - width / 2, y=win_height / 2 - height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.width = width
self.height = height
self.padding = padding
self.cornerradius = cornerradius
self.color = color
original = Image.open("images/corner_green.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
# original = Image.open("images/corner.png")
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)--
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b,
anchor=NW)
self.width = width * 98 / 100
self.height = height * 96 / 100
self.base_frame = Frame(self.root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(width *1/ 100, height * 2 / 100, anchor=NW, window=self.base_frame)
# Add Heading Name
add_heading_label(self.base_frame, color_2, AppConstant.FONT_SIZE, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Gate Security System", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size + 6))
label_heading.place(width=width , height=height * 7 / 100, x=0, y=0)
label_dashboard = Label(base_frame, text="Dashboard", anchor=CENTER, bg=color,
font=("Lucida Grande", font_size - 6))
label_dashboard.place(width=width , height=height * 5 / 100, x=0, y=height * 7 / 100)
visitor_heading = Label(self.base_frame, text="Visitor Detail", anchor=CENTER, bg=self.color,
font=("Lucida Grande", AppConstant.FONT_SIZE + 4))
visitor_heading.place(width=width*10/100, height=height * 7 / 100, x=width*10/100, y=height * 28 / 100)
# Add line
add_line_border(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width, self.root, login_root)
def add_line_border(base_frame, color, font_size, height, width, root, login_root):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 13 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
frame_name = Frame(base_frame, bd=0, background=color)
frame_name.place(width=width * 94 / 100, x=width * 3 / 100, y=height*15/100)
frame_name.grid_propagate(False)
label_name = Label(frame_name, font=("Lucida Grande", font_size - 6), text="Hi, " + AppConstant.STAFF_NAME,
anchor=CENTER, background=color)
label_name.pack(side="left", fill=None, expand=False)
btn_size=width/7
button_logout = RoundedButton(frame_name, btn_size, btn_size / 4, color, "images/button3.png", "Logout",
font=("Lucida Grande", int(font_size*85/100)),
command= lambda :logout_click(root, login_root))
button_logout.pack(side="right", fill=None, expand=False)
So we are done with all frame and now draw Deskframe UI and logic for get data in Deskframe.
self.add_desk_frame()
def add_desk_frame(self):
desk_button_wid = self.width * 16 / 100
desk_button_hgt = self.width * 10 / 100
print(str(desk_button_wid) + "x" + str(desk_button_hgt))
frame_desk_base = Frame(self.base_frame, bg=self.color)
frame_desk_base.place(x=self.width * 48.5 / 100, y=self.height * 30 / 100)
desk_font = ("Lucida Grande", int(AppConstant.FONT_SIZE*75/100))
desk_font_count = ("Lucida Grande", (AppConstant.FONT_SIZE*2))
db = Util.connect_db()
cursor = db.cursor()
cursor.execute('SELECT visitor_id FROM "visitor_detail"')
count = cursor.fetchall()
DeskView(frame_desk_base, desk_button_wid, desk_button_hgt, desk_font, "Total Visitor", str(len(count)),
desk_font_count, "images/desk_light_blue.png", "images/add_student.png", self.color).grid(row=0,column=2,padx=32)
cursor.execute('SELECT id FROM "flat_detail"')
count = cursor.fetchall()
DeskView(frame_desk_base, desk_button_wid, desk_button_hgt, desk_font, "Total Flat", str(len(count)),
desk_font_count, "images/desk_orange.png", "images/home.png", self.color).grid(row=0, column=3,
count_desk_base = Frame(self.base_frame, bg=self.color)
count_desk_base.place(x=self.width * 10 / 100, y=self.height * 22 / 100)
desk_font = ("Lucida Grande", int(AppConstant.FONT_SIZE * 75 / 100))
desk_font_count = ("Lucida Grande", (AppConstant.FONT_SIZE * 2))
icon_size = self.width * 13 / 100
padY=self.height/12
cursor.execute('SELECT * FROM "visitor_detail" WHERE status IS ?', ("IN",))
count = cursor.fetchall()
DeskCountView(count_desk_base, icon_size, icon_size, desk_font, "Visitors Inside", str(len(count)),
desk_font_count, "images/count_design_voilet.png", "images/add_student.png", self.color).grid(row=0, column=0, pady=padY)
cursor.execute('SELECT * FROM "flat_detail" WHERE flat_status IS ?', ("Vacant",))
count = cursor.fetchall()
DeskCountView(count_desk_base, icon_size, icon_size, desk_font, "Flats Vacant ", str(len(count)),
desk_font_count, "images/count_design_maroon.png", "images/add_student.png", self.color).grid(
row=1, column=0, pady=padY)
today_date="%"+Util.get_date(self)+"%"
cursor.execute("SELECT * FROM 'visitor_detail' WHERE entry_time LIKE ?", (today_date,))
count = cursor.fetchall()
DeskCountView(count_desk_base, icon_size, icon_size, desk_font, "Visitors Today",str(len(count)),
desk_font_count, "images/count_design_cream.png", "images/add_student.png", self.color).grid(
row=0, column=1,padx=50, pady=padY)
cursor.execute('SELECT * FROM "flat_detail" WHERE flat_status IS ?', ("Occupied",))
count = cursor.fetchall()
DeskCountView(count_desk_base, icon_size, icon_size, desk_font, "Flats Occupied", str(len(count)),
desk_font_count, "images/count_design_cyan.png", "images/add_student.png", self.color).grid(
row=1, column=1, padx=50, pady=padY)
visitor_heading = Label(self.base_frame, text="Visitor Detail", anchor=CENTER, bg=self.color,
font=("Lucida Grande", int(AppConstant.FONT_SIZE * 95 / 100)))
visitor_heading.place(width=self.width * 15 / 100, height=self.height * 7 / 100, x=self.width * 17 / 100, y=self.height * 50 / 100)
flat_heading = Label(self.base_frame, text="Flat Detail", anchor=CENTER, bg=self.color,
font=("Lucida Grande", int(AppConstant.FONT_SIZE * 95 / 100)))
flat_heading.place(width=self.width * 15 / 100, height=self.height * 7 / 100, x=self.width * 17 / 100, y=self.height * 84 / 100)
self.add_action_frame()
def add_action_frame(self):
lfw = self.width * 35 / 100
lfbw = lfw * 30 / 100
# print(str(lfbw))
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 4)
labelframe = LabelFrame(self.base_frame, text="Actions",
font=font.Font(family="Lucida Grande", size=13, weight='normal'),
pady=lfw * 2 / 100, padx=lfw * 2 / 100, bg=self.color)
labelframe.place(width=lfw, height=lfbw + lfw * 11 / 100, x=self.width * 71/100 - lfw / 2, y=self.height * 60 / 100)
button_add_book = AddActionFrame(labelframe, lfbw, lfbw, self.color, "Visitors",
button_font, "images/add_student.png",
command=lambda: add_visitors_click(self.root, self))
button_add_student = AddActionFrame(labelframe, lfbw, lfbw, self.color, "Flats",
button_font, "images/home.png", command=lambda: add_flats_click(self.root, self))
button_add_book.grid(row=0, column=1, padx=lfbw * 34 / 100)
button_add_student.grid(row=0, column=2, padx=lfbw * 23/ 100)
Here the code of Click on a action frame.
def add_visitors_click(root, self):
root.withdraw()
AddVisitor(root, self)
def add_flats_click(root, self):
root.withdraw()
AddFlat(root, self)
Here the code of Click on a "LOGOUT" Button.
def logout_click(root, login_root):
db = Util.connect_db()
cursor = db.cursor()
key_is_logined = "IS_LOGGED_IN"
cursor.execute("UPDATE system_setting SET value = ? WHERE key = ?", (False, key_is_logined,))
db.commit()
root.destroy()
Util.center(login_root)
login_root.deiconify()
