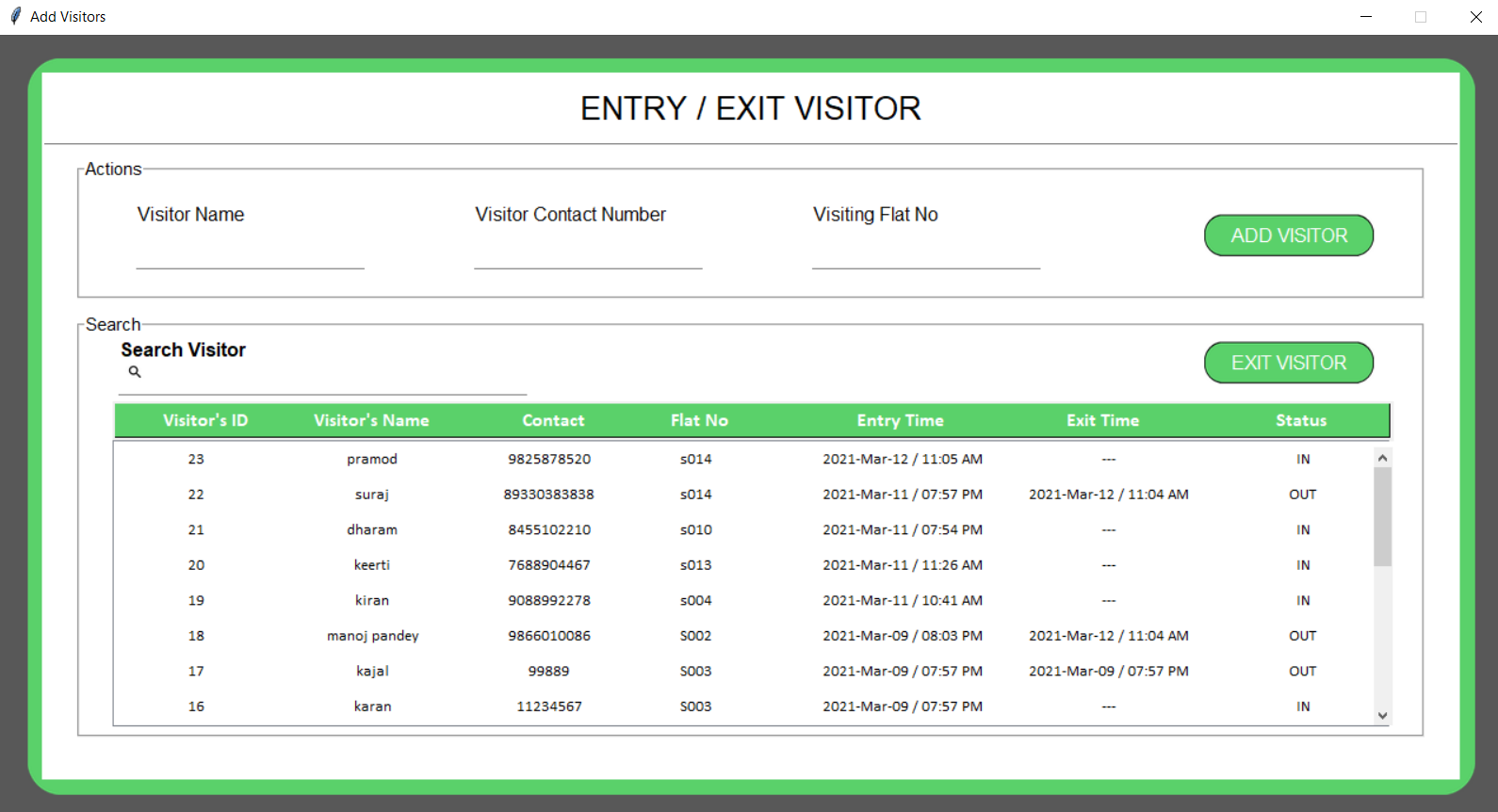

Visitors Details
root = tk.Toplevel()
root.title("Add Visitors")
root.configure(bg="#585858")
root.resizable(width=0, height=0)
win_width = 1280
print(1280 * 56.25 / 100)
win_height = int(1280 * 52 / 100)
root.geometry(str(win_width) + "x" + str(win_height))
Util.center(root)
# Get screen size
screen_width = self.winfo_screenwidth()
screen_height = self.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
self.width = win_width * 96 / 100
self.height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(root, self.width, self.height, padding, cornerradius, color_2, "#585858")
bg_canvas.place(width=self.width, height=self.height, x=win_width / 2 - self.width / 2,
y=win_height / 2 - self.height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.width = width
self.height = height
self.padding = padding
self.cornerradius = cornerradius
self.color = color
original = Image.open("images/corner_green.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
# original = Image.open("images/corner.png")
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b,
anchor=NW)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
# Add Heading Name
add_heading_label(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="ENTRY / EXIT VISITOR", anchor=CENTER, bg=color,
font=("Lucida Grande", int(font_size * 120 / 100)))
label_heading.place(width=width * 90 / 100, height=height * 7 / 100, x=width * 5 / 100, y=height * 1.5 / 100)
# Add line
add_line_border(self.base_frame, self.color, self.height, self.width)
def add_line_border(base_frame, color, height, width):
line_canvas = Canvas(base_frame, bg=color, borderwidth=0, relief="flat", highlightthickness=0)
line_canvas.place(width=width - 4, height=5, x=2, y=height * 10 / 100)
line_canvas.create_line(0, 0, width, 0, fill="#787878")
action_frame = add_action_frame(self, self.base_frame, self.color, self.height, self.width)
def add_action_frame(self, base_frame, color, height, width):
afw = width * 95 / 100
afh = height * 20 / 100
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 6)
label_frame_action = LabelFrame(base_frame, text="Actions", font=button_font, pady=afw * 2 / 100,
padx=afw * 2 / 100, bg=color)
label_frame_action.place(width=afw, height=afh, x=width * 2.5 / 100, y=height * 0.12)
return label_frame_action
self.search_frame = add_search_frame(self.base_frame, self.color, self.height, self.width)
def add_search_frame(base_frame, color, height, width):
sfw = width * 95 / 100
sfh = height * 60 / 100
button_font = ("Lucida Grande", AppConstant.FONT_SIZE - 6)
label_frame_search = LabelFrame(base_frame, text="Search", font=button_font, pady=sfw * 2 / 100,
padx=sfw * 2 / 100, bg=color)
label_frame_search.place(width=sfw, height=sfh, x=width * 2.5 / 100, y=height * 0.12 + height * 22 / 100)
Now We create Add Visitor UI in Action Frame.
self.visitor_name = CustomEntrySimple(action_frame, entry_width, entry_height, ("Lucida Grande", text_size),
self.color,
"Visitor Name")
self.visitor_name.place(x=20, y=pos_y)
self.visitor_contact_number = CustomEntrySimple(action_frame, entry_width, entry_height,
("Lucida Grande", text_size), self.color,
"Visitor Contact Number")
self.visitor_contact_number.place(x=entry_width * 3 / 2, y=pos_y)
self.visiting_flat_no = CustomEntrySimple(action_frame, entry_width, entry_height, ("Lucida Grande", text_size),
self.color,
"Visiting Flat No")
self.visiting_flat_no.place(x=2 * entry_width + entry_width * 90 / 100, y=pos_y)
self.visiting_flat_no.entry.bind('', self.search_flat)
self.show_add_visitor_button()
Here is our class CustomEntrySimple:
class CustomEntrySimple(tk.Canvas):
def __init__(self, parent, width, height, font, color, text):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=color)
self.width = width
self.height = height
self.color = color
self.create_text(6, 6, anchor=W, font=font, text=text, fill="#000000")
self.create_line(5, height - 8, width - 5, height - 8, fill="#808080")
frame = Frame(parent, width=width * 95 / 100, height=height * 50 / 100)
self.entry = Entry(frame, bg=color, bd=0, highlightthickness=0, font=font)
self.entry.place(relwidth=1, relheight=1, x=0, y=0)
self.create_window(6, height / 2 - (height * 50 / 100) / 2, anchor=NW, window=frame)
self.update()
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
Create a "ADD VISITOR" button in Action Frame.
def show_add_visitor_button(self):
self.add_button = RoundedButton(self.base_frame, self.width * 12 / 100, self.width * 3 / 100, self.color,
"images/button3.png",
"ADD VISITOR",
font=("Lucida Grande", int(AppConstant.FONT_SIZE * 75 / 100)),
command=self.add_visitor_click)
self.add_button.place(x=self.width * 82 / 100, y=self.height * 20 / 100)
class RoundedButton(tk.Canvas):
def __init__(self, parent, width, height, bg, icon_path, text, font, command=None):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.command = command
self.width = width
self.height = height
self.text = text
self.font = font
original = Image.open(icon_path)
resized = original.resize((int(width), int(height)), Image.ANTIALIAS)
self.image = ImageTk.PhotoImage(resized)
self.shape(width, height)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
self.bind("", self._on_press)
self.bind("", self._on_release)
def shape(self, width, height):
self.create_image(0, 0, image=self.image, anchor=NW)
self.create_text(width / 2, height / 2, anchor=CENTER, font=self.font, text=self.text, fill="#FFFFFF")
def shape_press(self, width, height):
self.create_image(0, 0, image=self.image, anchor=NW)
self.create_text(width / 2, height / 2, anchor=CENTER, font=self.font, text=self.text, fill="#000000")
def _on_press(self, event):
self.configure(relief="sunken")
self.delete("all")
# self.update()
self.shape_press(self.width, self.height)
def _on_release(self, event):
self.configure(relief="raised")
self.delete("all")
self.shape(self.width, self.height)
if self.command is not None:
self.command()
self.ce_visitor_var = CustomEntry(self.base_frame, entry_width * 7 / 4, entry_height * 88 / 100, 10, 2, self.color,
"Search Visitor",
"images/ic_search.png")
self.ce_visitor_var.place(x=self.width * 5 / 100, y=self.height * 38 / 100)
self.ce_visitor_var.entry.bind('', self.search_visitor)
Here's the logic to search data in table
def search_visitor(self, *arg):
if self.ce_book_var.entry.get() != "":
self.tree.delete(*self.tree.get_children())
conn = Util.connect_db()
cursor = conn.cursor()
# cursor.execute(
# 'SELECT visitor_id, visitor_name, visitor_contact_no, visiting_flat_no, entry_time, exit_time, date FROM visitor_detail')
cursor.execute(
"SELECT visitor_id, visitor_name, visitor_contact_no, visiting_flat_no, entry_time, exit_time FROM `visitor_detail` WHERE `visitor_name` LIKE ? OR `visitor_contact_no` LIKE ?",
('%' + str(self.ce_visitor_var.entry.get()) + '%',
'%' + str(self.ce_visitor_var.entry.get()) + '%'))
fetch = cursor.fetchall()
count = 0
for data in fetch:
if count % 2 == 0:
self.tree.insert('', 'end', values=data, tags=('even',))
else:
self.tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
cursor.close()
conn.close()
else:
self.reset_visitor()
def reset_visitor(self):
self.tree.delete(*self.tree.get_children())
self.update_table_data()
class Util:
@staticmethod
def connect_db():
db = None
try:
db = sql.connect("securitySystem.db")
return db
except sql.Error as error:
print("Failed to insert data into sqlite table", error)
Fetch data from database and show it in table form with the use of "Treeview" of Tkinter.
style = ttk.Style()
# style.element_create("Custom.Treeheading.border", "from", "default")
style.layout("Custom.Treeview.Heading", [
("Custom.Treeheading.cell", {'sticky': 'nswe'}),
("Custom.Treeheading.border", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.padding", {'sticky': 'nswe', 'children': [
("Custom.Treeheading.image", {'side': 'right', 'sticky': ''}),
("Custom.Treeheading.text", {'sticky': 'we'})
]})
]}),
])
# style.configure("Custom.Treeview.Heading", background="blue", foreground="red", relief="flat")
style.map("Custom.Treeview.Heading", relief=[('active', 'groove'), ('pressed', 'sunken')])
style.configure("Custom.Treeview", highlightthickness=0, bd=0,
font=('Calibri', int(AppConstant.FONT_SIZE * 60 / 100)), rowheight=30)
self.table_heading()
# style.map('Custom.Treeview', background=[], foreground=[])
list_box_width = self.width * 90 / 100
heading_width = list_box_width / 8
self.tree = ttk.Treeview(self.base_frame, height=8, show='tree', style="Custom.Treeview")
self.tree.tag_configure('odd', background='#DFEBF6', foreground="#000000", )
self.tree.tag_configure('even', background='#FFFFFF', foreground="#000000", )
self.tree.place(x=self.width * 5 / 100, y=self.height * 52 / 100, width=list_box_width)
self.tree["columns"] = "0", "1", "2", "3", "4", "5", "6"
self.tree.column("#0", width=0)
self.tree.column("#1", width=100)
self.tree.column("#3", width=100)
self.tree.column("#4", width=150)
self.tree.column("#5", width=200)
self.tree.column("#6", width=150)
vsby = ttk.Scrollbar(self.base_frame, orient="vertical", command=self.tree.yview)
vsby.place(x=self.width * 93.8 / 100, y=self.height * 53 / 100, height=self.height * 39.4 / 100)
self.tree.configure(yscrollcommand=vsby.set)
self.update_table_data()
self.tree.column("#0", anchor=tk.CENTER)
self.tree.column("#1", anchor=tk.CENTER)
self.tree.column("#2", anchor=tk.CENTER)
self.tree.column("#3", anchor=tk.CENTER)
self.tree.column("#4", anchor=tk.CENTER)
self.tree.column("#5", anchor=tk.CENTER)
self.tree.column("#6", anchor=tk.CENTER)
self.tree.column("#7", anchor=tk.CENTER)
self.tree.bind('<>', self.exit_visitor_button())
# Util.get_time(self)
root.attributes('-alpha', 0.0)
root.attributes('-alpha', 1.0)
We have created our own heading for table, lets configure it.
def table_heading(self):
heading_y = self.height * 47 / 100
bg_color = "#5ad16a"
text_color = "#ffffff"
canvas_width = self.width * 90 / 100
text_size = int(AppConstant.FONT_SIZE * 73 / 100)
canvas = Canvas(self.base_frame, width=canvas_width, height=30)
canvas.create_rectangle(0, 0, canvas_width, 30, fill=bg_color)
canvas.place(x=self.width * 5 / 100, y=heading_y - 3)
heading_width = canvas_width / 8
visitor_id_label = Label(self.base_frame, text="Visitor's ID", font=('Calibri', text_size, 'bold'),
background=bg_color,
foreground=text_color)
visitor_id_label.place(x=self.width * 6 / 100, y=heading_y, width=heading_width)
visitor_id_label.configure(anchor="center")
visitor_name_label = Label(self.base_frame, text="Visitor's Name", font=('Calibri', text_size, 'bold'),
background=bg_color,
foreground=text_color)
visitor_name_label.place(x=heading_width + self.width * 6 / 100 + 5, y=heading_y, width=heading_width)
visitor_name_label.configure(anchor="center")
contact_label = Label(self.base_frame, text="Contact", font=('Calibri', text_size, 'bold'), background=bg_color,
foreground=text_color)
contact_label.place(x=2 * heading_width + self.width * 8 / 100, y=heading_y, width=heading_width)
contact_label.configure(anchor="center")
#
flat_number = Label(self.base_frame, text="Flat No", width=6, font=('Calibri', text_size, 'bold'),
background=bg_color,
foreground=text_color)
flat_number.place(x=3 * heading_width + self.width * 7 / 100, y=heading_y, width=heading_width)
flat_number.configure(anchor="center")
entery_number = Label(self.base_frame, text="Entry Time", font=('Calibri', text_size, 'bold'),
background=bg_color,
foreground=text_color)
entery_number.place(x=4 * heading_width + self.width * 10 / 100, y=heading_y, width=heading_width)
entery_number.configure(anchor="center")
exit_time = Label(self.base_frame, text="Exit Time", font=('Calibri', text_size, 'bold'), background=bg_color,
foreground=text_color)
exit_time.place(x=5 * heading_width + self.width * 13 / 100, y=heading_y, width=heading_width)
exit_time.configure(anchor="center")
date_label = Label(self.base_frame, text="Status", font=('Calibri', text_size, 'bold'),
background=bg_color,
foreground=text_color)
date_label.place(x=6 * heading_width + self.width * 15.7 / 100, y=heading_y, width=heading_width)
date_label.configure(anchor="center")
UI part is completed, lets move to funtionality. First we need to add click on "ADD VISITOR" button.
def add_visitor_click(self):
var = ""
visitor_name = ""
visitor_contact = ""
visiting_flat_no = ""
is_name_entered = False
is_contact_entered = False
is_flat_no_entered = False
status = "IN"
if self.visiting_flat_no.entry.get() == "" or self.visiting_flat_no.entry.get() == " ":
var += "Flat Should not be empty, "
else:
visiting_flat_no = self.visiting_flat_no.entry.get()
is_flat_no_entered = True
if self.visitor_name.entry.get() == "" or self.visitor_name.entry.get() == " ":
var += "Visitor Name Should not be empty, "
else:
visitor_name = self.visitor_name.entry.get()
is_name_entered = True
if self.visitor_contact_number.entry.get() == "" or self.visitor_contact_number.entry.get() == " ":
var += "Visitor Contact Should not be empty, "
else:
visitor_contact = self.visitor_contact_number.entry.get()
is_contact_entered = True
if is_name_entered and is_contact_entered and is_flat_no_entered:
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute(
'INSERT INTO visitor_detail(visitor_name, visitor_contact_no, visiting_flat_no, entry_time, exit_time, status) VALUES(?,?,?,?,?,?)',
(visitor_name, visitor_contact, visiting_flat_no, str(Util.get_time(self)), "---", status))
conn.commit()
messagebox.showinfo("Success", "Visitor has been added successfully")
self.visiting_flat_no.entry.delete(0, 'end')
self.visitor_contact_number.entry.delete(0, 'end')
self.visitor_name.entry.delete(0, 'end')
self.visitor_name.entry.focus()
(id_count, key,))
self.tree.delete(*self.tree.get_children())
self.update_table_data()
else:
messagebox.showerror("showerror", var)
def update_table_data(self):
conn = Util.connect_db()
cursor = conn.cursor()
# cursor.execute('SELECT visitor_id, visitor_name, visitor_contact_no, visiting_flat_no, entry_time, exit_time, date FROM visitor_detail WHERE IS_INSIDE = ? ORDER BY visitor_id DESC', (visitor_inside))
cursor.execute(
'SELECT visitor_id, visitor_name, visitor_contact_no, visiting_flat_no, entry_time, exit_time, status FROM visitor_detail ORDER BY visitor_id DESC')
self.sql_output = cursor.fetchall()
count = 0
for data in self.sql_output:
if count % 2 == 0:
self.tree.insert('', 'end', values=data, tags=('even',))
else:
self.tree.insert('', 'end', values=data, tags=('odd',))
count = count + 1
For Exit Visitor we need show a button "EXIT VISITOR".
def exit_visitor_button(self, *args):
self.delete_button = RoundedButton(self.base_frame, self.width * 12 / 100, self.width * 3 / 100, self.color,
"images/button3.png",
"EXIT VISITOR",
font=("Lucida Grande", int(AppConstant.FONT_SIZE * 75 / 100)),
command=self.exit_visitor)
self.delete_button.place(x=self.width * 82 / 100, y=self.height * 38 / 100)
After EXIT Button UI completed move on it's click functionality
def exit_visitor(self):
cur_item = self.tree.focus()
if self.tree.item(cur_item)["values"]:
visitor_id = self.tree.item(cur_item)["values"][0]
visitor_name = self.tree.item(cur_item)["values"][1]
response = messagebox.askokcancel("Are you sure?", "Do you want to exit " + visitor_name + " ?")
if response:
status = "OUT"
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute("UPDATE visitor_detail SET status = ?, exit_time = ?WHERE visitor_id = ?",
(status, str(Util.get_time(self)), visitor_id,))
conn.commit()
# conn = Util.connect_db()
# cursor = conn.cursor()
# cursor.execute("DELETE FROM visitor_detail WHERE visitor_id = ?", (visitor_id,))
# conn.commit()
self.tree.delete(*self.tree.get_children())
self.update_table_data()
else:
messagebox.askokcancel("Error !", "Please Select a Visitor.")
At last we will manage closing of window
def on_closing():
root.destroy()
if len(args) > 1:
from dashboard.DashboardWindow import DashboardWindow
DashboardWindow.add_desk_frame(args[1])
args[0].deiconify()
root.protocol("WM_DELETE_WINDOW", on_closing)
Programmer Mirta is for learning and training. Projects might be simple to improve learning. Projects are constantly reviewed to avoid errors, but we cannot assure full correctness of all content. While using Programmer Mitra, you agree to have read and accepted our terms of use, cookie and privacy policy.
Copyright 2021 by Programmer Mitra. All Rights Reserved.
