Login
root = self.winfo_toplevel()
root.title("Login")
root.configure(bg="#585858")
root.resizable(width=0, height=0)
win_width = 1280
win_height = int(1280 * 56.25 / 100)
root.geometry(str(win_width) + "x" + str(win_height))
root.attributes('-alpha', 0.0)
Util.center(root)
root.attributes('-alpha', 1.0)
width = 420
height = 550
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(root, width, height, padding, corner_radius, color, "#585858")
bg_canvas.place(width=width, height=height, x=win_width / 2 - width / 2, y=win_height / 2 - height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.width = width
self.height = height
self.padding = padding
self.cornerradius = cornerradius
self.color = color
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b,anchor=NW)
width = width * 92 / 100
height = height * 92 / 100
base_frame = Frame(width=width, height=height, bg=color)
bg_canvas.create_window(width * 4 / 100, height * 4 / 100, anchor=NW, window=base_frame)

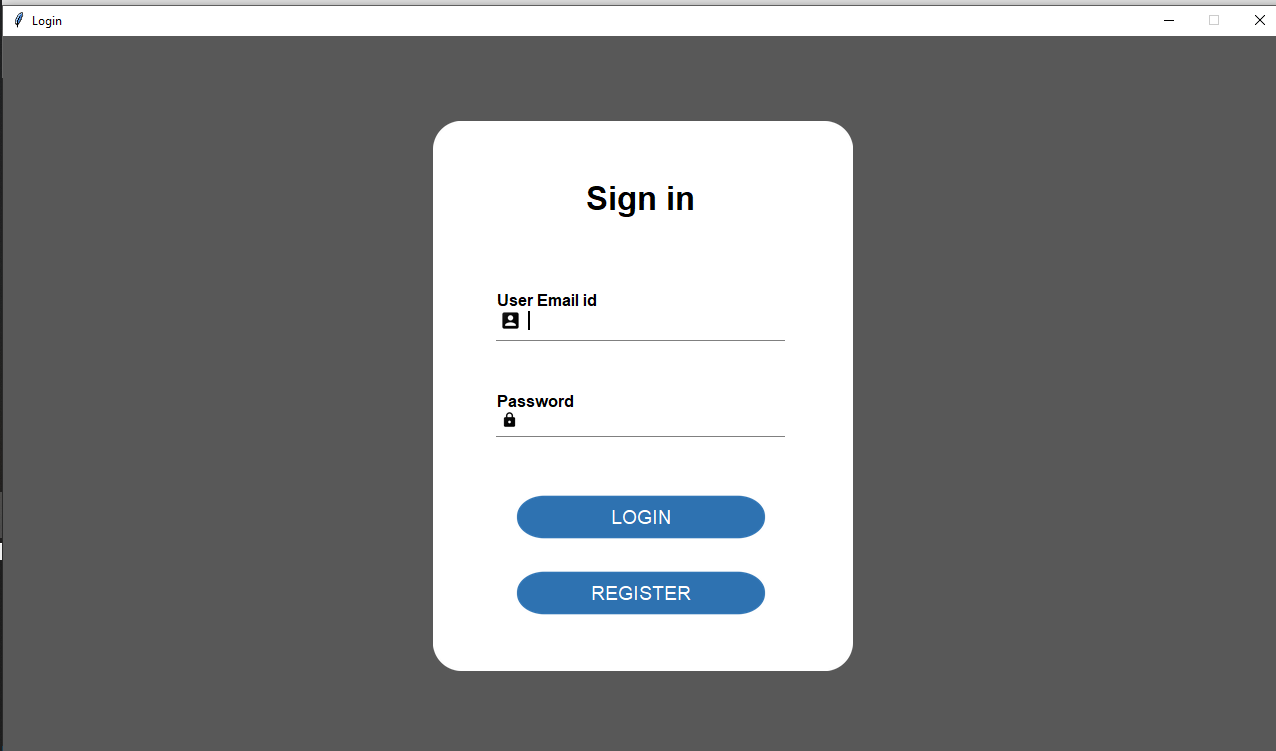

So we are done with all frame and background UI. Now we will create Loging UI.
label_login = Label(base_frame, text="Sign in", font=font.Font(family="Lucida Grande", size=25, weight='bold'),bg=color)
label_login.place(width=width - 20, x=10, y=height * 0.07)
self.ce_username = CustomEntry(base_frame, 300, 55, 10, 2, color, "User Email id", "images/ic_user_black.png")
self.ce_username.place(x=width / 2 - 150, y=height * 0.30)
self.ce_pwd = CustomEntryPWD(base_frame, 300, 50, 10, 2, color, "Password", "images/ic_lock_black.png")
self.ce_pwd.place(x=width / 2 - 150, y=height * 0.50)
button_login = RoundedButton(base_frame, 250, 130 / 2.9, color, "images/button3.png", "LOGIN",font=("Lucida Grande", 14),
command=lambda: self.login_click(root))
button_login.place(x=width / 2 - 250 / 2, y=height * 0.70)
button_register = RoundedButton(base_frame, 250, 130 / 2.9, color, "images/button3.png", "REGISTER",font=("Lucida Grande", 14),
command=lambda: navigate_to_register(root))
button_register.place(x=width / 2 - 250 / 2, y=height * 0.85)
Here is our class CustomEntry:
class CustomEntry(tk.Canvas):
def __init__(self, parent, width, height, cornerradius, padding, color, text, icon_path):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=color)
self.width = width
self.height = height
self.cornerradius = cornerradius
self.padding = padding
self.color = color
original = Image.open(icon_path)
resized = original.resize((int(height * 35 / 100), int(height * 35 / 100)), Image.ANTIALIAS)
self.image = ImageTk.PhotoImage(resized) # Keep a reference, prevent GC
self.create_text(6, 7, anchor=W, font=font.Font(family="Lucida Grande", size=12, weight='bold'),text=text, fill="#000000")
self.create_image(10, height / 2 - self.image.width() / 2, image=self.image, anchor=NW)
self.create_line(5, height - 8, width - 5, height - 8, fill="#808080")
frame = Frame(parent,width=width * 86 / 100, height=height * 50 / 100, bg=color)
self.entry = Entry(frame, bg=color, bd=0, highlightthickness=0,font=font.Font(family="Lucida Grande", size=13, weight='normal'))
self.entry.place(relwidth=1, relheight=1, x=0, y=0)
self.create_window(width - width * 86 / 100 - 5, height / 2 - (height * 50 / 100) / 2, anchor=NW, window=frame)
self.update()
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
Here is our class CustomEntryPWD:
class CustomEntryPWD(tk.Canvas):
def __init__(self, parent, width, height, cornerradius, padding, color, text, icon_path):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=color)
self.width = width
self.height = height
self.cornerradius = cornerradius
self.padding = padding
self.color = color
original = Image.open(icon_path)
resized = original.resize((int(height * 35 / 100), int(height * 35 / 100)), Image.ANTIALIAS)
self.image = ImageTk.PhotoImage(resized) # Keep a reference, prevent GC
# self.color_text = "white"
self.create_text(6, 7, anchor=W, font=font.Font(family="Lucida Grande", size=12, weight='bold'),
text=text, fill="#000000")
self.create_image(10, height / 2 - self.image.width() / 2, image=self.image, anchor=NW)
self.create_line(5, height - 8, width - 5, height - 8, fill="#808080")
frame = Frame(width=width * 86 / 100, height=height * 50 / 100, bg=color)
# frame.place(x=0, y=0, width=100, height=50)
self.entry = Entry(frame, bg=color, bd=0, highlightthickness=0,
font=font.Font(family="Lucida Grande", size=13, weight='normal'), show="*")
self.entry.place(relwidth=1, relheight=1, x=0, y=0)
self.create_window(width - width * 86 / 100 - 5, height / 2 - (height * 50 / 100) / 2, anchor=NW, window=frame)
self.update()
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
Now UI complete, here's logic for login user who exist in quiz_db.db database.
def login_click(self, root):
db = Util.connect_db()
cursor = db.cursor()
user_email_id = self.ce_username.entry.get()
user_pass = self.ce_pwd.entry.get()
cursor.execute('SELECT user_password, user_name FROM user_data WHERE user_email_id IS ?', (user_email_id,))
sql_output = cursor.fetchall()
user_list = [item[0] for item in sql_output]
key = "ADMIN_ID"
cursor.execute('SELECT value FROM system_setting WHERE key IS ?', (key,))
rows = cursor.fetchone()
admin_id = rows[0]
key = "ADMIN_PWD"
cursor.execute('SELECT value FROM system_setting WHERE key IS ?', (key,))
rows = cursor.fetchone()
admin_pwd = rows[0]
if len(user_list) > 0:
if user_pass == user_list[0]:
AppConstant.USER_ID = user_email_id
AppConstant.USER_NAME = [item[1] for item in sql_output][0]
key_is_login = "IS_LOGIN"
cursor.execute("UPDATE system_setting SET value = ? WHERE key = ?",
(TRUE, key_is_login,))
key_id = "LOGIN_ID"
cursor.execute("UPDATE system_setting SET value = ? WHERE key = ?",
(user_email_id, key_id,))
key_pwd = "LOGIN_PWD"
cursor.execute("UPDATE system_setting SET value = ? WHERE key = ?",
(user_pass, key_pwd,))
db.commit()
self.ce_username.entry.delete(0, 'end')
self.ce_pwd.entry.delete(0, 'end')
navigate_to_dashboard(root)
elif admin_id == user_email_id and admin_pwd == user_pass:
root.destroy()
else:
messagebox.showerror(title="Error", message="Incorrect Id or Password")
Here's logic for check Loged or Not , Also show Loged user Name.
def check_login(root):
db = Util.connect_db()
cursor = db.cursor()
key_id = "IS_LOGIN"
cursor.execute('SELECT value FROM system_setting WHERE key IS ?', (key_id,))
rows = cursor.fetchone()
is_login = rows[0]
if is_login == "1":
key_id = "LOGIN_ID"
cursor.execute('SELECT value FROM system_setting WHERE key IS ?', (key_id,))
rows = cursor.fetchone()
user_id = rows[0]
AppConstant.USER_ID = user_id
cursor.execute('SELECT user_name FROM user_data WHERE user_id IS ?', (user_id,))
rows = cursor.fetchone()
staff_name = rows[0]
AppConstant.USER_NAME = staff_name
navigate_to_dashboard(root)
When we want go back to DashBoard and "Register" Button for new user.
#Go to Dashboard
def navigate_to_dashboard(root):
root.withdraw()
MainWindow(root)
#Go to Registration page
def navigate_to_register(root):
root.withdraw()
AddUser(root)
