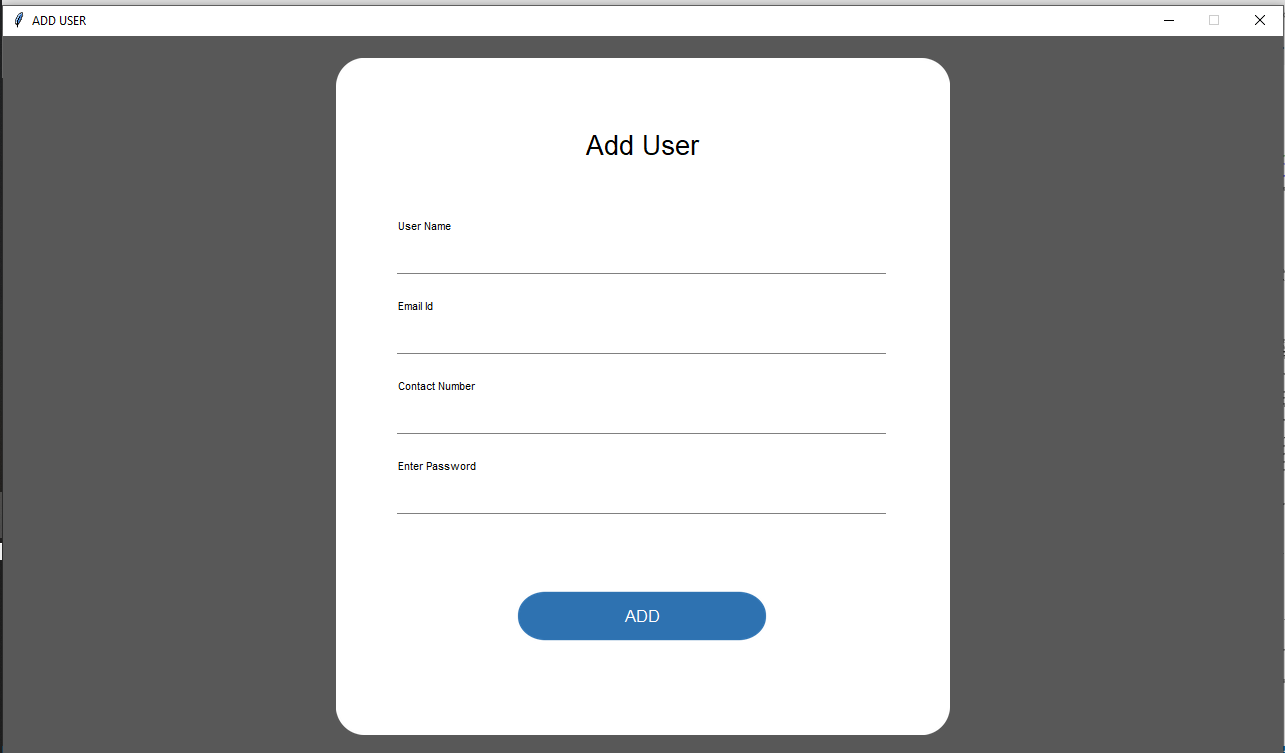

Add User
self.root = tk.Toplevel()
self.root.title("ADD USER")
self.root.configure(bg="#585858")
self.root.resizable(width=0, height=0)
win_width = 1280
win_height = int(1280 * 56.25 / 100)
self.root.geometry(str(win_width) + "x" + str(win_height))
Util.center(self.root)
# Get screen size
screen_width = self.winfo_screenwidth()
screen_height = self.winfo_screenheight()
Util.set_font_size(screen_width, screen_height, win_width, win_height)
# White window frame credential
self.width = win_width * 48 / 100
self.height = win_height * 94 / 100
After creation of window, we will add a canvas background.
bg_canvas = RoundBackgroundFrame(self.root, self.width, self.height, padding, corner_radius, self.color, "#585858")
bg_canvas.place(width=self.width, height=self.height,x=win_width / 2 - self.width / 2, y=win_height / 2 - self.height / 2)
class RoundBackgroundFrame(tk.Canvas):
def __init__(self, parent, width, height, padding, cornerradius, color, bg):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)
self.width = width
self.height = height
self.padding = padding
self.cornerradius = cornerradius
self.color = color
original = Image.open("images/corner.png")
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_t = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_l_b = ImageTk.PhotoImage(resized)
original = original.rotate(90, expand=0)
resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
self.image_r_b = ImageTk.PhotoImage(resized)
self.shape(width, height, padding, cornerradius, color)
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
def shape(self, width, height, padding, cornerradius, color):
self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
padding + cornerradius, padding, width - padding - cornerradius, padding,
width - padding, cornerradius + padding, width - padding,
height - cornerradius - padding, width - padding - cornerradius, height - padding,
padding + cornerradius, height - padding), fill=color, outline=color)
self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
self.create_image(0, 0, image=self.image_l_t, anchor=NW)
self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b, anchor=NW)
self.width = self.width * 98 / 100
self.height = self.height * 96 / 100
self.base_frame = Frame(self.root, width=self.width, height=self.height, bg=self.color)
bg_canvas.create_window(self.width / 100, self.height * 2 / 100, anchor=NW, window=self.base_frame)
# Add Heading Name
add_heading_label(self.base_frame, self.color, AppConstant.FONT_SIZE, self.height, self.width)
def add_heading_label(base_frame, color, font_size, height, width):
label_heading = Label(base_frame, text="Add User", anchor=CENTER, bg=color,font=("Lucida Grande", font_size + 6))
label_heading.place(width=width * 90 / 100, height=height * 7 / 100,x=width * 5 / 100, y=height * 8 / 100)
# Add Regisstration UI
self.user_name = CustomEntrySimple(self.base_frame, 500, 60, ("Lucida Grande", AppConstant.FONT_SIZE - 6),
self.color, "User Name")
self.user_name.place(x=50, y=150)
self.user_email_id = CustomEntrySimple(self.base_frame, 500, 60,("Lucida Grande", AppConstant.FONT_SIZE - 6),
self.color, "Email Id")
self.user_email_id.place(x=50, y=230)
self.user_contact_number = CustomEntrySimple(self.base_frame, 500, 60,("Lucida Grande", AppConstant.FONT_SIZE - 6),
self.color, "Contact Number")
self.user_contact_number.place(x=50, y=310)
self.user_password = CustomEntrySimple(self.base_frame, 500, 60,("Lucida Grande", AppConstant.FONT_SIZE - 6),
self.color, "Enter Password")
self.user_password.place(x=50, y=390)
self.add_button = RoundedButton(self.base_frame, 250, 130 / 2.56, self.color, "images/button33.png","ADD",font=("Lucida Grande", AppConstant.FONT_SIZE - 2),
command=lambda: self.add_user_click(*args))
self.add_button.place(x=175, y=self.height * 0.80)
Here is our class CustomEntrySimple:
class CustomEntrySimple(tk.Canvas):
def __init__(self, parent, width, height, font, color, text):
tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=color)
self.width = width
self.height = height
self.color = color
self.create_text(6, 5, anchor=W, font=font, text=text, fill="#000000")
self.create_line(5, height - 8, width - 5, height - 8, fill="#808080")
frame = Frame(parent,width=width * 95 / 100, height=height * 50 / 100, bg=color)
self.entry = Entry(frame, bg=color, bd=0, highlightthickness=0, font=font)
self.entry.place(relwidth=1, relheight=1, x=0, y=0)
self.create_window(6, height / 2 - (height * 50 / 100) / 2, anchor=NW, window=frame)
self.update()
(x0, y0, x1, y1) = self.bbox("all")
width = (x1 - x0)
height = (y1 - y0)
self.configure(width=width, height=height)
Now UI complete, here is logic of add user in database when click "Add" Button.
def add_user_click(self, *args):
var = ""
user_name = ""
user_email_id = ""
user_contact_number = ""
user_password = ""
is_name_entered = False
is_email_id_entered = False
is_contact_number_entered = False
is_password_entered = False
# name
if self.user_name.entry.get() == "" or self.user_name.entry.get() == " ":
var += "Book Count Should not be empty, "
else:
user_name = self.user_name.entry.get()
is_name_entered = True
# email
if self.user_email_id.entry.get() == "" or self.user_email_id.entry.get() == " ":
var += "Book Name Should not be empty, "
else:
user_email_id = self.user_email_id.entry.get()
is_email_id_entered = True
# contact number
if self.user_contact_number.entry.get() == "" or self.user_contact_number.entry.get() == " ":
var += "Author Name Should not be empty, "
else:
user_contact_number = self.user_contact_number.entry.get()
is_contact_number_entered = True
# password
if self.user_password.entry.get() == "" or self.user_password.entry.get() == " ":
var += "Book Price Should not be empty, "
else:
user_password = self.user_password.entry.get()
is_password_entered = True
if is_name_entered and is_email_id_entered and is_contact_number_entered and is_password_entered:
conn = Util.connect_db()
cursor = conn.cursor()
cursor.execute(
'INSERT INTO user_data(user_name, user_contact_no, user_email_id, user_password) VALUES(?,?,?,?)',
(user_name, user_contact_number, user_email_id, user_password))
conn.commit()
messagebox.showinfo("Success", "User has been added successfully")
self.user_name.entry.delete(0, 'end')
self.user_email_id.entry.delete(0, 'end')
self.user_contact_number.entry.delete(0, 'end')
self.user_password.entry.delete(0, 'end')
self.user_name.entry.focus()
# self.on_closing()
self.root.destroy()
args[0].deiconify()
else:
messagebox.showerror("showerror", var)
Here is logic for get user id.
def get_user_id(s_id):
user_id = "USR"
count = 0
if s_id == 0:
count = 1
while s_id > 0:
count = count + 1
s_id = s_id // 10
count = 3 - count
while count > 0:
user_id = user_id + "0"
count = count - 1
return user_id
At last we will manage closing of window
def on_closing():
root.destroy()
args[0].deiconify()
root.protocol("WM_DELETE_WINDOW", on_closing)
