Login Page

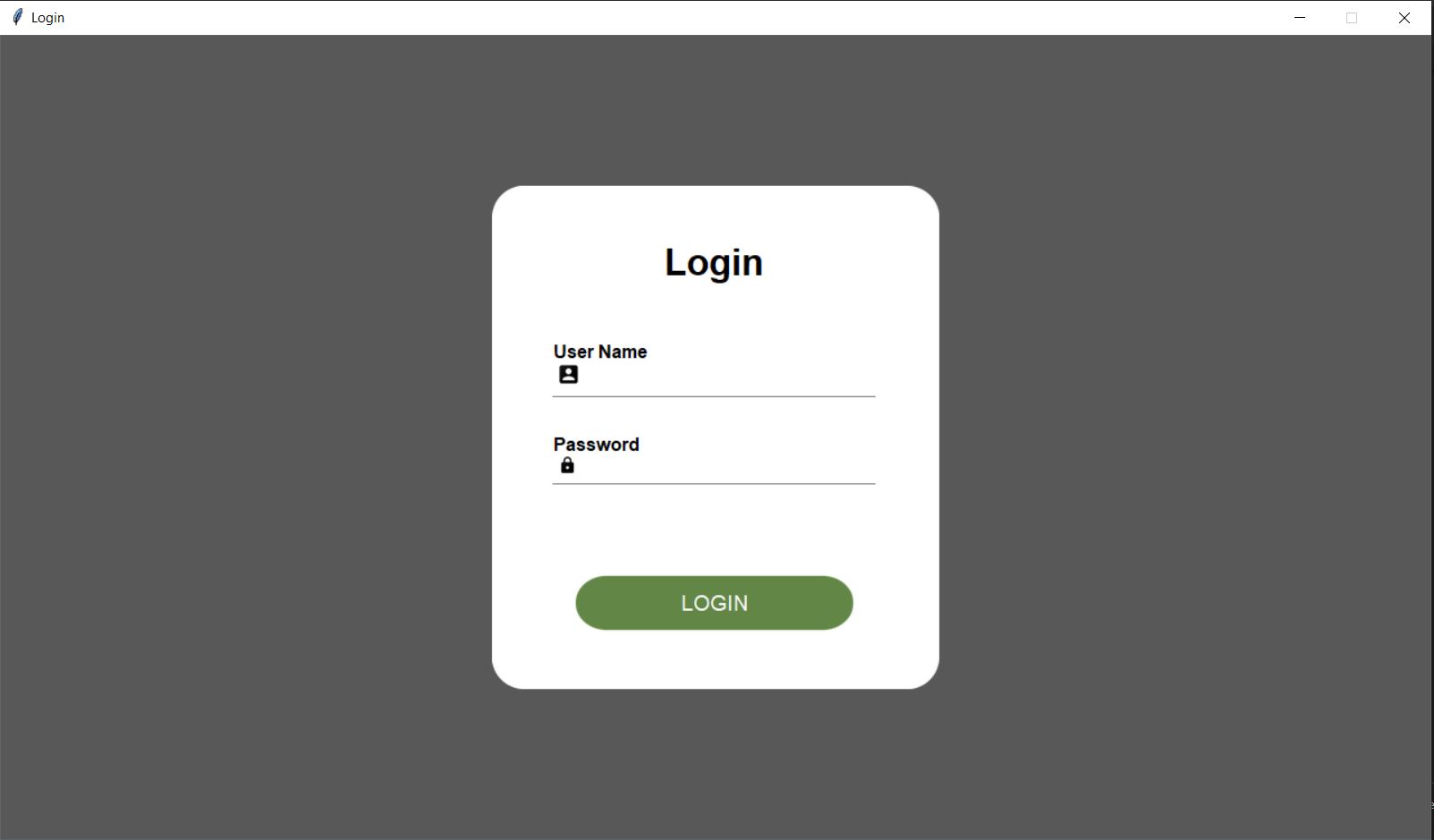

Above UI we are going to create by Tkinter for login page in our Inventory management system desktop application. For that first we create a window and configure its title, size and color. Here we are creating a window at Top Level so we can add this window at the top of any other window.


        root = self.winfo_toplevel()
        root.title("Login")
        root.configure(bg="#585858")
        root.resizable(width=0, height=0)
        win_width = 1280
        print(1280 * 56.25 / 100)
        win_height = int(1280 * 56.25 / 100)
        root.geometry(str(win_width) + "x" + str(win_height))

        root.attributes('-alpha', 0.0)
        Util.center(root)
        root.attributes('-alpha', 1.0)

        check_login(root)

        width = 400
        height = 450
        cornerradius = 40
        padding = 0
        color = "#FFFFFF"


After creation of window, we will add a canvas background.


    bg_canvas = RoundBackgroundFrame(root, width, height, padding, cornerradius, color, "#585858")
    bg_canvas.place(width=width, height=height, x=win_width / 2 - width / 2, y=win_height / 2 - height / 2)


    class RoundBackgroundFrame(tk.Canvas):

        def __init__(self, parent, width, height, padding, cornerradius, color, bg):
            tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=bg)

            original = Image.open("images/corner.png")
            resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
            self.image_r_t = ImageTk.PhotoImage(resized)

            original = original.rotate(90, expand=0)
            resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
            self.image_l_t = ImageTk.PhotoImage(resized)

            original = original.rotate(90, expand=0)
            resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
            self.image_l_b = ImageTk.PhotoImage(resized)

            original = original.rotate(90, expand=0)
            resized = original.resize((int(40), int(40)), Image.ANTIALIAS)
            self.image_r_b = ImageTk.PhotoImage(resized)

            self.shape(width, height, padding, cornerradius, color)
            (x0, y0, x1, y1) = self.bbox("all")
            width = (x1 - x0)
            height = (y1 - y0)
            self.configure(width=width, height=height)

        def shape(self, width, height, padding, cornerradius, color):
            self.create_polygon((padding, height - cornerradius - padding, padding, cornerradius + padding,
                        padding + cornerradius, padding, width - padding - cornerradius, padding,
                        width - padding, cornerradius + padding, width - padding,
                        height - cornerradius - padding, width - padding - cornerradius, height - padding,
                        padding + cornerradius, height - padding), fill=color, outline=color)

            self.create_image(width - self.image_r_t.width(), 0, image=self.image_r_t, anchor=NW)
            self.create_image(0, 0, image=self.image_l_t, anchor=NW)
            self.create_image(0, height - self.image_l_b.width(), image=self.image_l_b, anchor=NW)
            self.create_image(width - self.image_r_b.width(), height - self.image_r_b.width(), image=self.image_r_b,anchor=NW)



Once your window is created with custom background, we will create a frame with some reduced dimensions. And also add Text Label For ("Login")



        width = width * 92 / 100
        height = height * 92 / 100
        base_frame = Frame(width=width, height=height, bg=color)
        bg_canvas.create_window(width * 4 / 100, height * 4 / 100, anchor=NW, window=base_frame)
        label_login = Label(base_frame, text="Login", font=font.Font(family="Lucida Grande", size=25, weight='bold'),bg=color)
        label_login.place(width=width - 20, x=10, y=height * 0.07)




So we are done with all frame and background UI. Now we will add all the entry box and submit button in action frame to add book.


    # Login UI
       self.ce_username = CustomEntry(base_frame, 300, 55, 10, 2, color, "User Name", "images/ic_user_black.png")
        self.ce_username.place(x=width / 2 - 150, y=height * 0.30)

        self.ce_pwd = CustomEntryPWD(base_frame, 300, 50, 10, 2, color, "Password", "images/ic_lock_black.png")
        self.ce_pwd.place(x=width / 2 - 150, y=height * 0.50)

        button = RoundedButton(base_frame, 250, 130 / 2.56, color, "images/button3.png", "LOGIN",
                               font=("Lucida Grande", 14),
                               command=lambda: self.login_click(root))
        button.place(x=width / 2 - 250 / 2, y=height * 0.80)




Here is our class CustomEntrySimple:


    class CustomEntrySimple(tk.Canvas):

        def __init__(self, parent, width, height, font, color, text):
            tk.Canvas.__init__(self, parent, borderwidth=0, relief="flat", highlightthickness=0, bg=color)

            self.width = width
            self.height = height
            self.color = color

            self.create_text(6, 5, anchor=W, font=font, text=text, fill="#000000")
            self.create_line(5, height - 8, width - 5, height - 8, fill="#808080")

            frame = Frame(parent,width=width * 95 / 100, height=height * 50 / 100)
            self.entry = Entry(frame, bg=color, bd=0, highlightthickness=0, font=font)

            self.entry.place(relwidth=1, relheight=1, x=0, y=0)

            self.create_window(6, height / 2 - (height * 50 / 100) / 2, anchor=NW, window=frame)
            self.update()

            (x0, y0, x1, y1) = self.bbox("all")
            width = (x1 - x0)
            height = (y1 - y0)
            self.configure(width=width, height=height)


We have done with all UI part now we will start functionality part.



    # Login Click

    def login_click(self, root):

        db = Util.connect_db()
        cursor = db.cursor()

        staff_id = self.ce_username.entry.get()
        staff_pass = self.ce_pwd.entry.get()

        cursor.execute('SELECT staff_pass, staff_name FROM staff WHERE staff_id IS ?', (staff_id,))
        sql_output = cursor.fetchall()
        print(sql_output)
        staff_list = [item[0] for item in sql_output]

        key = "ADMIN_ID"
        cursor.execute('SELECT value FROM system_info WHERE key IS ?', (key,))
        rows = cursor.fetchone()

        admin_id = rows[0]

        key = "ADMIN_PASS"
        cursor.execute('SELECT value FROM system_info WHERE key IS ?', (key,))
        rows = cursor.fetchone()
        print(rows[0])
        admin_pwd = rows[0]

        if len(staff_list) > 0:
            if staff_pass == staff_list[0]:
                AppConstant.STAFF_ID = staff_id
                AppConstant.STAFF_NAME = [item[1] for item in sql_output][0]

                key_is_logined = "IS_LOGINED"
                cursor.execute("UPDATE system_info SET value = ? WHERE key = ?",
                               (TRUE, key_is_logined,))

                key_id = "LOGINED_ID"
                cursor.execute("UPDATE system_info SET value = ? WHERE key = ?",
                               (staff_id, key_id,))

                key_pwd = "LOGINED_PWD"
                cursor.execute("UPDATE system_info SET value = ? WHERE key = ?",
                               (staff_pass, key_pwd,))

                db.commit()

                self.ce_username.entry.delete(0, 'end')
                self.ce_pwd.entry.delete(0, 'end')

                navigate_to_billing(root)

        elif admin_id == staff_id and admin_pwd == staff_pass:
            navigate_to_dashboard(root)

        else:
            messagebox.showerror(title="Error", message="Incorrect Id or Password")




We have created a Database named "invertory.db", lets connect that database and put that code in seperate class "Util" because we are going to use it multiple time in our project.


    class Util:

        @staticmethod
        def connect_db():
            db = None
            try:
                db = sql.connect("inventry.db")
                return db
            except sql.Error as error:
                print("Failed to insert data into sqlite table", error)



    def navigate_to_dashboard(root):
    root.withdraw()
    Dashboard(root)
    #root.mainloop()

def navigate_to_billing(root):
    root.withdraw()
    Billing(root)

def check_login(root):
    db = Util.connect_db()
    cursor = db.cursor()

    key_id = "IS_LOGINED"
    cursor.execute('SELECT value FROM system_info WHERE key IS ?', (key_id,))
    rows = cursor.fetchone()
    is_logined = rows[0]

    if is_logined == "1":
        key_id = "LOGINED_ID"
        cursor.execute('SELECT value FROM system_info WHERE key IS ?', (key_id,))
        rows = cursor.fetchone()
        staff_id = rows[0]
        AppConstant.STAFF_ID = staff_id

        cursor.execute('SELECT staff_name FROM staff WHERE staff_id IS ?', (staff_id,))
        rows = cursor.fetchone()
        staff_name = rows[0]
        print(staff_name)

        AppConstant.STAFF_NAME = staff_name

        navigate_to_billing(root)
