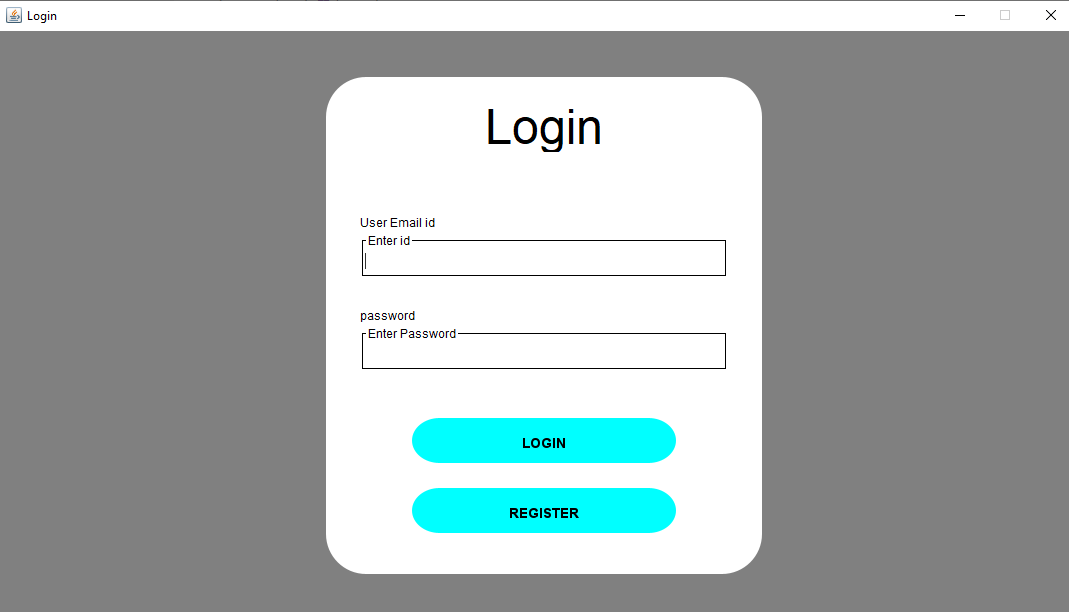

Login
// frame with control options
loginFrame = new JFrame();
Util.centeredFrame(loginFrame, windowWidth, windowHeight, "Login");
loginFrame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
loginFrame.setResizable(false);
Container frameContainer = loginFrame.getContentPane();
frameContainer.setBackground(Color.gray);
// Changeable According to What size of screen You Want?
int containerWidth = windowWidth*40/100;
int containerHeight = windowHeight *80/100;
int panelWidth = containerWidth*94/100;
int panelHeight = containerHeight*94/100;
int posX = windowWidth / 2 - panelWidth / 2;
int posY = windowHeight / 2 - panelHeight / 2 - frameControllerSize / 2;
// frame without control options
JPanel panel = new JPanel();
panel.setLayout(null);//new BorderLayout());
panel.setBackground(Color.WHITE);
panel.setSize(new Dimension(panelWidth,panelHeight));
panel.setLocation(posX, posY);
frameContainer.add(panel);
After creation of window, we will add a canvas background.
// for Rounded Background
posX = windowWidth / 2 - containerWidth / 2;
posY = windowHeight / 2 - containerHeight / 2 - frameControllerSize / 2;
JComponent jcomponent = new RoundedBackground(posX, posY, containerWidth, containerHeight);
jcomponent.setLayout(null);
frameContainer.add(jcomponent, BorderLayout.CENTER);
public class RoundedBackground extends JComponent {
private static final long serialVersionUID = 1L;
int width, height,setX,setY;
public RoundedBackground (int setX,int setY,int width, int height) {
this.width=width;
this.height=height;
this.setX=setX;
this.setY=setY;
setSize(width, height);
}
@Override
public void paint(Graphics g) {
Graphics2D g2 = (Graphics2D) g;
g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,RenderingHints.VALUE_ANTIALIAS_ON);
g2.setPaint(Color.white);
double x = setX;
double y = setY;
double w = width;
double h = height;
RoundRectangle2D round=new RoundRectangle2D.Double(x, y, w, h, 80, 80);
g2.fill(round);
}
}
Here we create Labels and Text Fields.
// for heading Layout
posY = panelHeight * 2/100;
Font font = new Font("Lucida", Font.PLAIN, 48);
JLabel label = new JLabel();
label.setText("Login");
label.setFont(font);
label.setForeground(Color.black);
label.setSize(new Dimension(panelWidth, panelHeight / 9));
label.setHorizontalAlignment(JLabel.CENTER);
label.setLocation(0, posY);
panel.add(label);
// user Name
int labelWidth = panelWidth*90/100;
posX = panelWidth*5/100;
posY = panelHeight *23/100;
font = new Font("Lucida",Font.PLAIN,12);
JLabel user_name=new JLabel();
user_name.setText("User Email id");
user_name.setBackground(Color.red);
user_name.setForeground(Color.black);
user_name.setFont(font);
user_name.setSize(new Dimension(labelWidth,panelHeight/10));
user_name.setLocation(posX, posY);
panel.add(user_name);
font = new Font("Lucida",Font.PLAIN,12);
Border borderline = BorderFactory.createLineBorder(Color.black);
TitledBorder tittleBorder = BorderFactory.createTitledBorder(borderline);
tittleBorder.setTitleJustification(TitledBorder.LEFT);
tittleBorder.setTitleFont(font);
tittleBorder.setTitle("Enter id");
tittleBorder.setTitleColor(Color.black);
posX = panelWidth*5/100;
posY = panelHeight *30/100;
myTextField = new JTextField();
myTextField.setSize(new Dimension(labelWidth,panelHeight/10));
myTextField.setLocation(posX, posY);
myTextField.setBorder(tittleBorder);
panel.add(myTextField);
panel.validate();
panel.repaint();
// User Password
posY = panelHeight *43/100;
JLabel password=new JLabel();
password.setText("password");
password.setBackground(Color.red);
password.setForeground(Color.black);
password.setFont(font);
password.setSize(new Dimension(labelWidth,panelHeight/10));
password.setLocation(posX, posY);
panel.add(password);
tittleBorder = BorderFactory.createTitledBorder(borderline);
tittleBorder.setTitleJustification(TitledBorder.LEFT);
tittleBorder.setTitleFont(font);
tittleBorder.setTitle("Enter Password");
tittleBorder.setTitleColor(Color.BLACK);
posY = panelHeight *50/100;
passwoerdField = new JPasswordField();
passwoerdField.setSize(new Dimension(labelWidth,panelHeight/10));
passwoerdField.setLocation(posX, posY);
passwoerdField.setBorder(tittleBorder);
panel.add(passwoerdField);
panel.validate();
panel.repaint();
Now We create "LOGIN" And its logic to login quiz system who already registered in database .
int btnWidth = panelWidth *65/100;
int btnHeight = panelHeight *10/100;
posX = panelWidth / 2 - btnWidth / 2;
posY = panelHeight *70/100;
font = new Font("Lucida", Font.BOLD, 14);
JButton loginBtn = new JButton("Login");
loginBtn.setBounds(posX,posY, btnWidth, btnHeight);
loginBtn.setFont(new java.awt.Font("Serif",1, 15));
loginBtn.setOpaque(false);
loginBtn.setContentAreaFilled(false);
loginBtn.setBorderPainted(true);
loginBtn.setBorder(new RoundedBorder(55, "LOGIN", true, Color.cyan, font));
loginBtn.setForeground(Color.black);
panel.add(loginBtn);
loginBtn.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent ae) {
String emailString = myTextField.getText();
String passString = passwoerdField.getText();
if(emailString.isEmpty() || passString.isEmpty()) {
JOptionPane.showMessageDialog(loginFrame, "Incorrect id or Password");
} else {
try {
Connection conn = null;
Statement stmt = null;
ResultSet rs = null;
try {
conn = SQLiteJDBCDriverConnection.connect();
stmt = conn.createStatement();
String sql = "SELECT user_name , user_password FROM user_data WHERE user_email_id = "+ "'"+ emailString +"'"+" AND user_password = "+"'"+passString+"'";
rs = stmt.executeQuery(sql);
if (rs.next() == false) {
JOptionPane.showMessageDialog(loginFrame, "Incorrect id or Password");
} else {
AppConstant.USER_NAME = rs.getString("user_name");
AppConstant.USER_PASSWORD =rs.getString("user_password");
myTextField.setText("");
passwoerdField.setText("");
moveToDashboard(loginFrame);
}
} catch (SQLException e) {
System.err.println("Got an exception! ");
System.err.println(e.getMessage());
} finally {
// you should release your resources here
if (rs != null) {
rs.close();
}
if (stmt != null) {
stmt.close();
}
if (conn != null) {
conn.close();
}
}
} catch (SQLException e) {
System.out.println(e.getMessage());
}
}
}
});
posY = panelHeight *85/100;
JButton addUserBtn = new JButton("REGISTER");
addUserBtn.setBounds(posX,posY, btnWidth, btnHeight);
addUserBtn.setOpaque(false);
addUserBtn.setContentAreaFilled(false);
addUserBtn.setBorderPainted(true);
addUserBtn.setBorder(new RoundedBorder(55, "REGISTER", true, Color.cyan, font));
addUserBtn.setForeground(Color.black);
panel.add(addUserBtn);
addUserBtn.addActionListener(new ActionListener() {
@Override
public void actionPerformed(ActionEvent e) {
moveToRegister(loginFrame);
}
});
//Go to Dashboard
private void moveToDashboard(Frame loginFrame) {
DashboardNew window = new DashboardNew(screenSize);
window.getFrame().setVisible(true);
loginFrame.dispose();
}
//Go to Registration page
private void moveToRegister(Frame loginFrame) {
AddUser window = new AddUser(screenSize);
window.getFrame().setVisible(true);
loginFrame.dispose();
}
